Fail-Safe Mode

When this malfunction is detected, the ECM enters fail-safe mode and the MIL lights up. See Fig 1 .

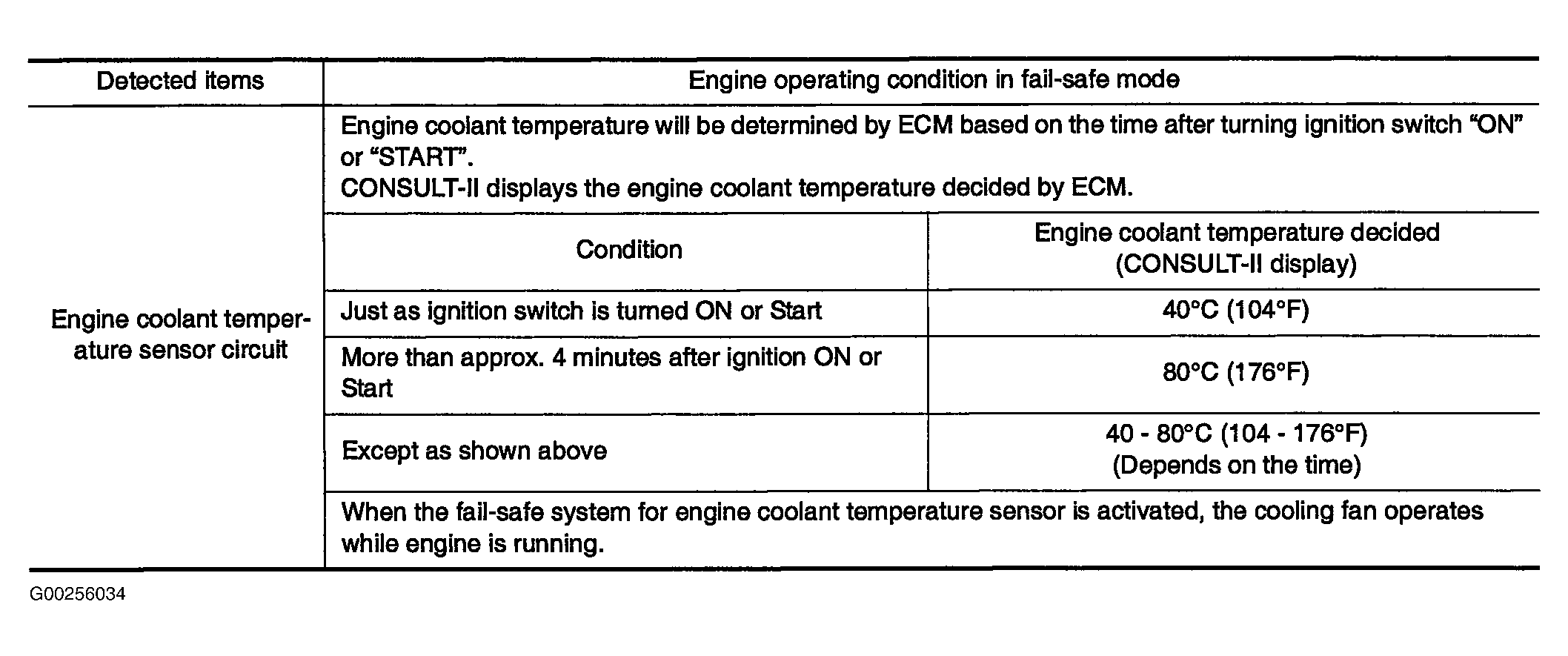

Fig 1: DTCs P0117 & P0118 Fail-Safe Mode

G00256034

Courtesy of NISSAN MOTOR CO., U.S.A.
