Circuit Identification

For circuit identification, see Fig 1 .

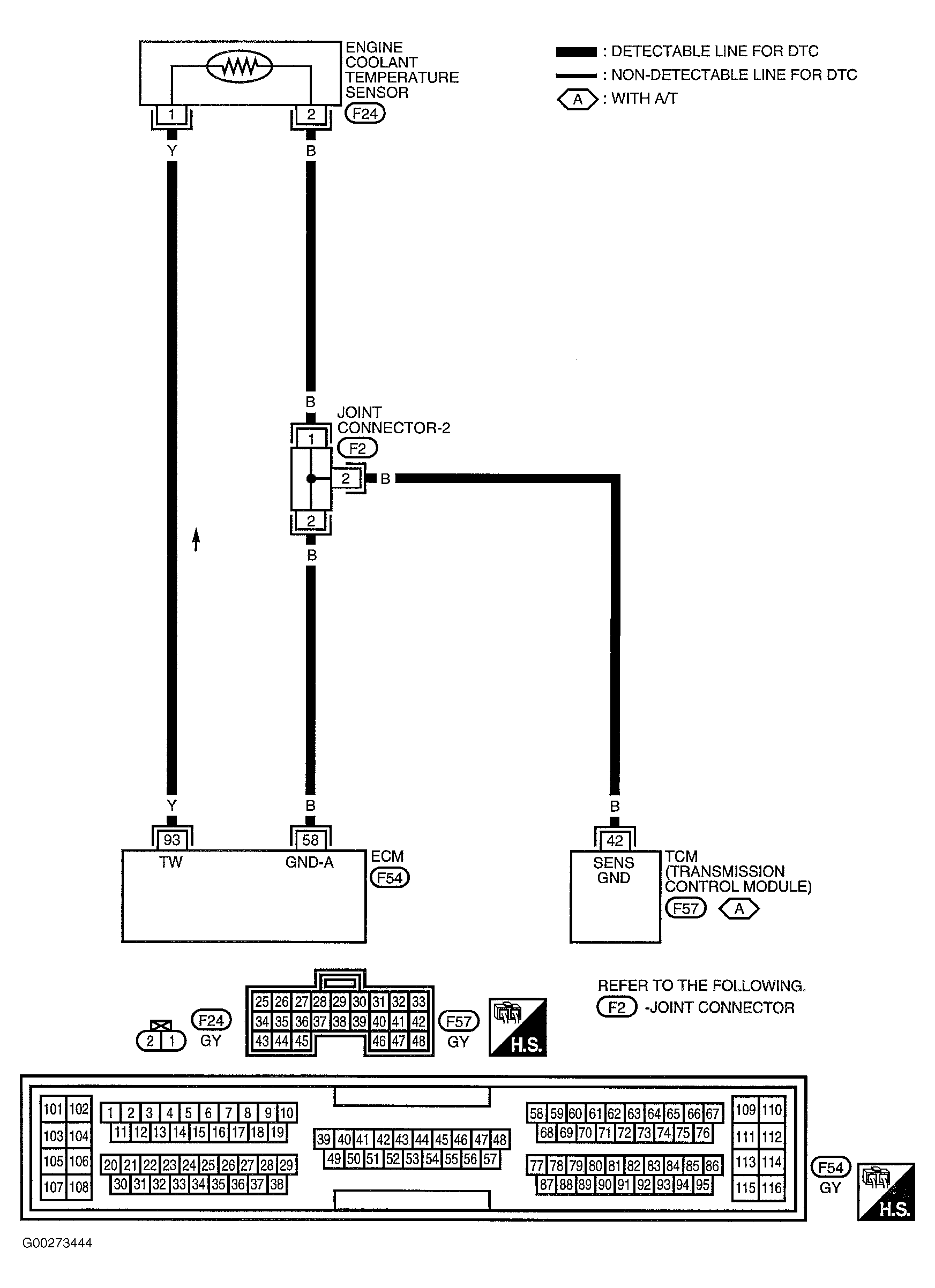

Fig 1: DTCs P0117 & P0118 ECT Sensor Circuit Diagram
G00273444Courtesy of NISSAN MOTOR CO., U.S.A.
