On Board Diagnosis Logic

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

For on board diagnosis logic, see Fig 1 .

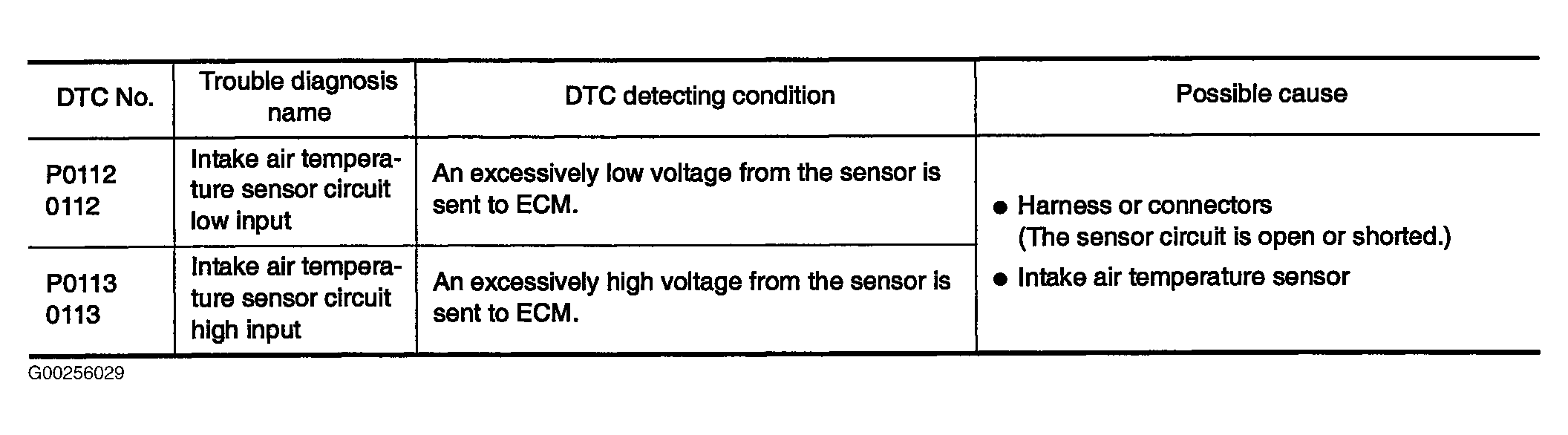

Fig 1: DTCs P0112 & P0113 On Board Diagnosis Logic
G00256029Courtesy of NISSAN MOTOR CO., U.S.A.
