Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 3

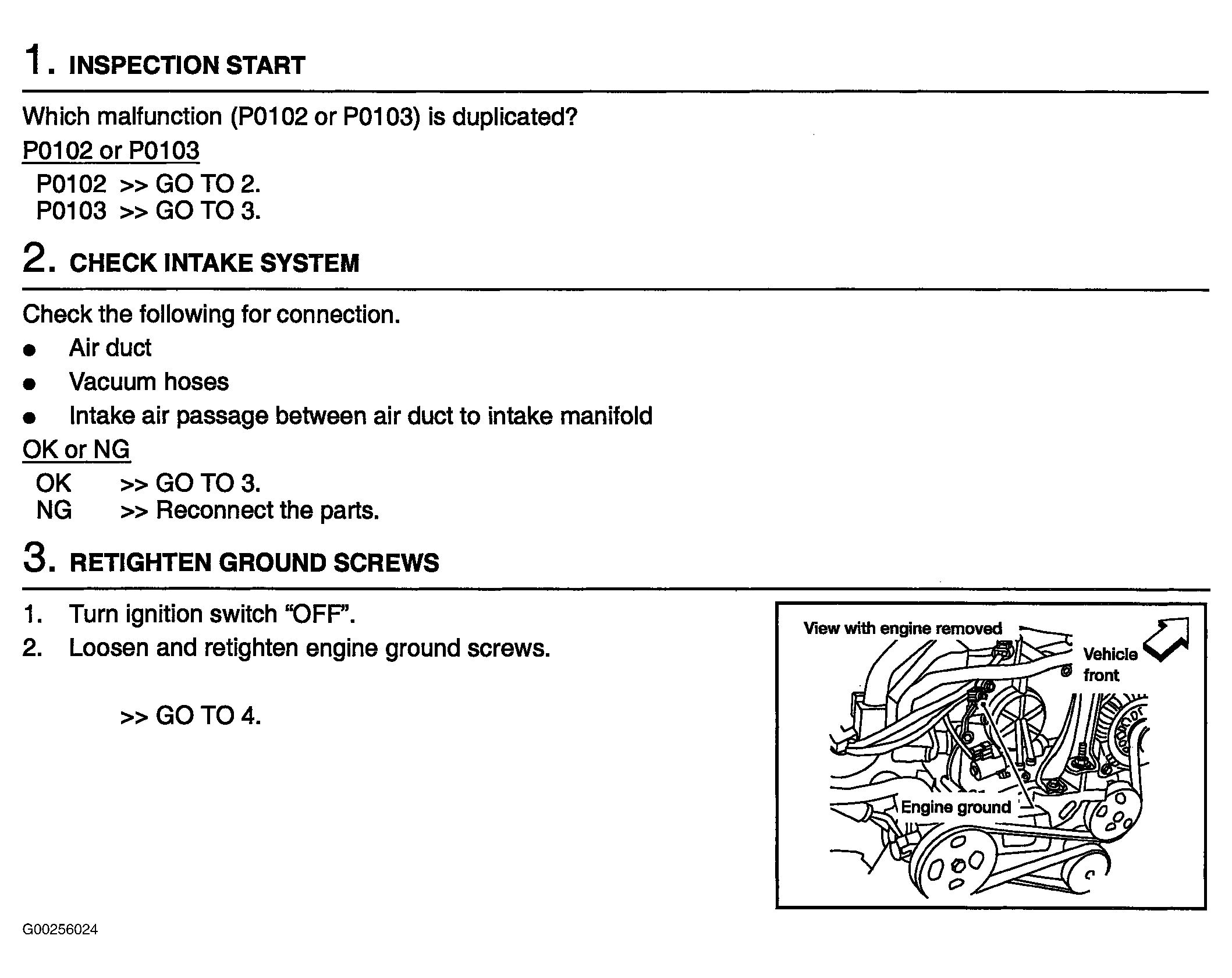

Fig 1: DTCs P0102 & P0103 Diagnostic Procedure (Steps 1-3)
G00256024Courtesy of NISSAN MOTOR CO., U.S.A.

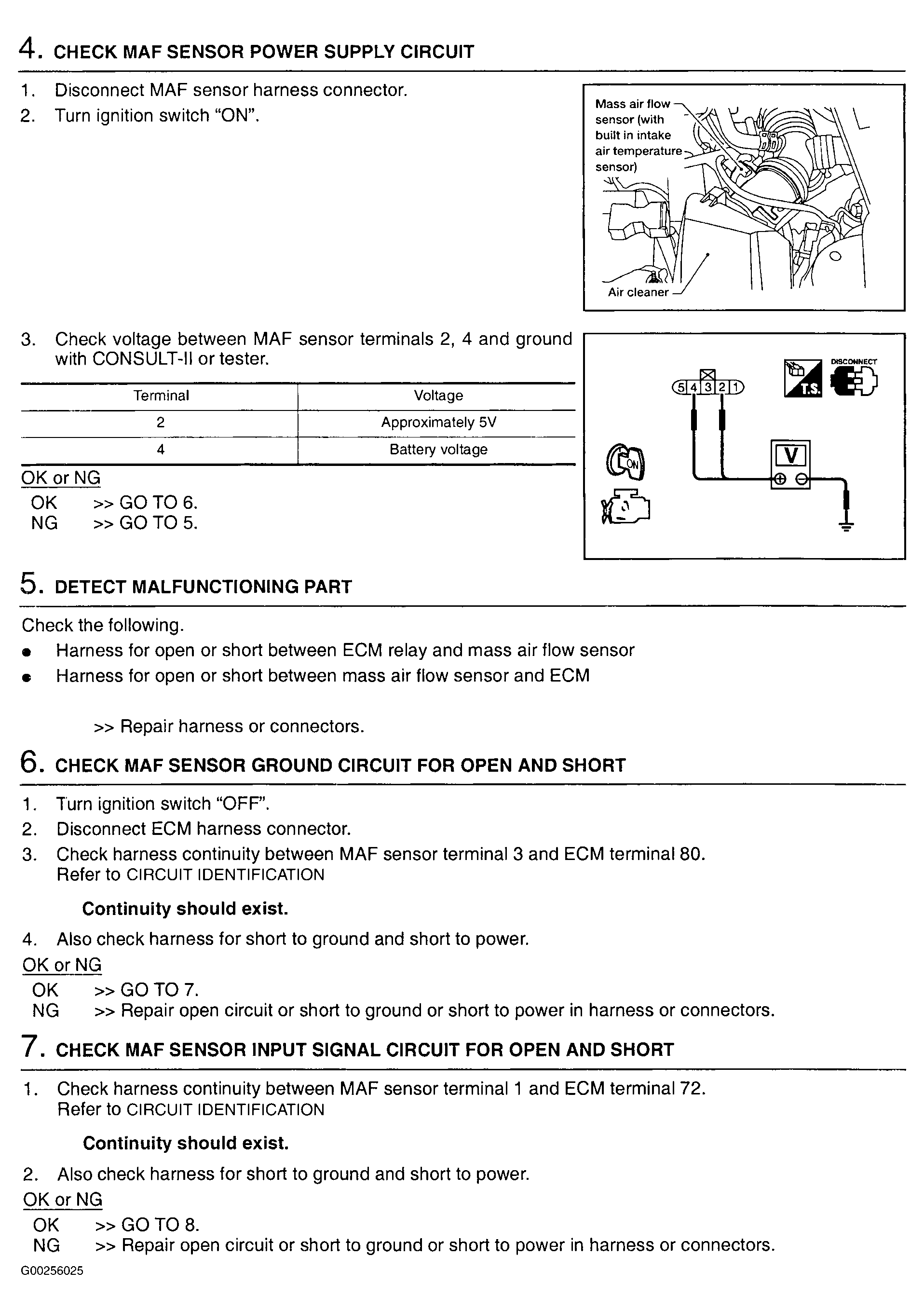

Fig 2: DTCs P0102 & P0103 Diagnostic Procedure (Steps 4-7)
G00256025Courtesy of NISSAN MOTOR CO., U.S.A.

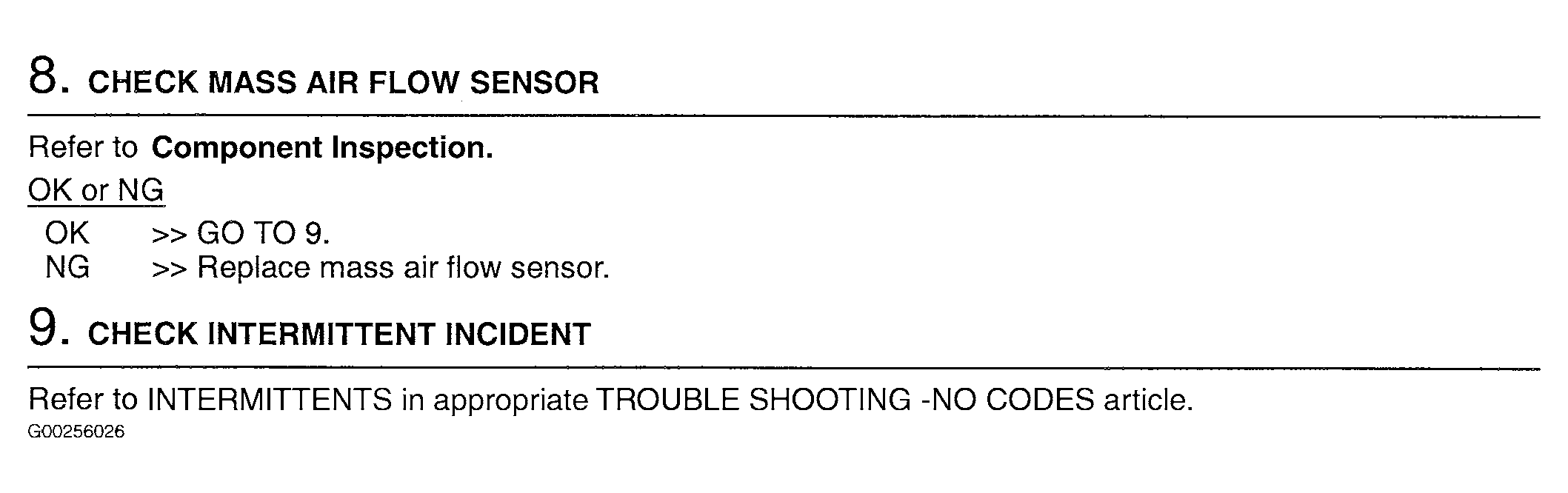

Fig 3: DTCs P0102 & P0103 Diagnostic Procedure (Steps 8 & 9)
G00256026Courtesy of NISSAN MOTOR CO., U.S.A.
