DTC Confirmation Procedure

NOTE: If DTC confirmation procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

For DTC confirmation procedure, see Fig 1 .

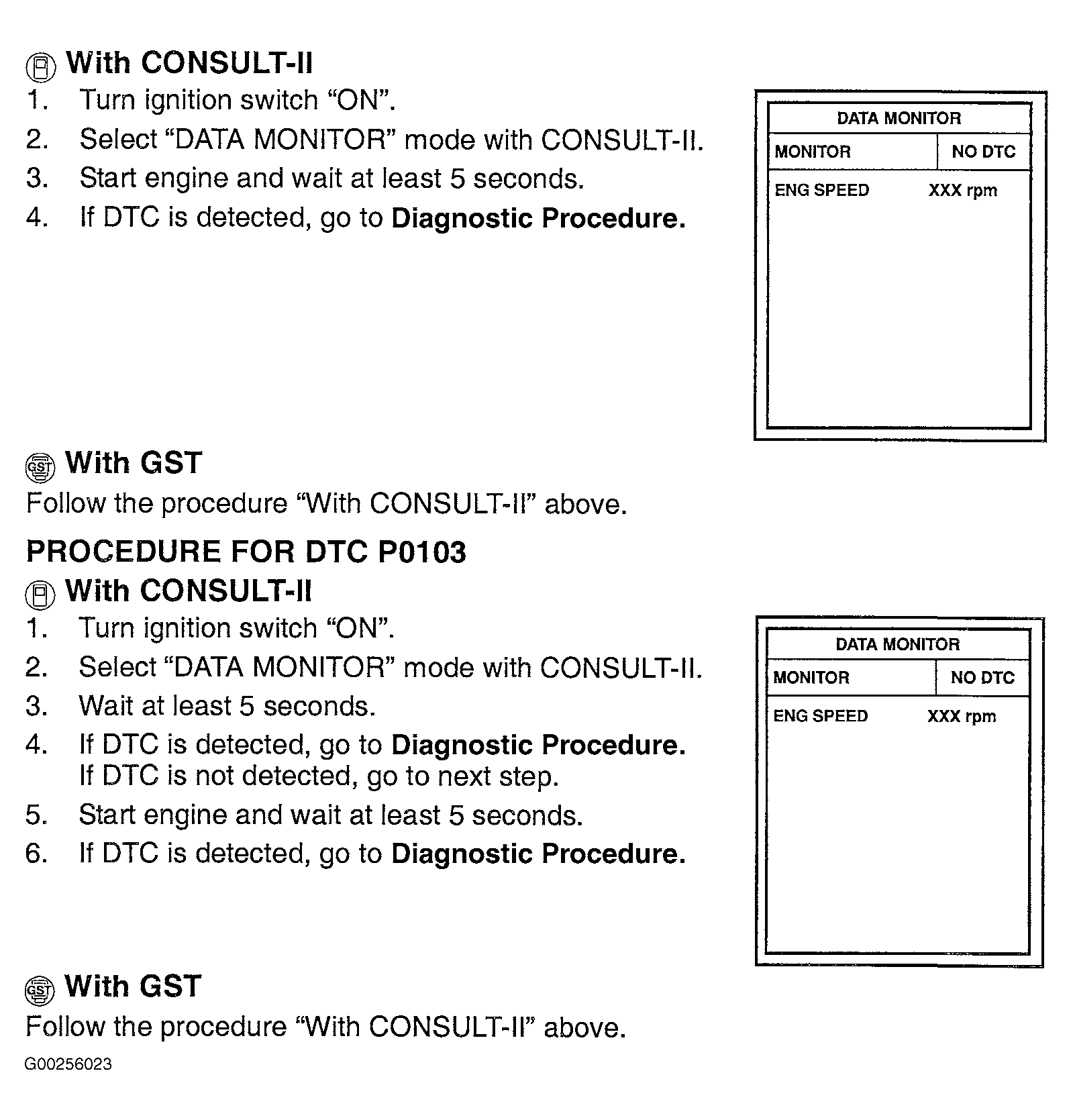

Fig 1: DTCs P0102 & P0103 Confirmation Procedure
G00256023Courtesy of NISSAN MOTOR CO., U.S.A.
