CONSULT-II Reference Values

For CONSULT-II reference values, see Fig 1 .

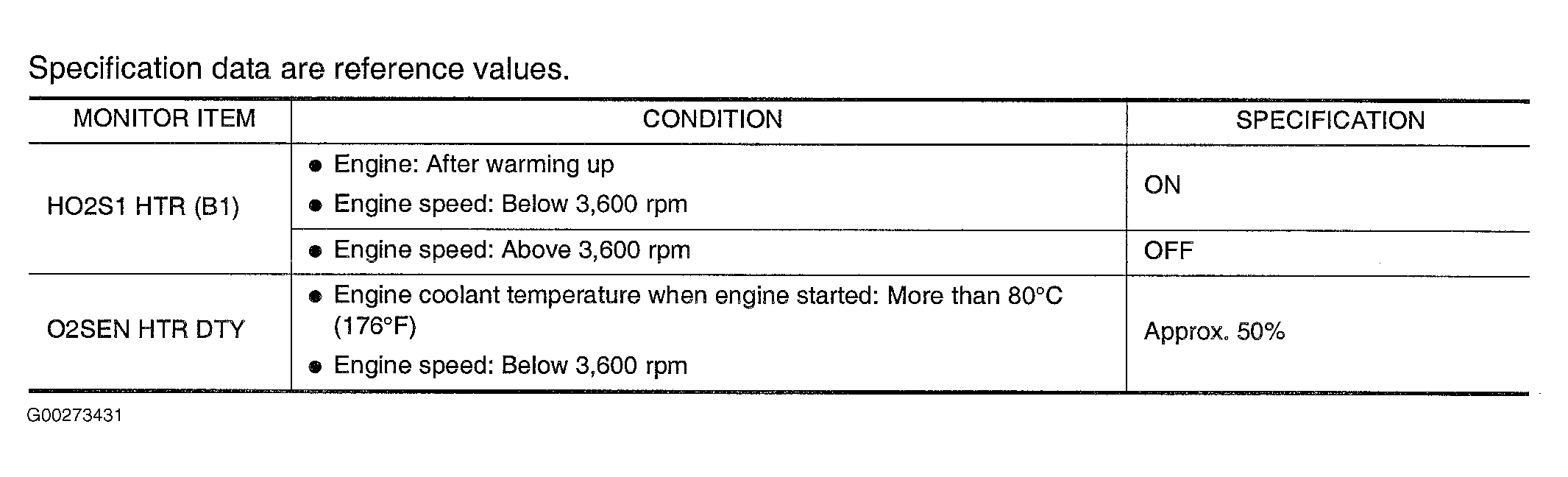

Fig 1: DTCs P0031 & P0032 CONSULT-II Reference Value In Data Monitor Mode

G00273431

Courtesy of NISSAN MOTOR CO., U.S.A.
