Front LH Door Unlock Sensor Check

With CONSULT-II

1. Select "DATA MONITOR" mode in "INT LAMP" with CONSULT-II.
2. Check front LH door unlock sensor ("LOCK SIG DR") in "DATA MONITOR" mode.
   Fig 1: Checking Front LH Door Unlock Sensor Input Signal With CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between smart entrance control unit harness connector terminal 36 and ground.

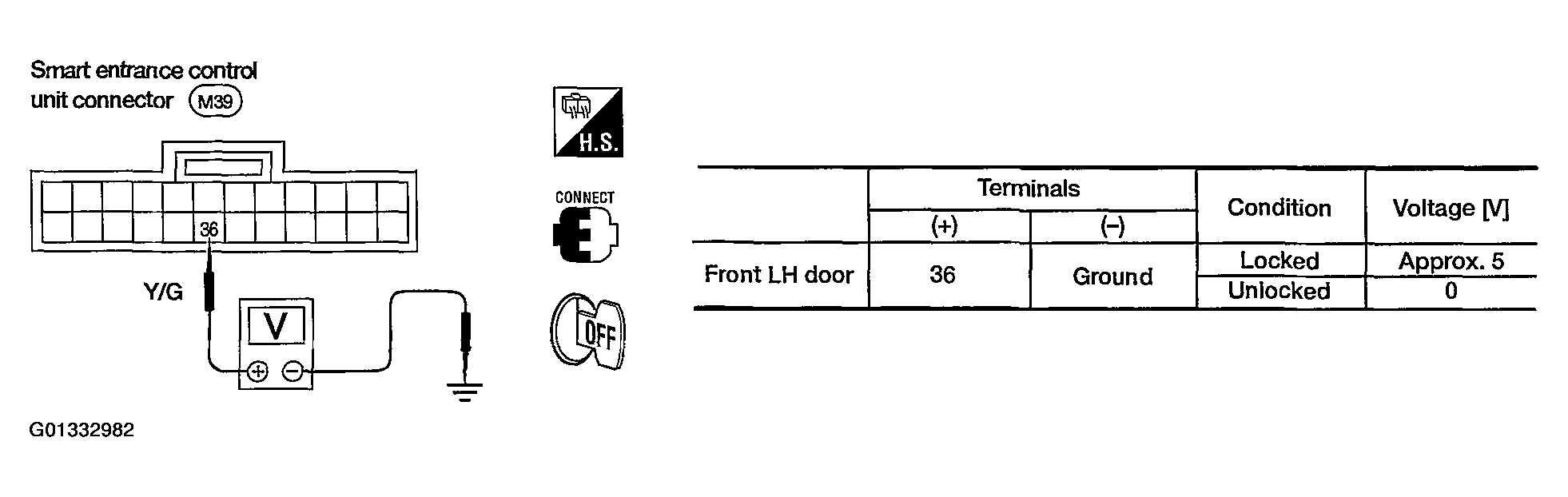

Fig 2: Checking Front LH Door Unlock Sensor Input Signal Without CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "FIG. 2  ".

OK or NG

OK : Door lock/unlock sensor is OK.

NG : GO TO 2.

1. Disconnect front LH door unlock sensor harness connector.
2. Check continuity between door unlock sensor terminals.
   Fig 3: Checking Front LH Door Unlock Sensor

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Check the following.

• Door unlock sensor ground circuit
• Harness for open or short between smart entrance control unit and door unlock sensor

NG : Replace door unlock sensor.
