A/T Electrical Parts Location
A/T Electrical Parts Location

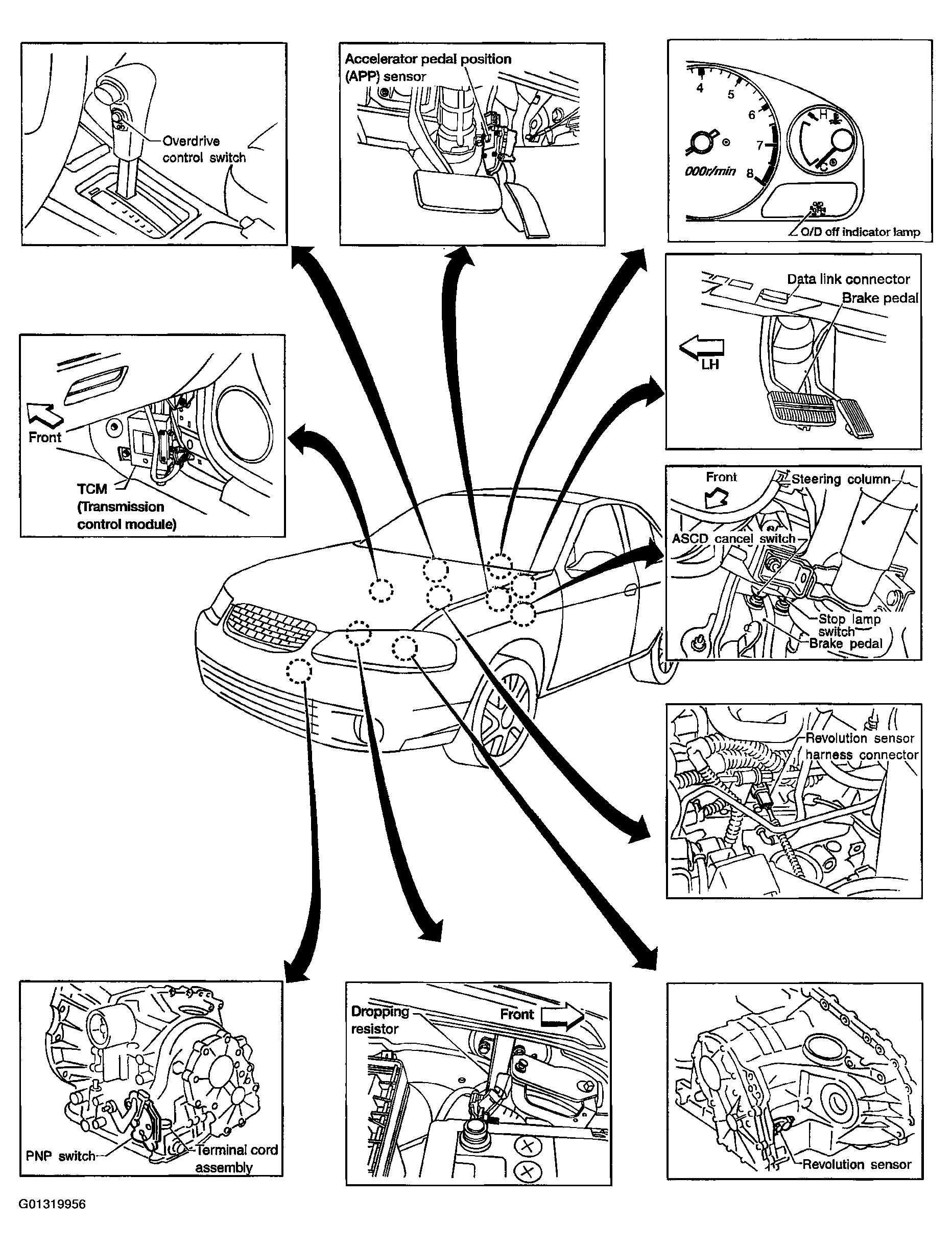

Fig 1: Locating Automatic Transmission System Electrical Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
