Removal And Installation

CAUTION: Replace anchor bolts if they are deformed or worn out.

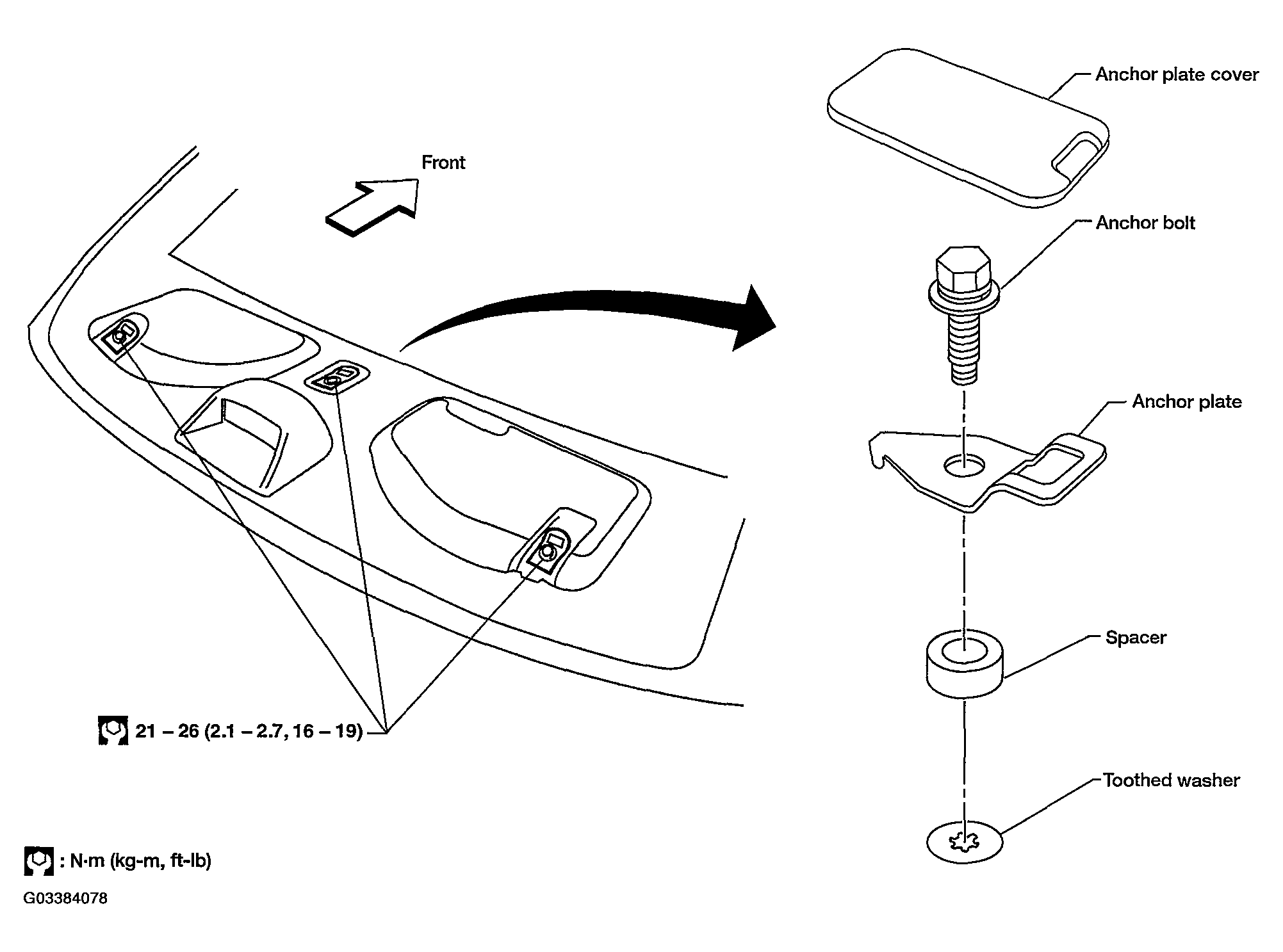

Fig 1: Identifying Top Tether Strap Child Restraint
G03384078Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove anchor plate cover. Refer to "SIDE AND FLOOR TRIM " for details.
  2. Remove anchor plate.
    NOTE:
    • To install, reverse the removal procedure sequence.
