Reverse Clutch: Assembly

WARNING: This page is about a different variant/trim than selected.

Install D-ring and oil seal on piston.
- Take care with the direction of the oil seal.
- Apply ATF to both parts.

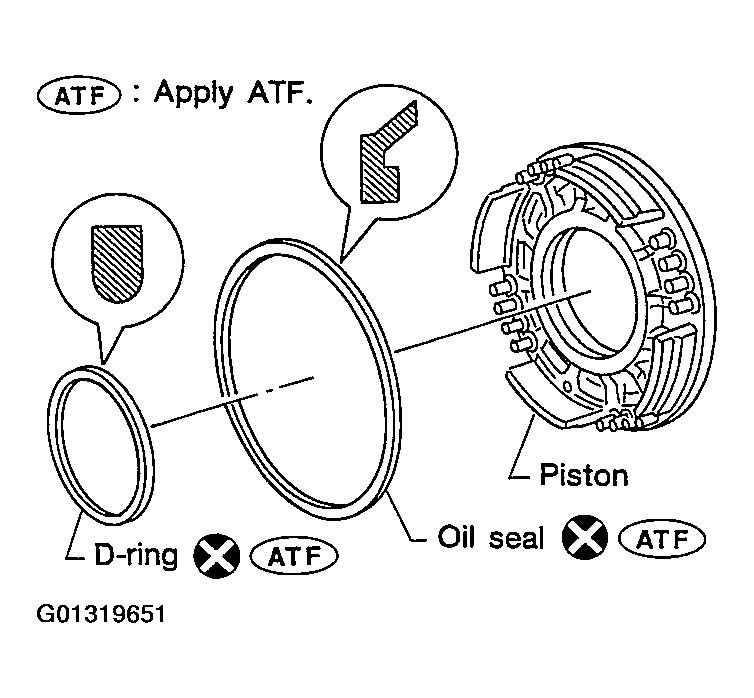

Fig 1: Installing D-Ring And Oil Seal On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Install piston assembly by turning it slowly.
- Apply ATF to inner surface of drum.

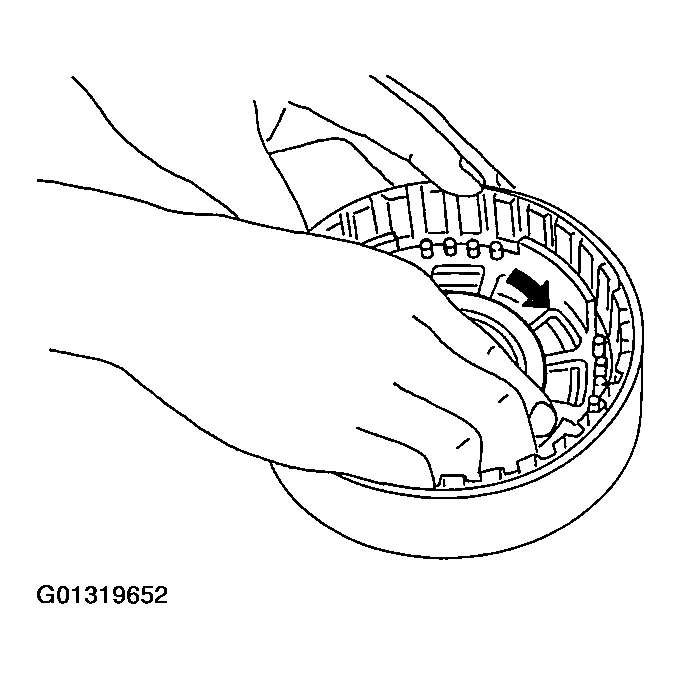

Fig 2: Installing Piston Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return springs and spring retainer on piston.
Return spring: Refer to "CLUTCH AND BRAKE RETURN SPRINGS ".

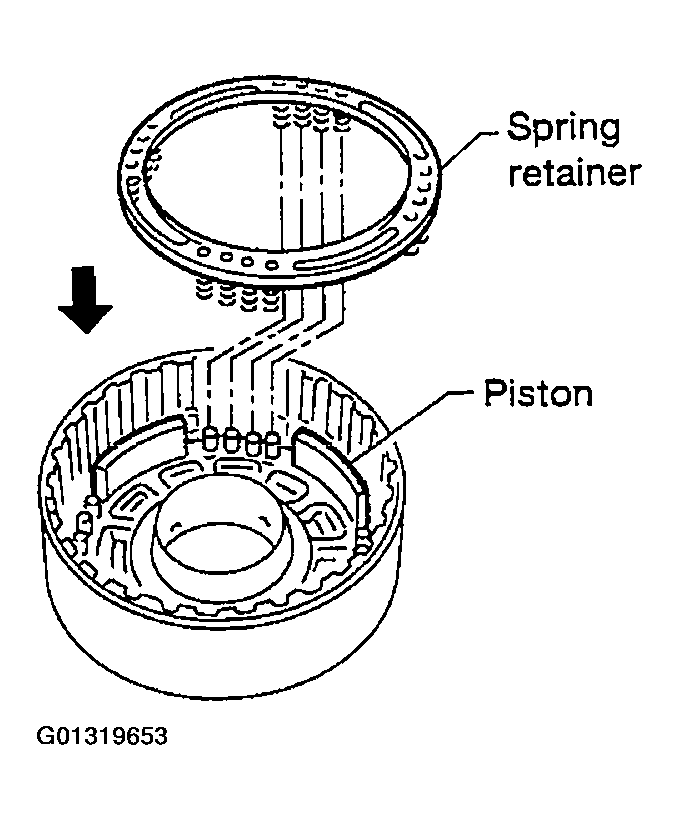

Fig 3: Installing Spring Retainer On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Set Tool on spring retainer and install snap ring while compressing return springs.
- Set Tool directly above return springs.

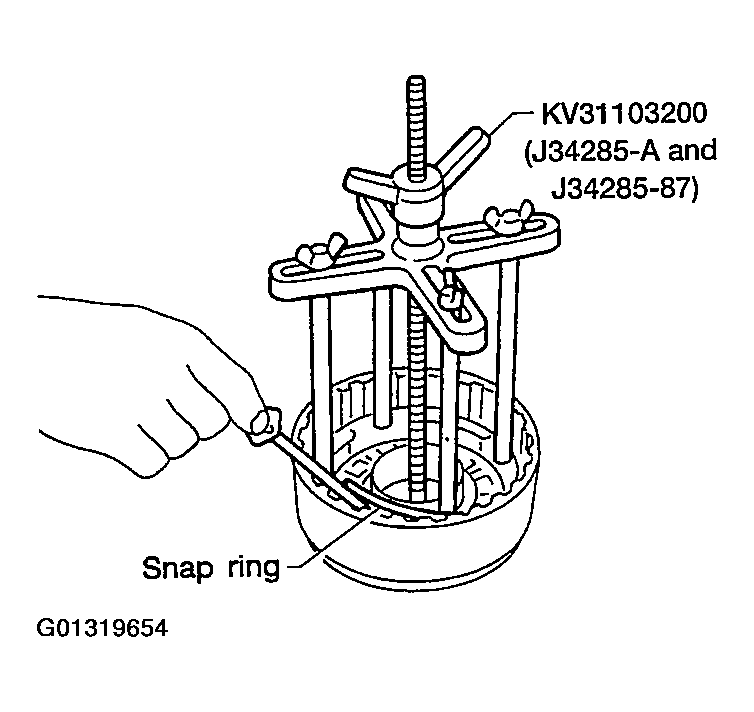

Fig 4: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates, retaining plate and dish plates.
- Do not align the projections of any two dish plates.
- Take care with the order and direction of plates.

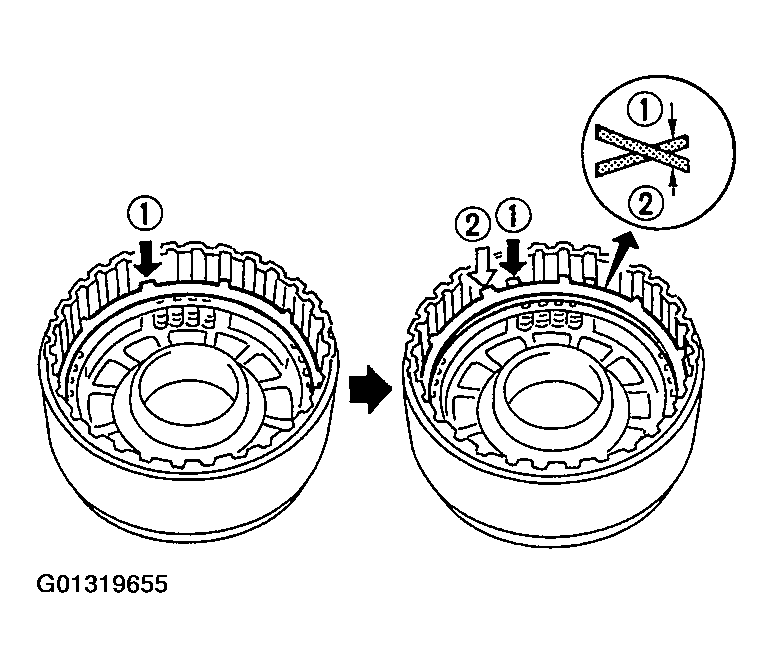

Fig 5: Locating Order And Direction Of Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring.

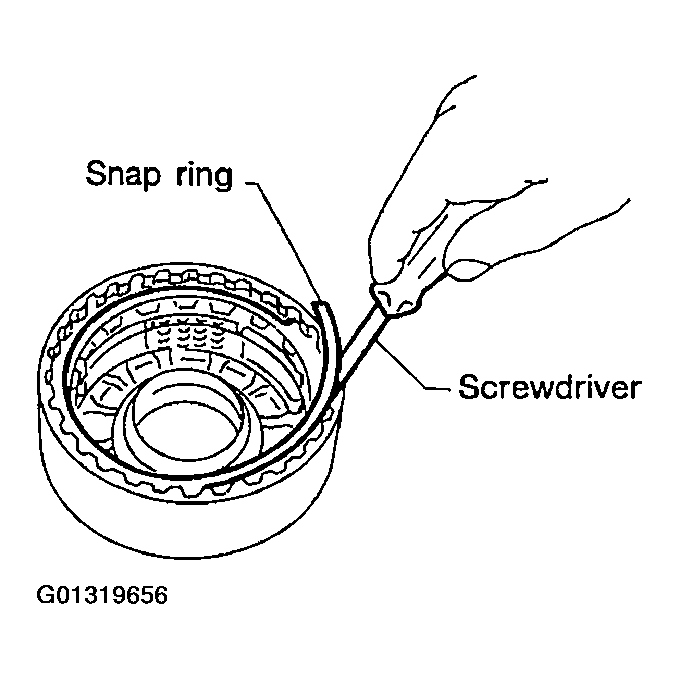

Fig 6: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.
Specified clearance

Standard: 0.5 - 0.8 mm (0.020 - 0.031 in)

Allowable limit: 1.2 mm (0.047 in)

Retaining plate: Refer to "REVERSE CLUTCH "

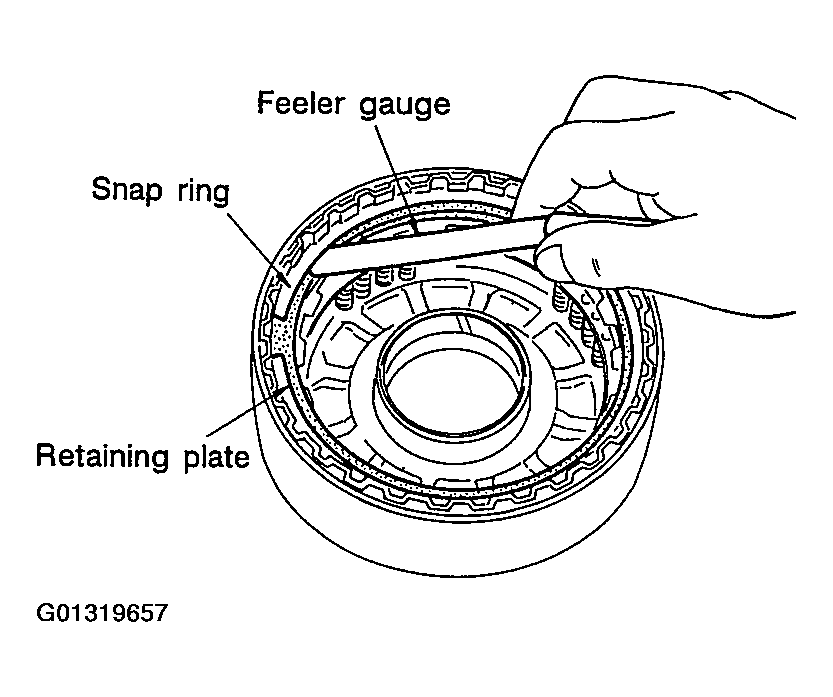

Fig 7: Measuring Clearance Between Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Check operation of reverse clutch. Refer to "COMPONENTS ".

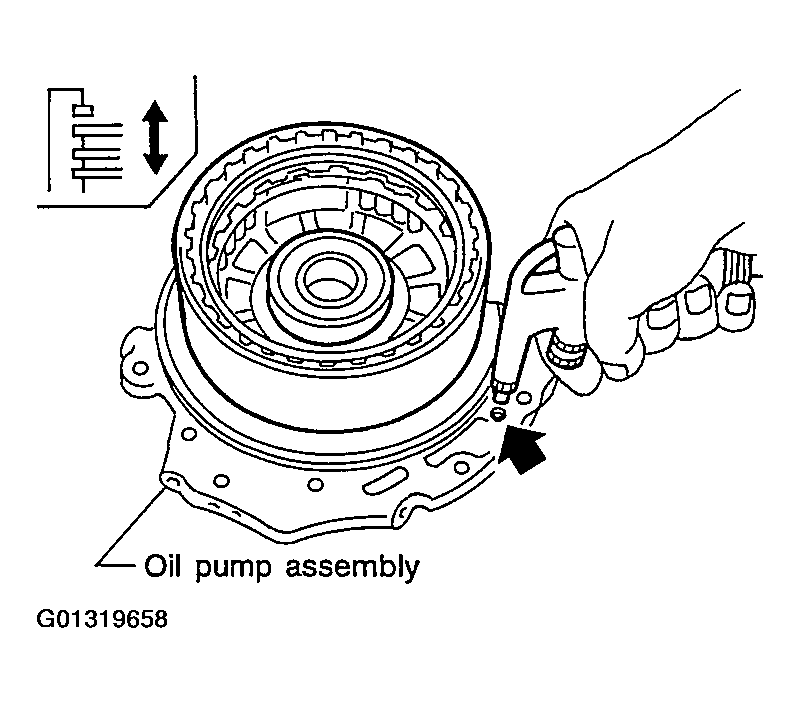

Fig 8: Checking Operation Of Reverse Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
