Section 5 (Automatic Transaxle (Re4F03B))
>>
Overhaul
>>
Oil Channel
Oil Channel
WARNING:
This page is about a different variant/trim than selected.

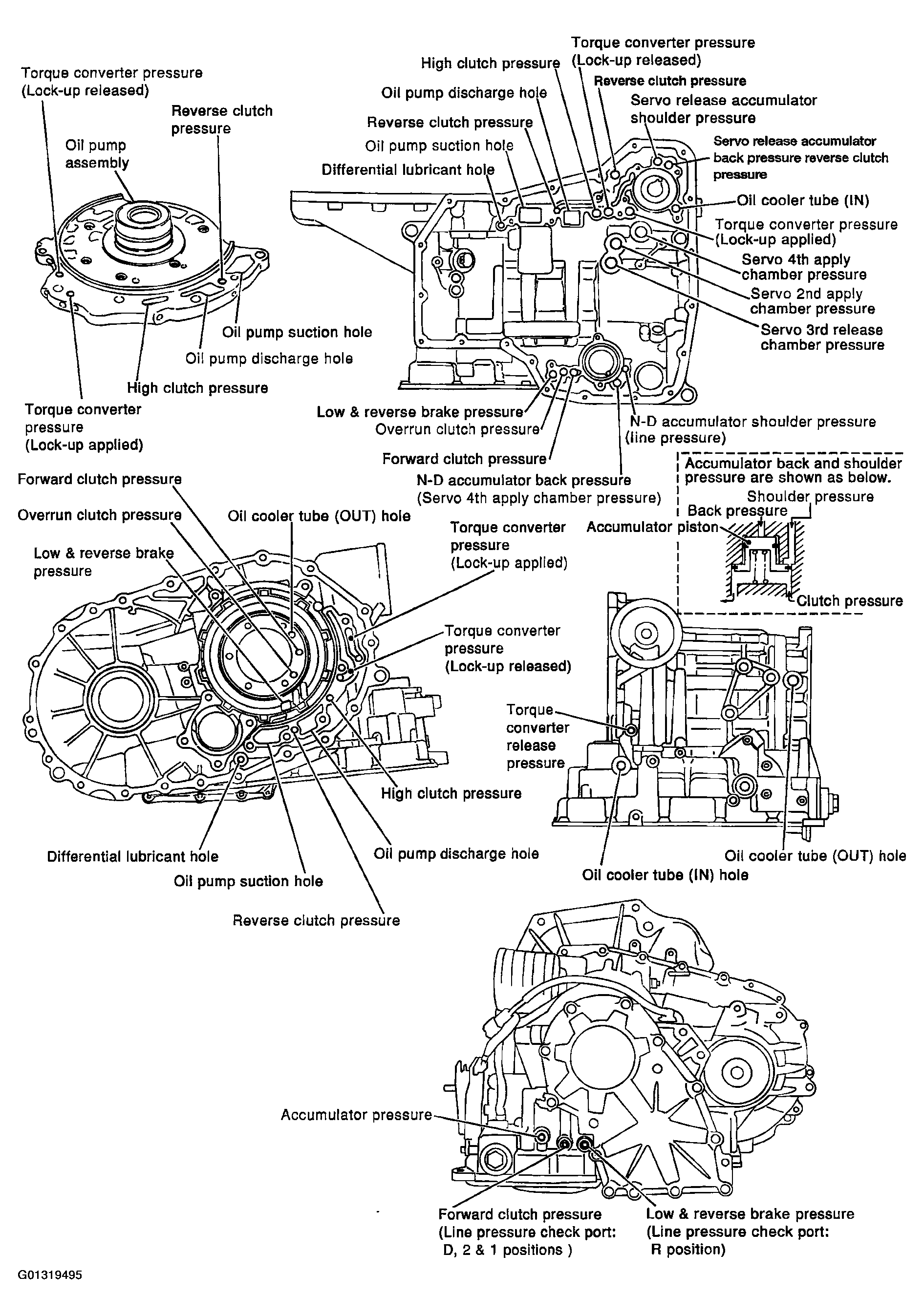

Fig 1: Identifying Components Of Oil Channel
Courtesy of NISSAN MOTOR CO., U.S.A.
