Input/Output Signal Of TCM
Input/Output Signal Of TCM
WARNING:
This page is about a different variant/trim than selected.

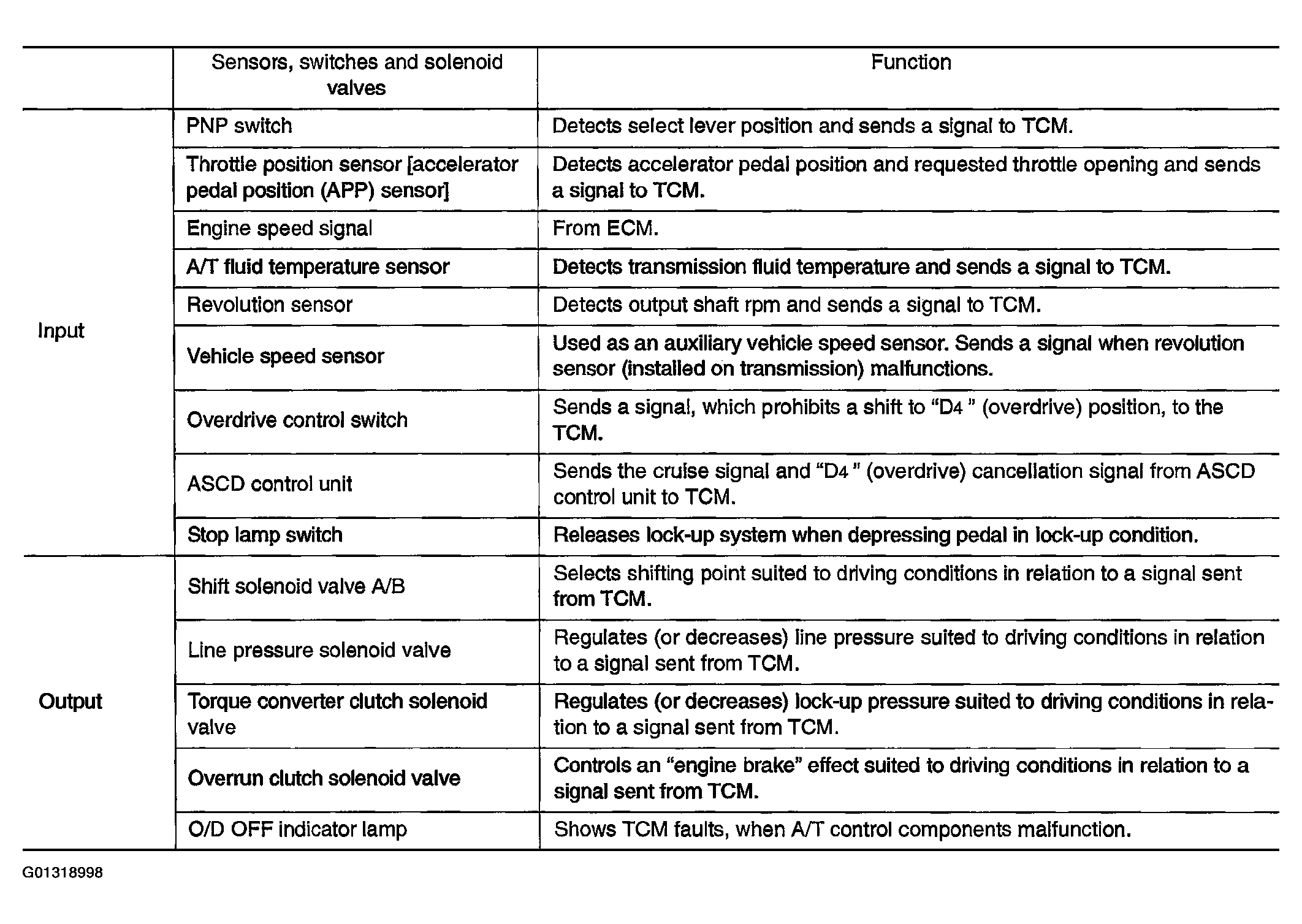

Fig 1: Input/Output Signal Of TCM
Courtesy of NISSAN MOTOR CO., U.S.A.
