Section 5 (Automatic Transaxle (Re4F03B))
>>
Overall System
>>
Shift Mechanism
>>
Clutch And Band Chart
Clutch And Band Chart
WARNING:
This page is about a different variant/trim than selected.

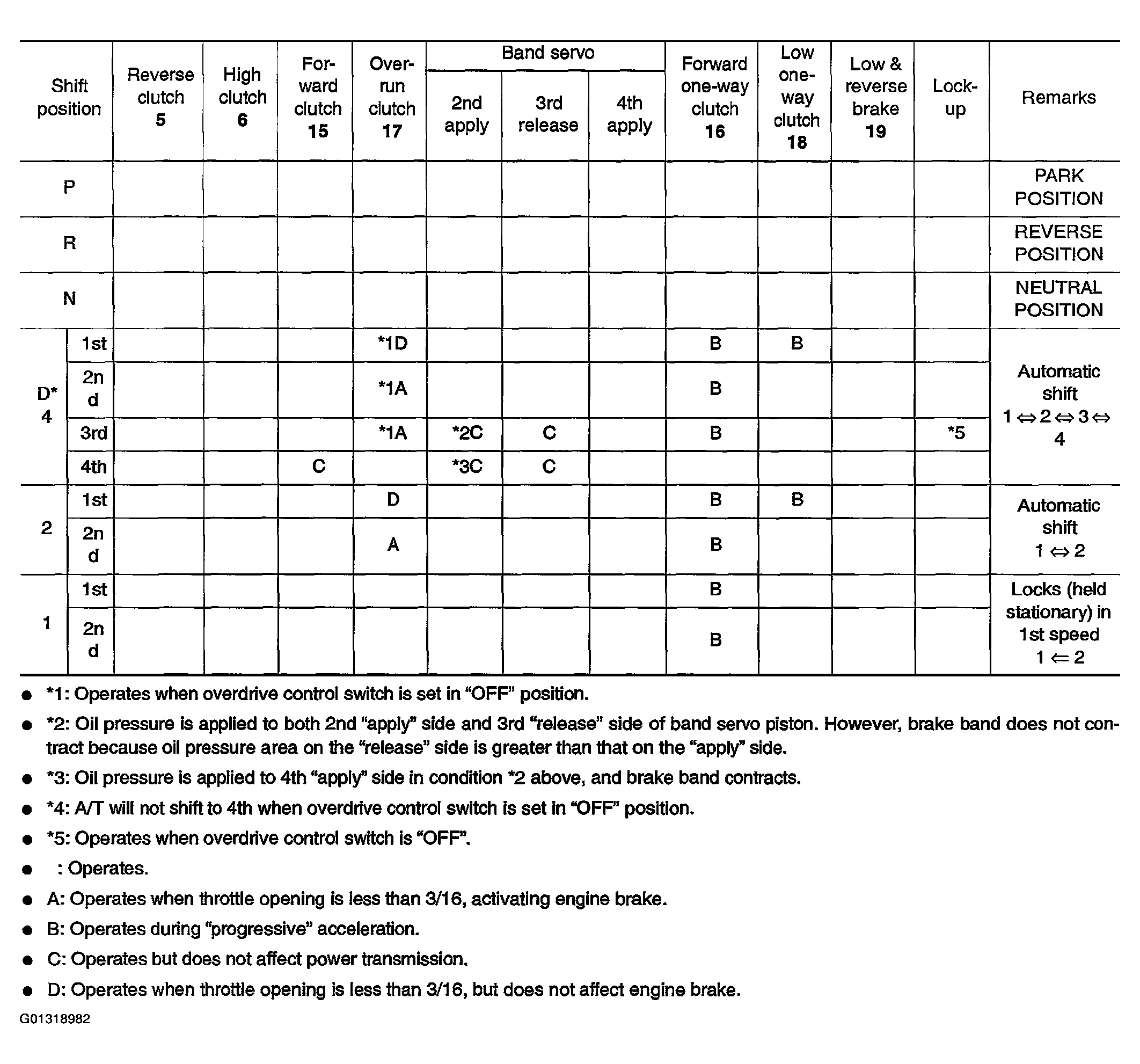

Fig 1: Clutch And Band Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
