Section 5 (Automatic Transaxle (Re4F03B))
>>
Overall System
>>
A/T Electrical Parts Location
A/T Electrical Parts Location
WARNING:
This page is about a different variant/trim than selected.

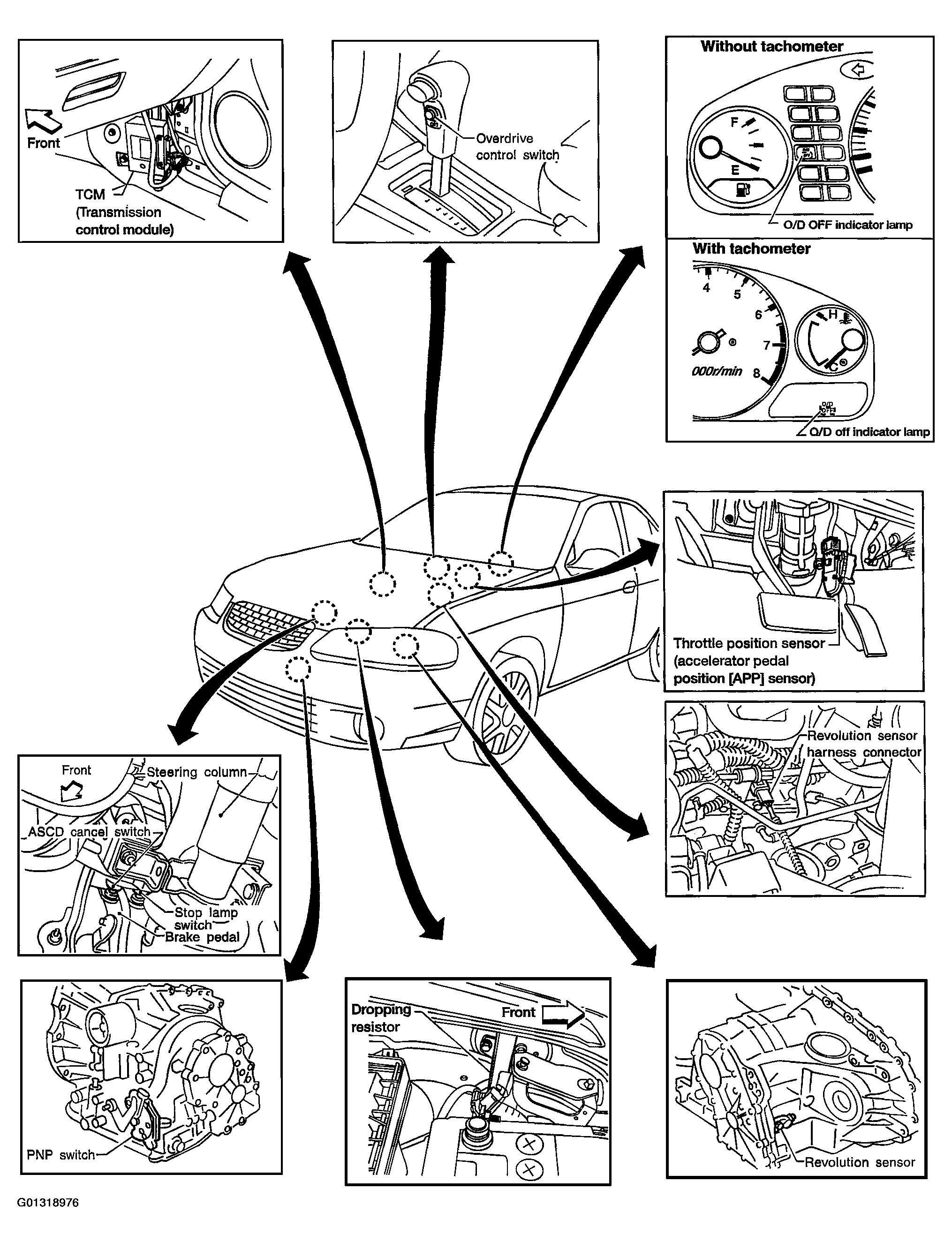

Fig 1: Locating A/T Electrical Parts - Overall System
Courtesy of NISSAN MOTOR CO., U.S.A.
