Section 5 (Automatic Transaxle (Re4F03B))
>>
Low & Reverse Brake
>>
Components
Low & Reverse Brake: Components
WARNING:
This page is about a different variant/trim than selected.

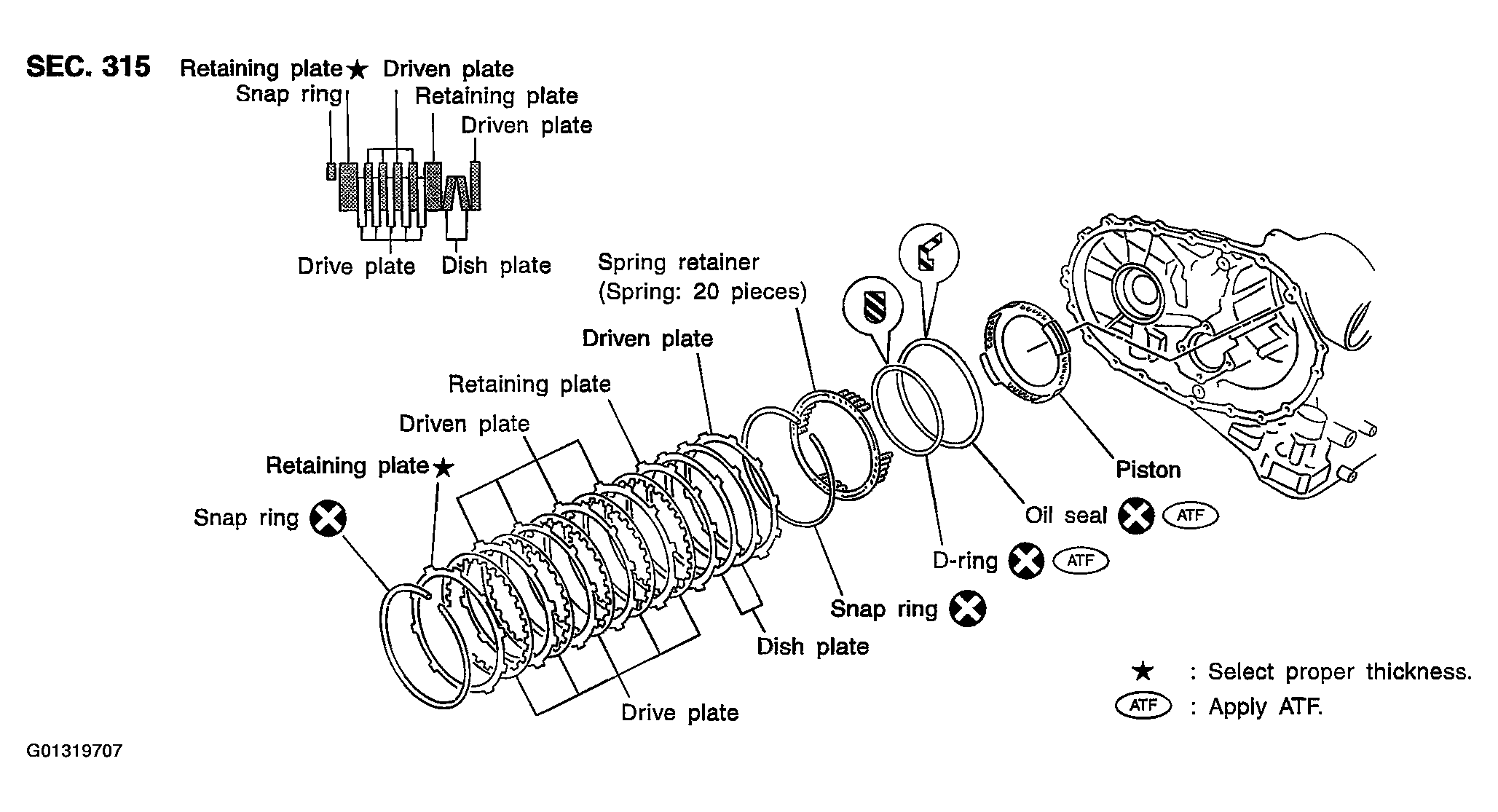

Fig 1: Exploded View Low And Reverse Brake
Courtesy of NISSAN MOTOR CO., U.S.A.
