Section 5 (Automatic Transaxle (Re4F03B))
>>
High Clutch
>>
Components
High Clutch: Components
WARNING:
This page is about a different variant/trim than selected.

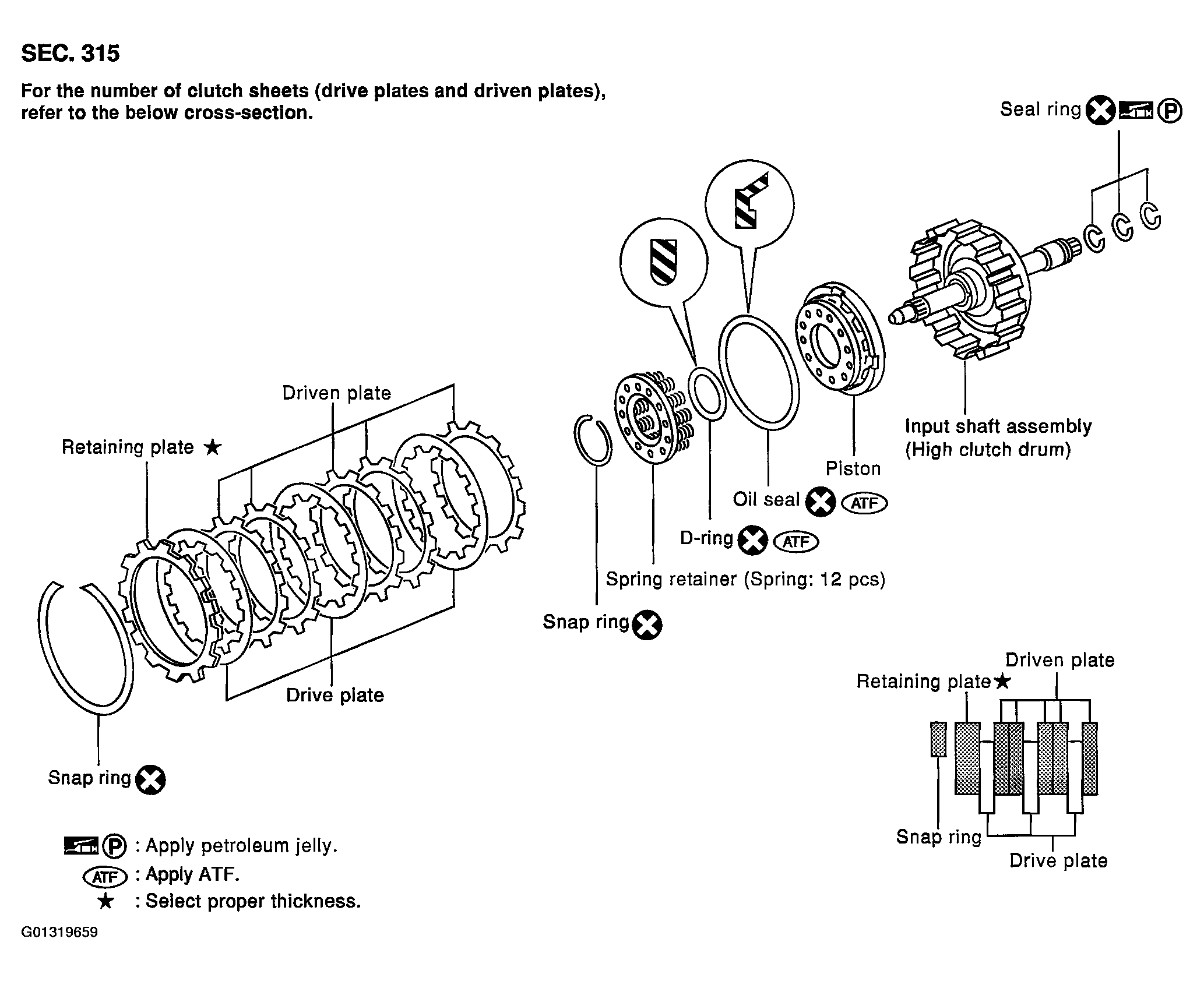

Fig 1: Exploded View High Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
