DTC VHCL Speed Sen-MTR Vehicle Speed Sensor-MTR: Description: Notes

WARNING: This page is about a different variant/trim than selected.

The vehicle speed sensor-MTR is built into the speedometer assembly. The sensor functions as an auxiliary device to the revolution sensor when it is malfunctioning. The TCM will then use a signal sent from the vehicle speed sensor-MTR.

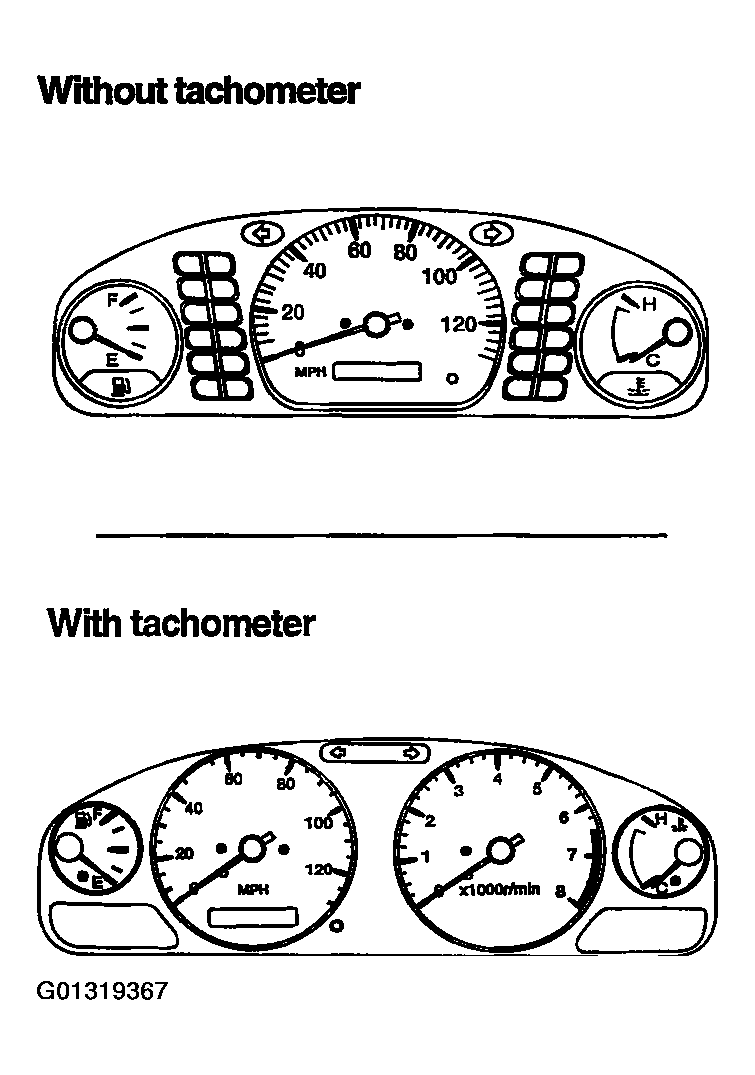

Fig 1: Identifying Speedometer Assembly With And Without Tachometer
G01319367Courtesy of NISSAN MOTOR CO., U.S.A.
