DTC Confirmation Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

Turn ignition switch to ON position. (Do not start engine.)
Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.

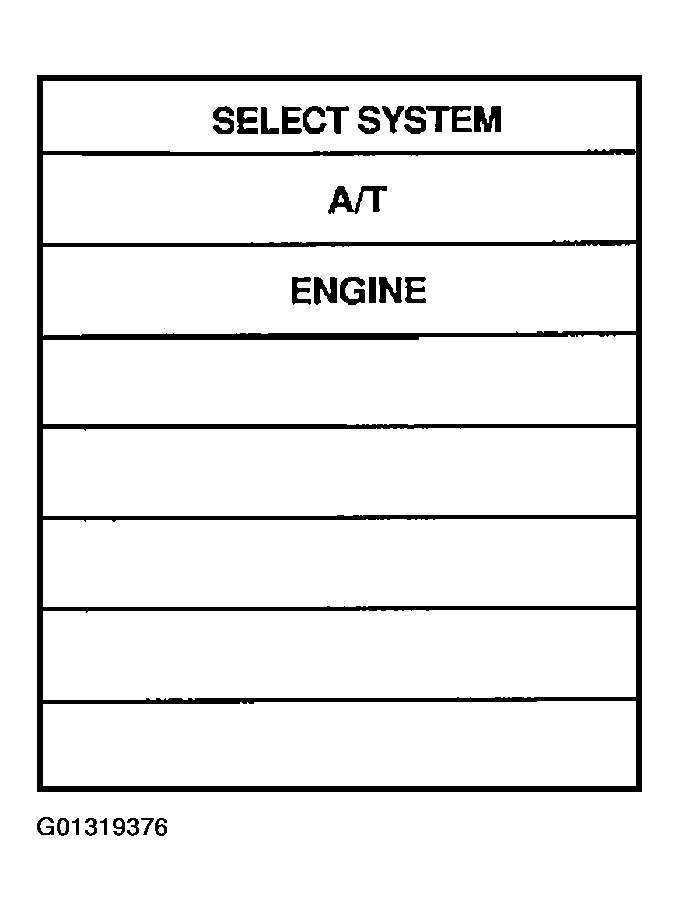

Fig 1: CONSULT-II Display - ENGINE

Courtesy of NISSAN MOTOR CO., U.S.A.

Start engine and wait for at least 6 seconds.
If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

WITH GST

Follow the procedure "WITH CONSULT-II".
