Section 5 (Automatic Transaxle (Re4F03B))
>>
DTC P0732: A/T 2ND Gear Function
>>
Wiring Diagram - AT - 2ND
>>
Transmission Control Module Terminals And Reference Value Between Terminal And Ground
Transmission Control Module Terminals And Reference Value Between Terminal And Ground
WARNING:
This page is about a different variant/trim than selected.

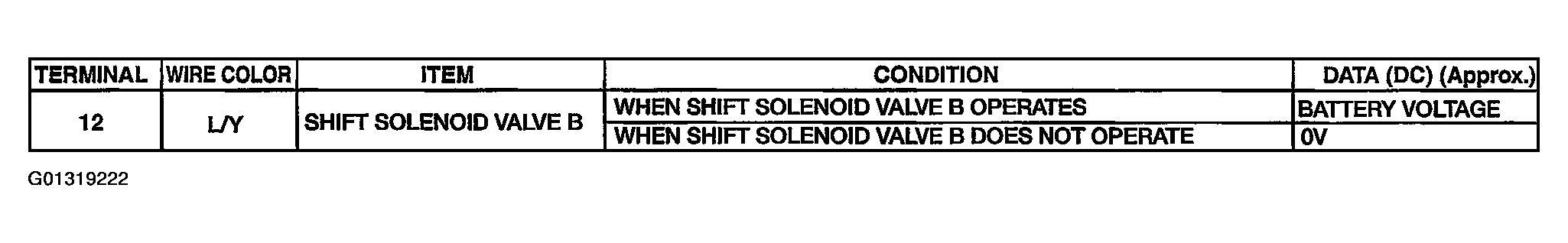

Fig 1: Transmission Control Module Terminals And Reference Value Between Terminal And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
