Assembly (2)

WARNING: This page is about a different variant/trim than selected.
  1. Remove paper rolled around bearing retainer.
  2. Install thrust washer on bearing retainer.
    • Apply petroleum jelly to thrust washer.

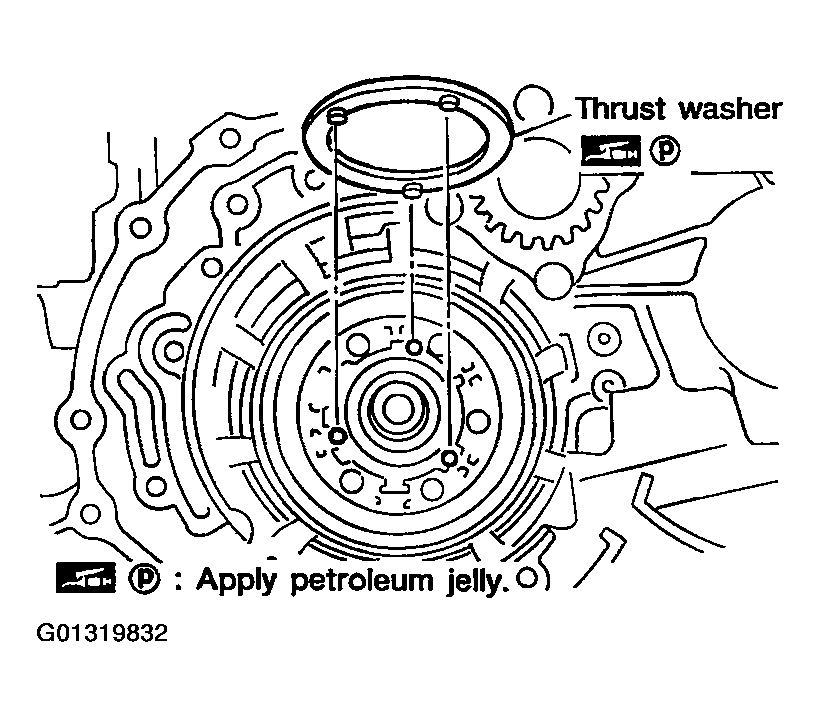

    Fig 1: Installing Thrust Washer On Bearing Retainer
    G01319832Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install forward clutch assembly.
    • Align teeth of low & reverse brake drive plates before installing.
    • Make sure that bearing retainer seal rings are not spread.

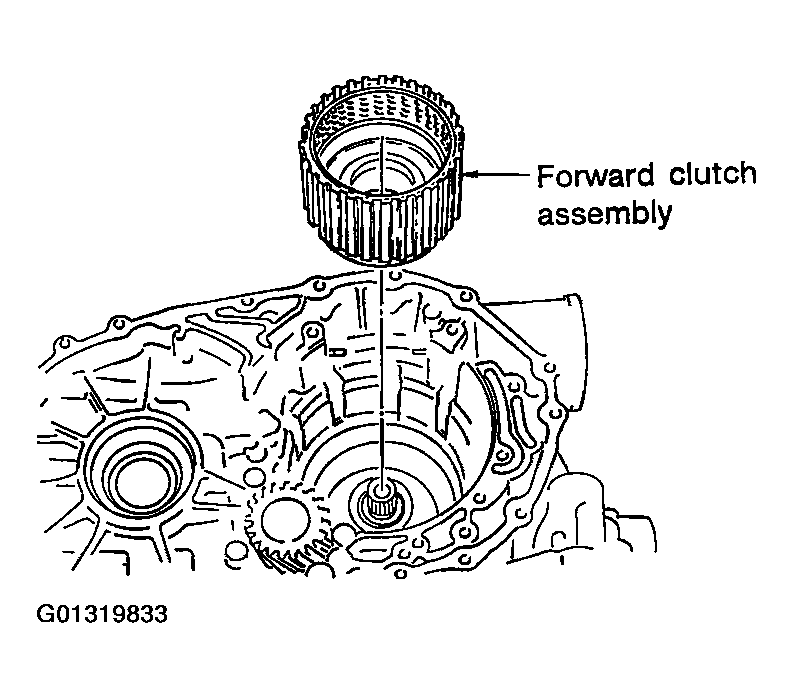

    Fig 2: Installing Forward Clutch Assembly
    G01319833Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install thrust needle bearing on bearing retainer.
    • Apply petroleum jelly to thrust bearing.
    • Pay attention to direction of thrust needle bearing.

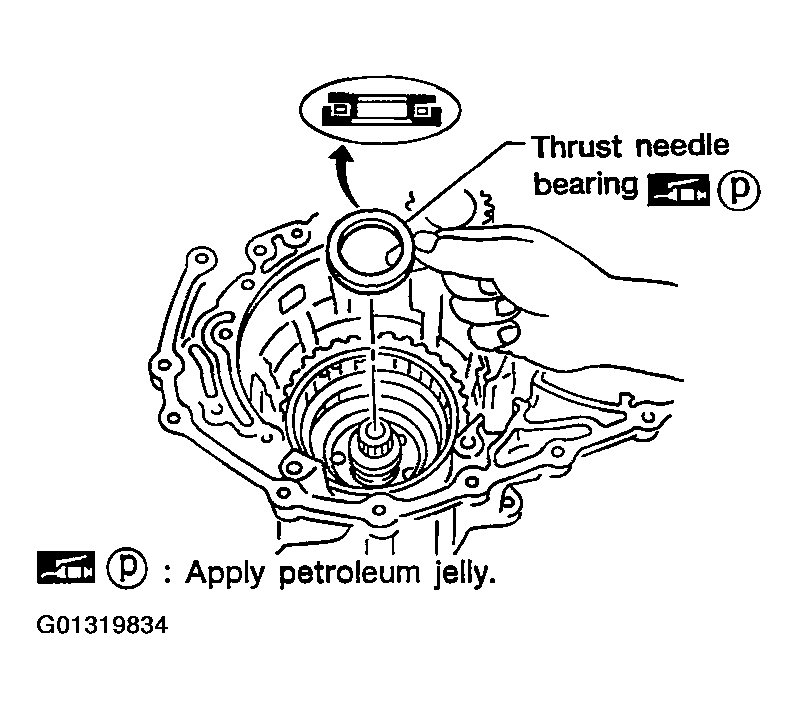

    Fig 3: Installing Thrust Needle Bearing On Bearing Retainer
    G01319834Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install thrust needle bearing on rear internal gear.
    • Apply petroleum jelly to thrust needle bearing.
    • Pay attention to direction of thrust needle bearing.
    Fig 4: Installing Thrust Needle Bearing On Rear Internal Gear
    G01319835Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Hold forward clutch hub and turn overrun clutch hub.
    • Check overrun clutch hub for directions of lock and unlock.
      • Fig 5: Checking Overrun Clutch Hub For Directions Of Lock And Unlock
      G01319836Courtesy of NISSAN MOTOR CO., U.S.A.
    • If not as shown in illustration, check installed direction of forward one-way clutch.
  7. Install rear internal gear assembly.
    • Align teeth of forward clutch and overrun clutch drive plate.

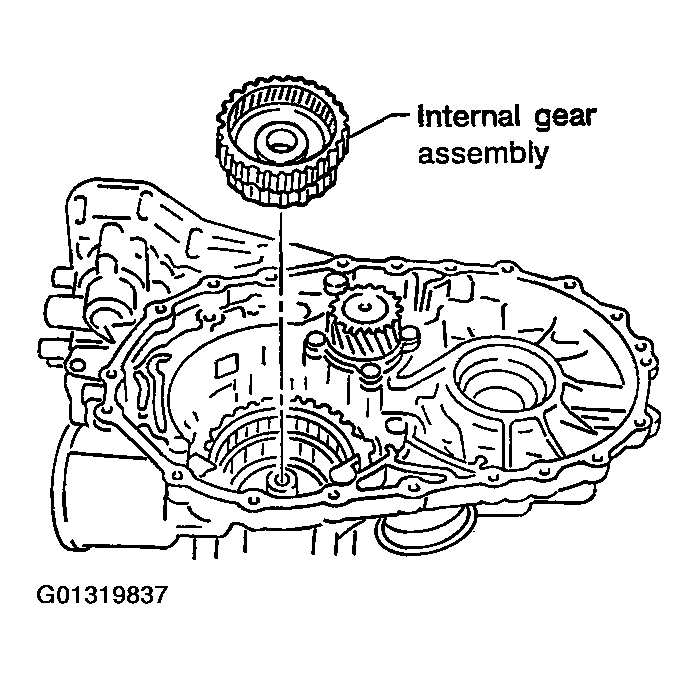

    Fig 6: Installing Rear Internal Gear Assembly
    G01319837Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install needle bearing on rear planetary carrier.
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.
    Fig 7: Installing Needle Bearing On Rear Planetary Carrier
    G01319838Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install rear sun gear on rear planetary carrier.
    • Pay attention to direction of rear sun gear.

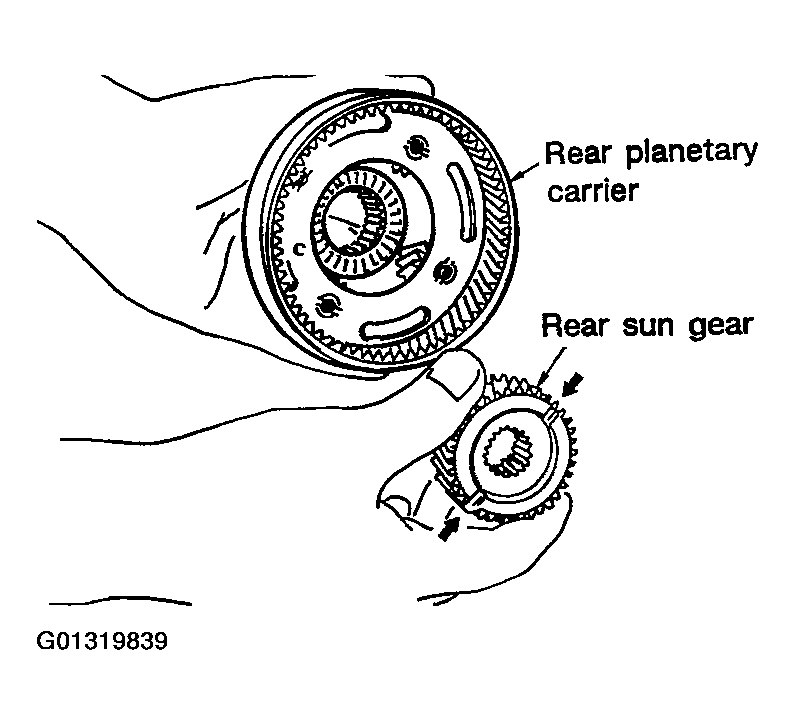

    Fig 8: Installing Rear Sun Gear On Rear Planetary Carrier
    G01319839Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install rear planetary carrier on transmission case.

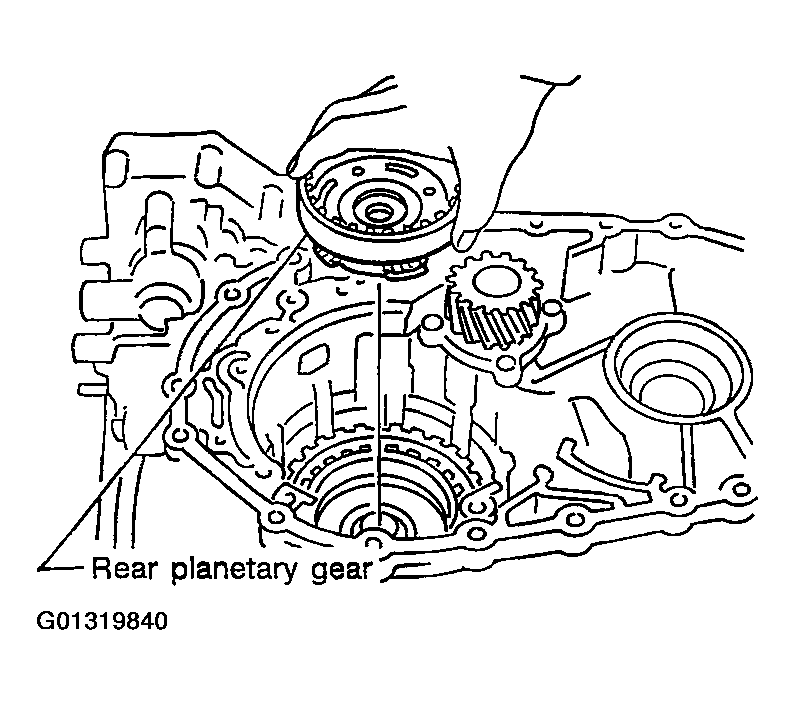

    Fig 9: Installing Rear Planetary Carrier On Transmission Case
    G01319840Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install thrust needle bearing on front planetary carrier.
    • Apply petroleum jelly to thrust needle bearing.
    • Pay attention to direction of thrust needle bearing.
    Fig 10: Installing Thrust Needle Bearing On Front Planetary Carrier
    G01319841Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install low one-way clutch to front planetary carrier by turning it in the direction of the arrow as shown.
  13. While holding front planetary carrier, turn low one-way clutch. Check low one-way clutch for correct directions of lock and unlock.
    Fig 11: Checking Lock And Unlock Of Low One Way Clutch
    G01319842Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Install front planetary carrier assembly on transmission case.

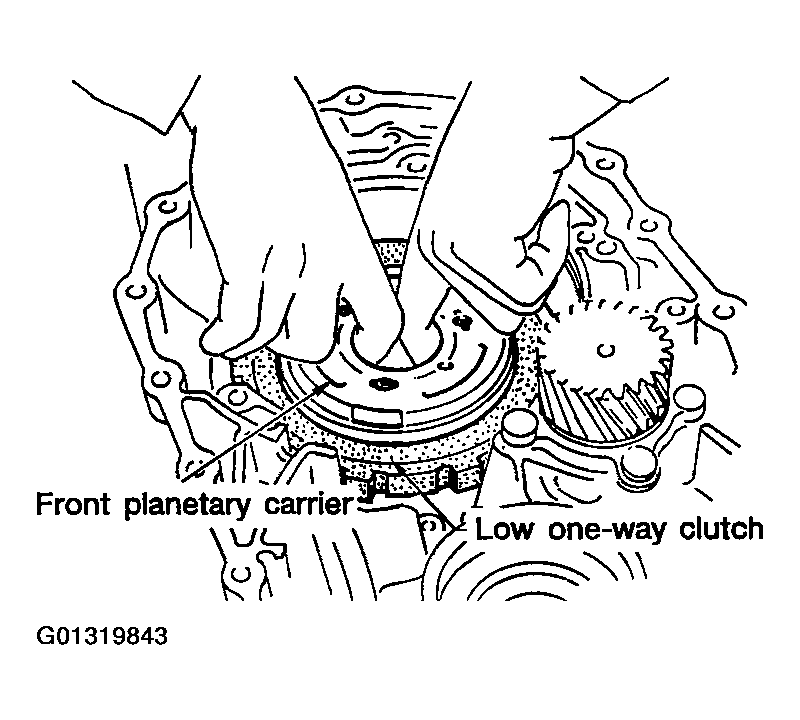

    Fig 12: Installing Front Planetary Carrier Assembly On Transmission Case
    G01319843Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Install snap ring with screwdriver.
    • Forward clutch and bearings must be correctly installed for snap ring to fit groove of transmission case.

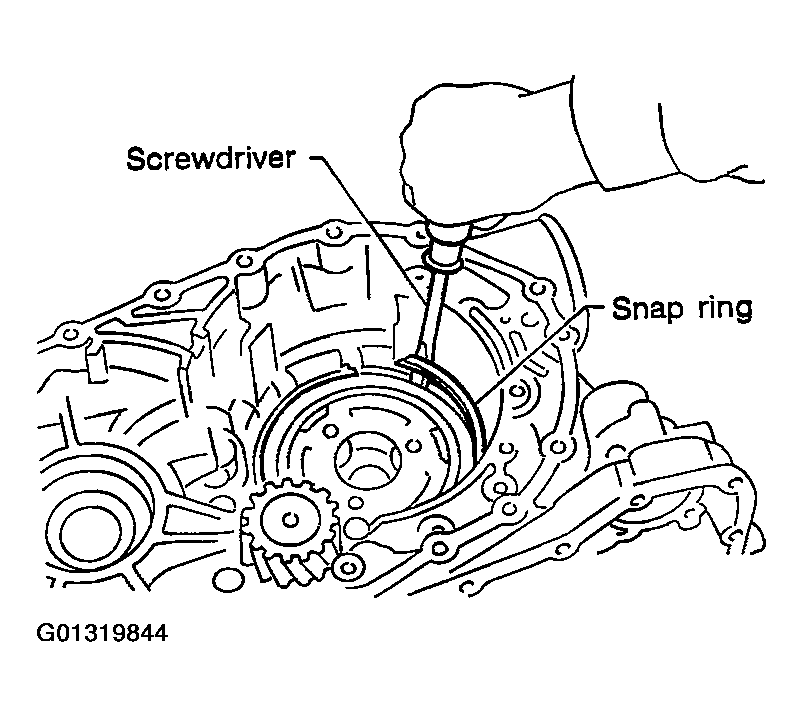

    Fig 13: Installing Snap Ring
    G01319844Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Install needle bearing on front sun gear.
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.

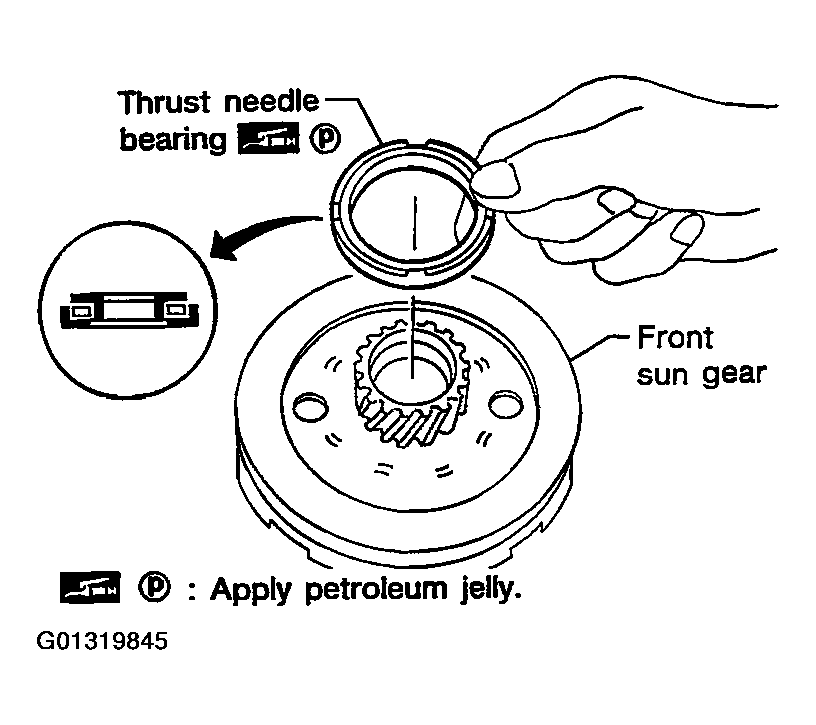

    Fig 14: Installing Needle Bearing On Front Sun Gear
    G01319845Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Install front sun gear on front planetary carrier.

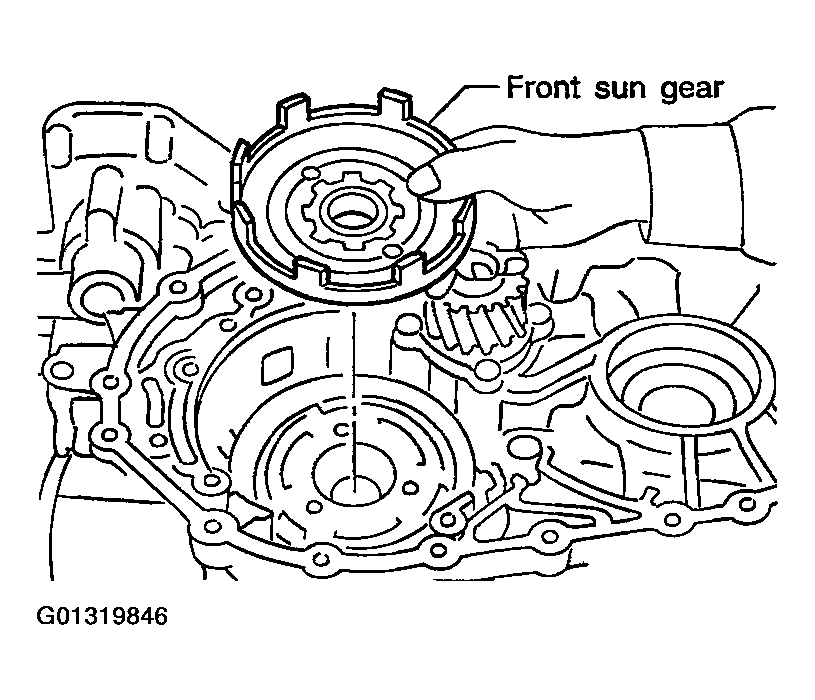

    Fig 15: Installing Front Sun Gear On Front Planetary Carrier
    G01319846Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Install needle bearing on front sun gear.
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.

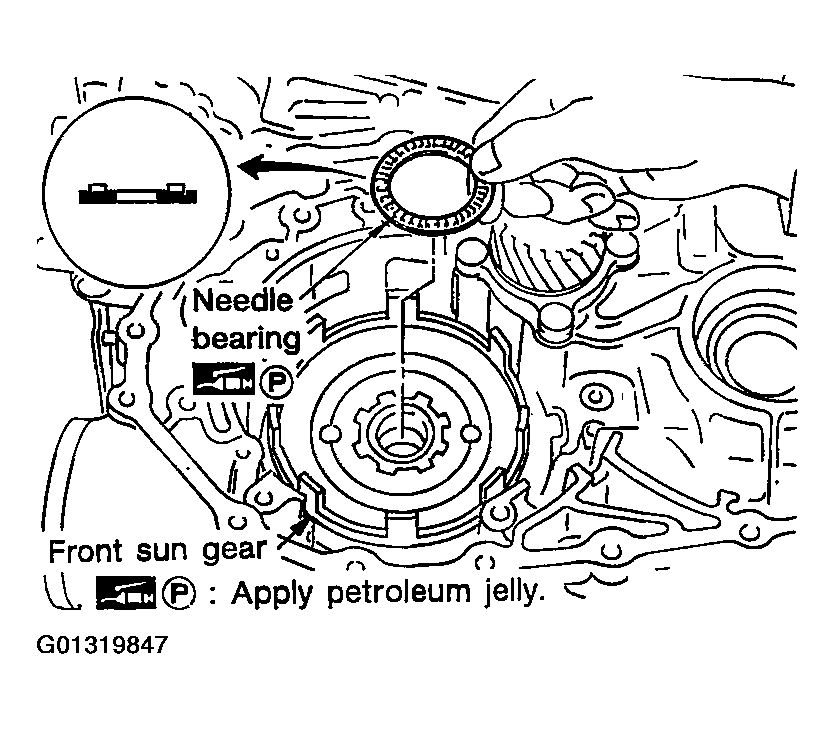

    Fig 16: Installing Needle Bearing On Front Sun Gear
    G01319847Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Install high clutch hub on front sun gear.

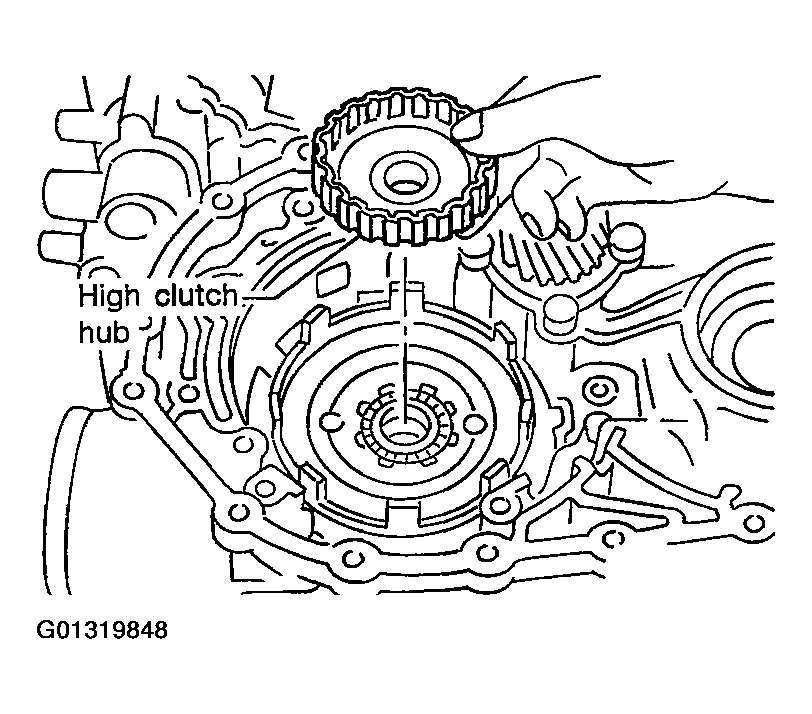

    Fig 17: Installing High Clutch Hub On Front Sun Gear
    G01319848Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Install needle bearing on high clutch hub.
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.

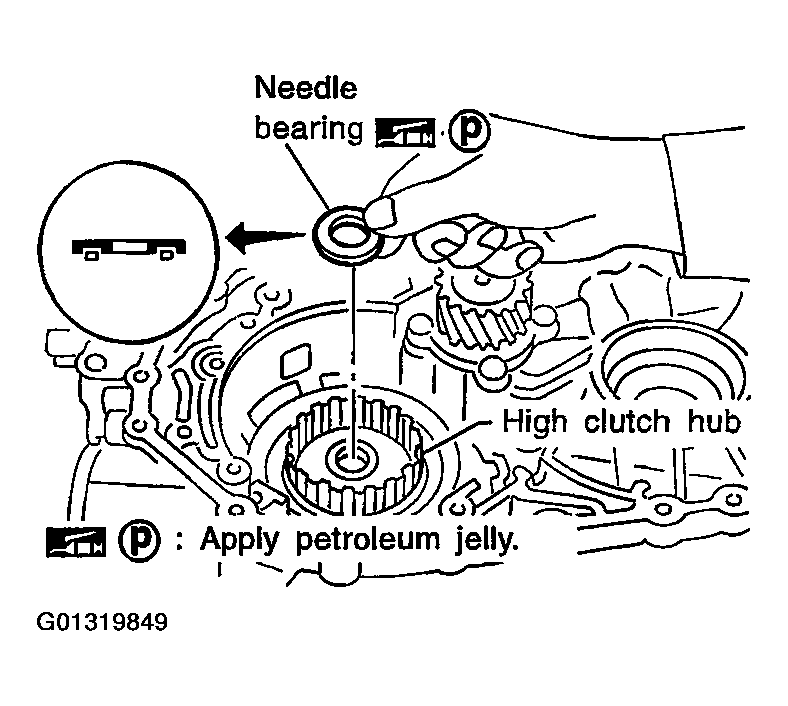

    Fig 18: Installing Needle Bearing On High Clutch Hub
    G01319849Courtesy of NISSAN MOTOR CO., U.S.A.
  21. Remove paper rolled around input shaft.
  22. Install input shaft assembly.
    • Align teeth of high clutch drive plates before installing.

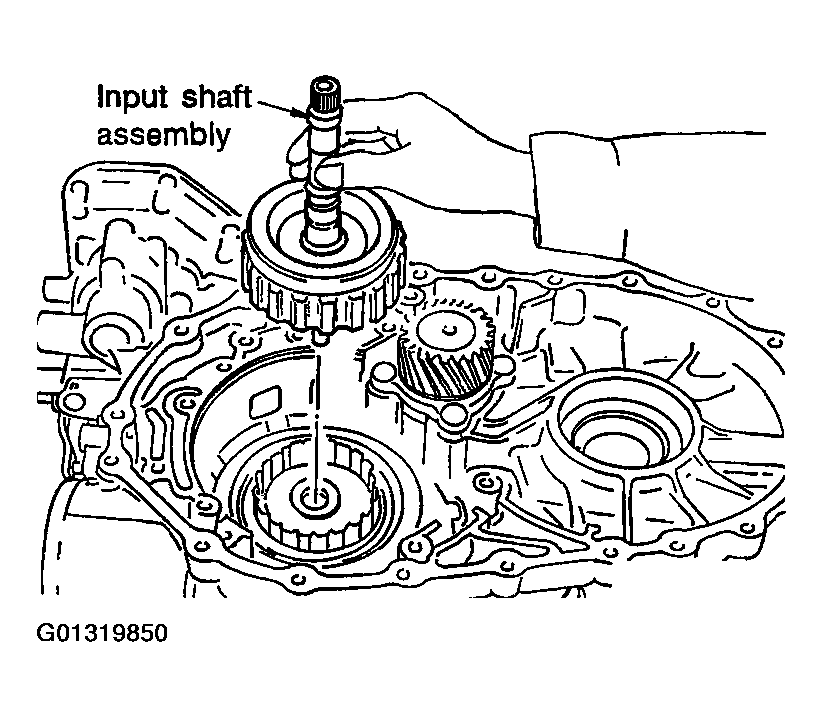

    Fig 19: Installing Input Shaft Assembly
    G01319850Courtesy of NISSAN MOTOR CO., U.S.A.
  23. Install reverse clutch assembly.
    • Align teeth of reverse clutch drive plates before installing.

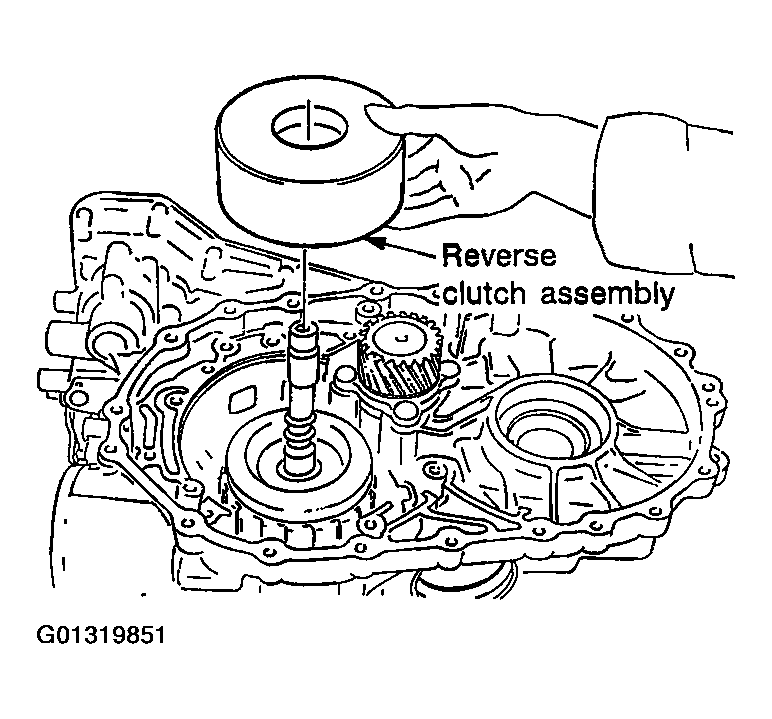

    Fig 20: Installing Reverse Clutch Assembly
    G01319851Courtesy of NISSAN MOTOR CO., U.S.A.
