Removal and Installation

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the evaporator. Refer to , "REMOVAL AND INSTALLATION FOR EVAPORATOR ".
  2. Remove the intake sensor clip and then the sensor.
CAUTION: Be careful not to damage the core surface.

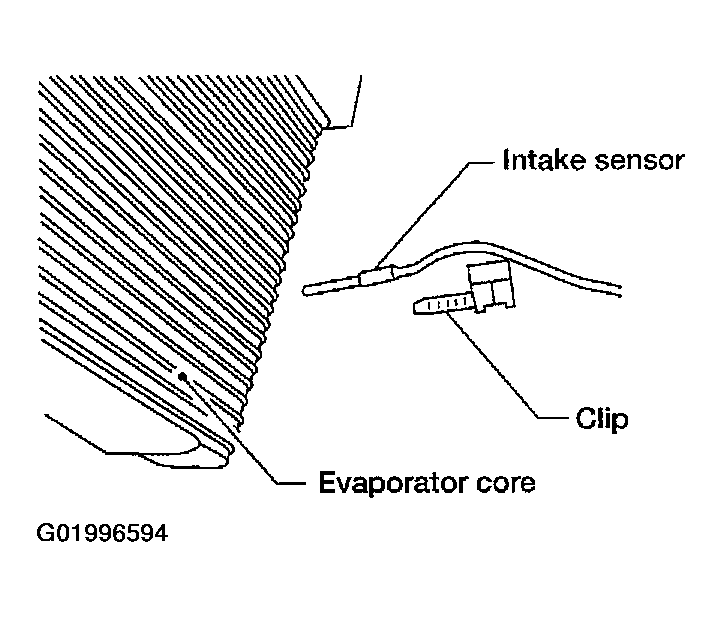

Fig 1: Removing Intake Sensor
G01996594Courtesy of NISSAN MOTOR CO., U.S.A.
