Sunload Sensor

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

The sunload sensor is located on the passenger side front defroster grille. It detects sunload entering through windshield by means of a photo diode. The sensor converts the sunload into a current value which is then input into the unified meter and A/C amp.

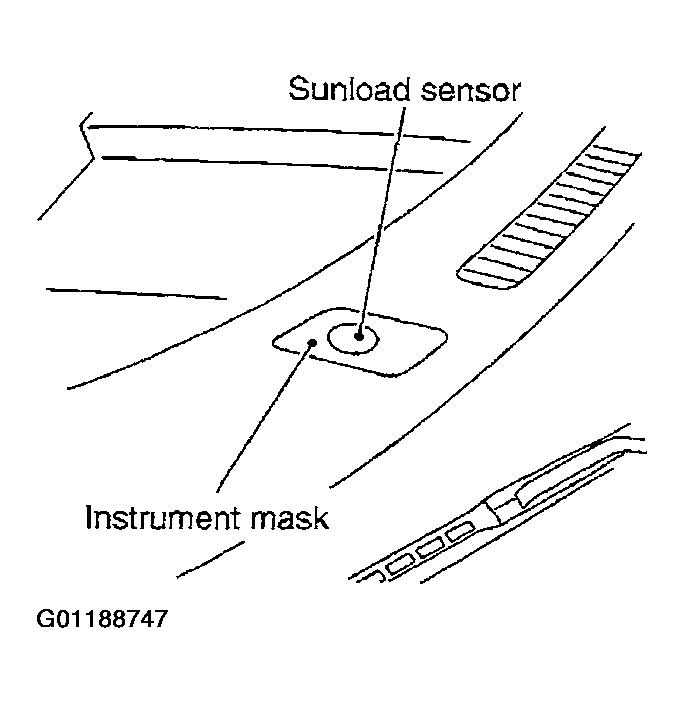

Fig 1: Identifying Sunload Sensor
G01188747Courtesy of NISSAN MOTOR CO., U.S.A.
