Checking Temperature Increase

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Turn temperature dial (driver side) clockwise until 32° C (90° F) is displayed.

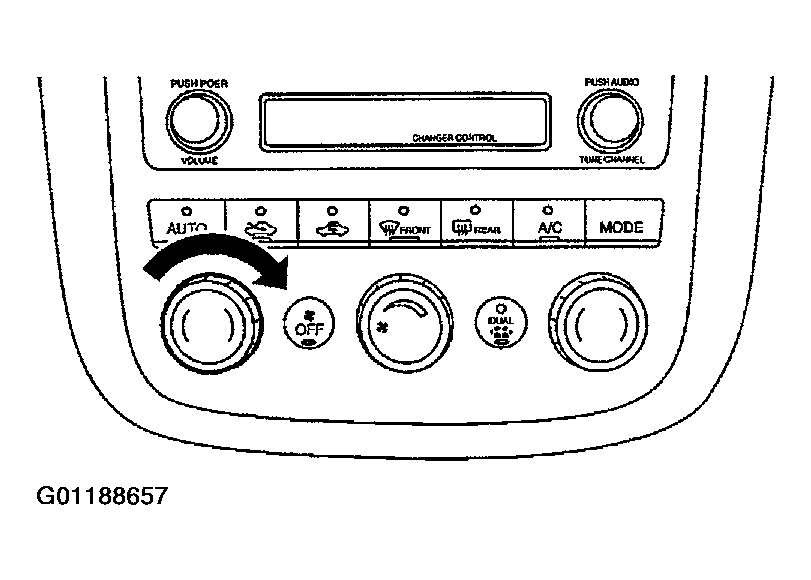

Fig 1: Turning Temperature Dial Clockwise
Courtesy of NISSAN MOTOR CO., U.S.A.
Check for hot air at discharge air outlets.

If NG, go to trouble diagnosis procedure for INSUFFICIENT HEATING ".

If OK, continue with next check.
