Checking Temperature Decrease

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn temperature dial (driver side) counterclockwise until 18° C (60° F) is displayed.
  2. Check for cold air at discharge air outlets.

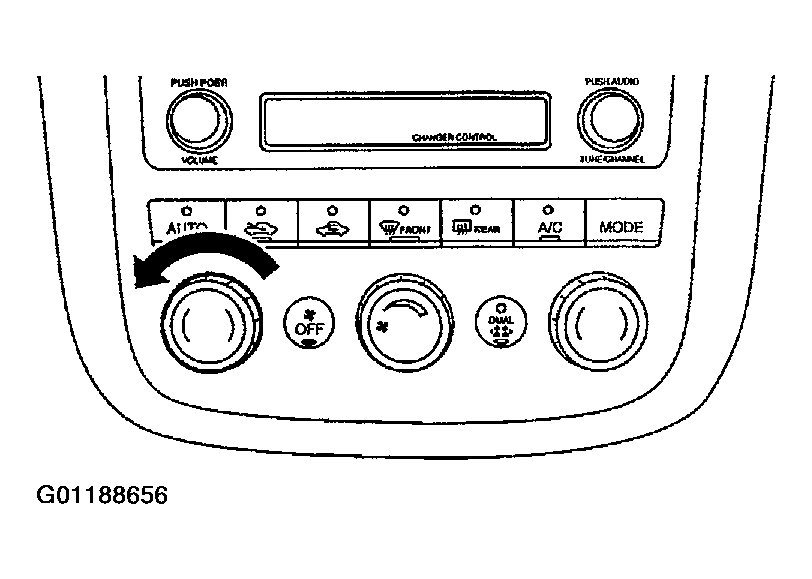

    Fig 1: Turning Temperature Dial Counterclockwise
    G01188656Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, go to trouble diagnosis procedure for INSUFFICIENT COOLING .

If OK, continue with next check.
