Checking Blower

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn fan control dial clockwise. Blower should operate on low speed. The fan symbol should have one blade lit.

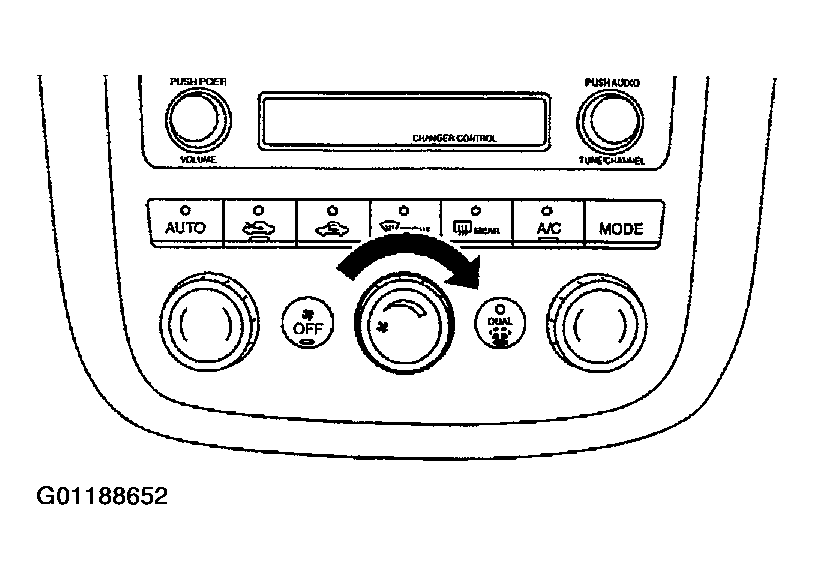

    2. Fig 1: Turning Fan Control Dial Clockwise
    G01188652Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Turn fan control dial clockwise again, and continue checking blower speed and fan symbol until all speeds are checked.
  3. Leave blower on MAX speed.

    If NG, go to trouble diagnosis procedure for DIAGNOSTIC PROCEDURE FOR BLOWER MOTOR .

    If OK, continue with next check.
