In-Vehicle Sensor

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

After disconnecting in-vehicle sensor connector, measure resistance between terminals 1 and 2 at sensor harness side, using the table in Fig 1.

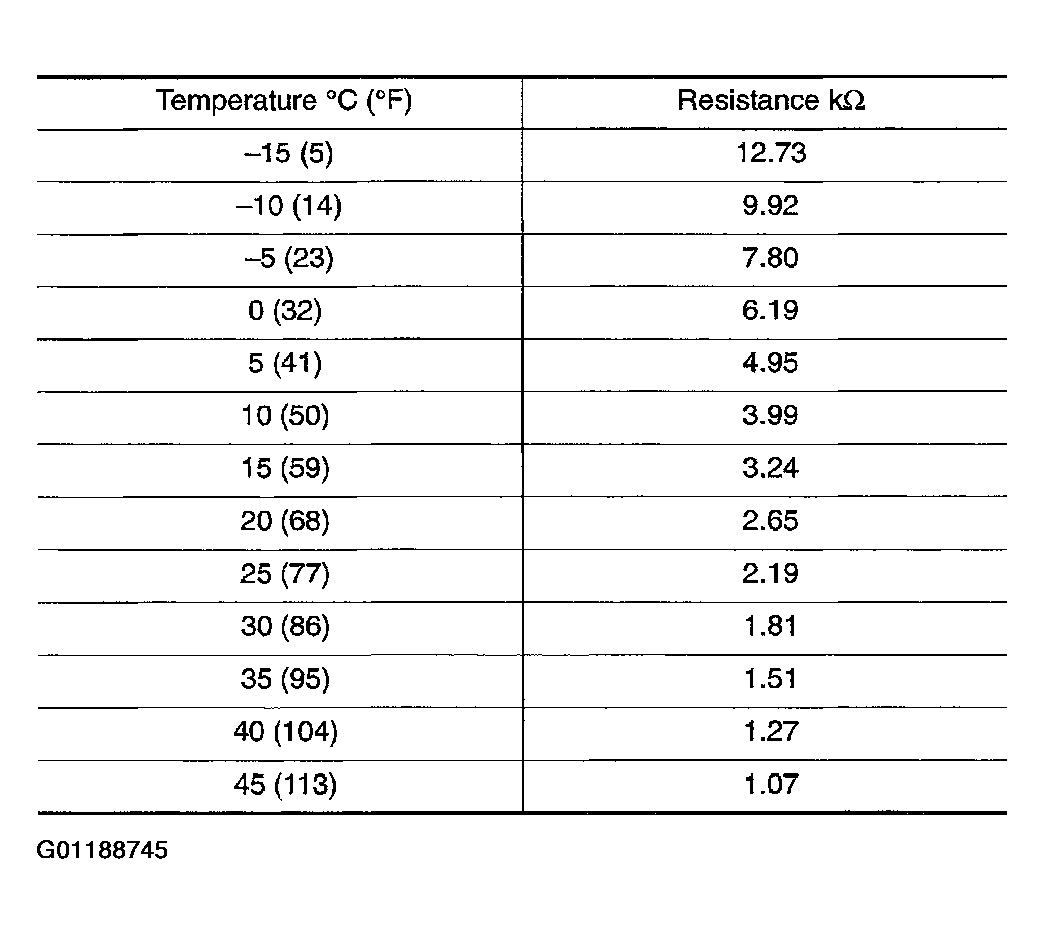

Fig 1: In-Vehicle Sensor Temperature Resistance Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace in-vehicle sensor.

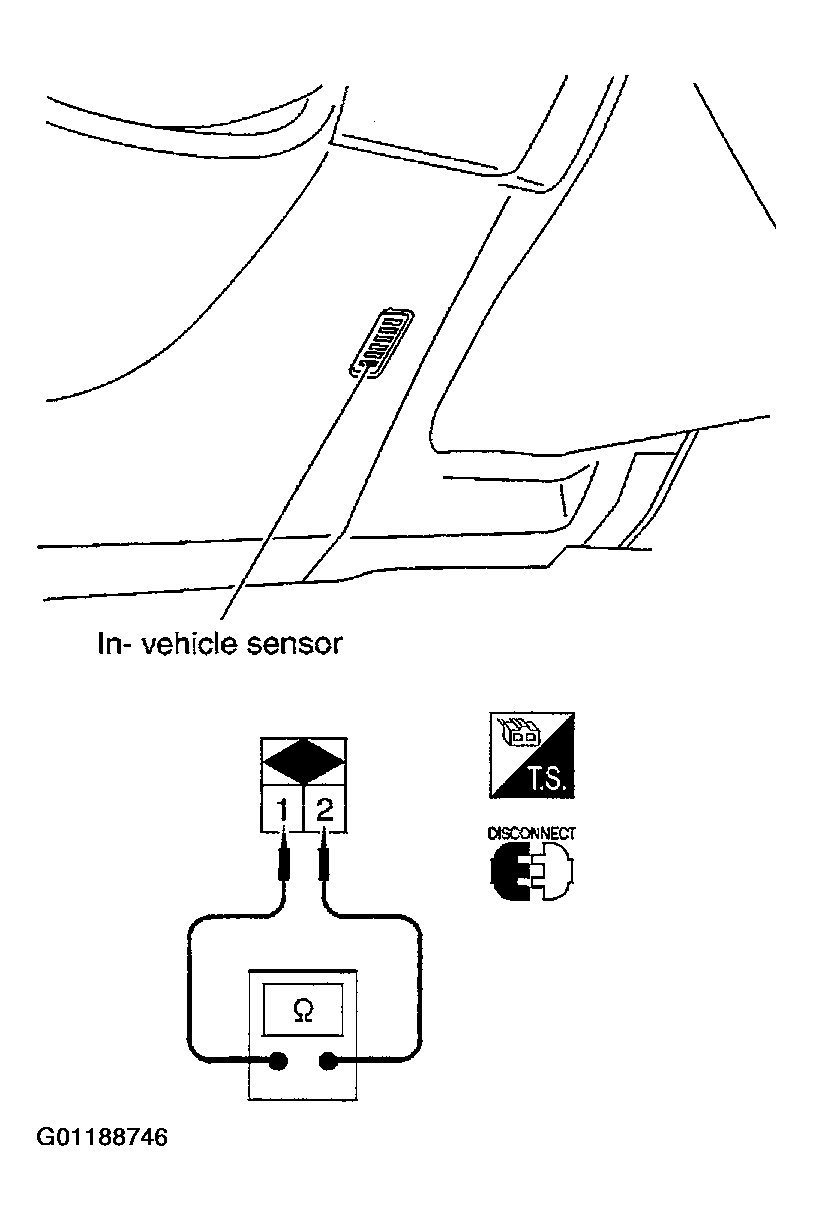

Fig 2: Locating In-Vehicle Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
