Removal & Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument driver lower panel. Refer to (C) INSTRUMENT DRIVER LOWER PANEL .
  2. Remove in-vehicle sensor.

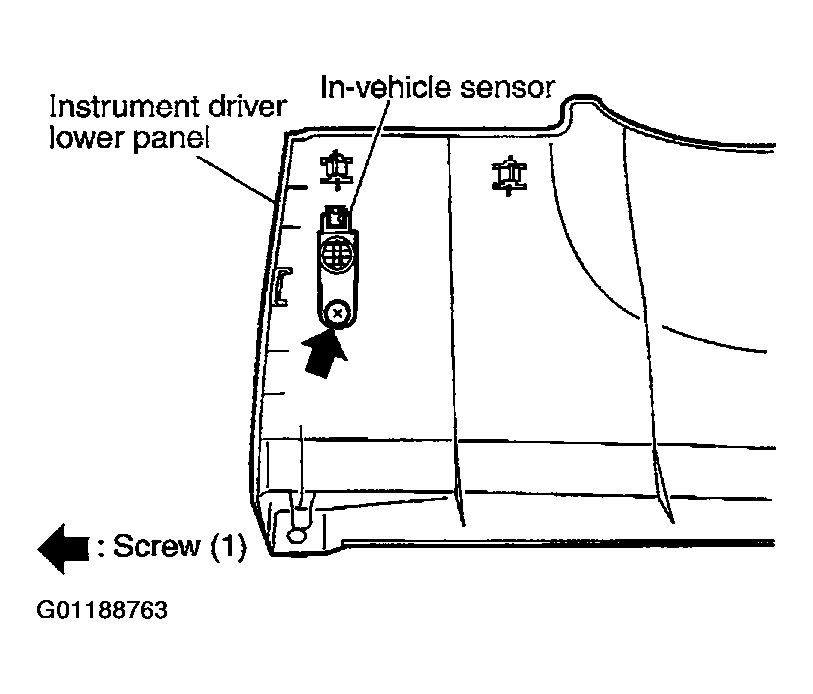

    Fig 1: Locating In-Vehicle Sensor
    G01188763Courtesy of NISSAN MOTOR CO., U.S.A.
