(E) Tilt Lever Mask

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Using a remover, ply and remove tilt lever mask.

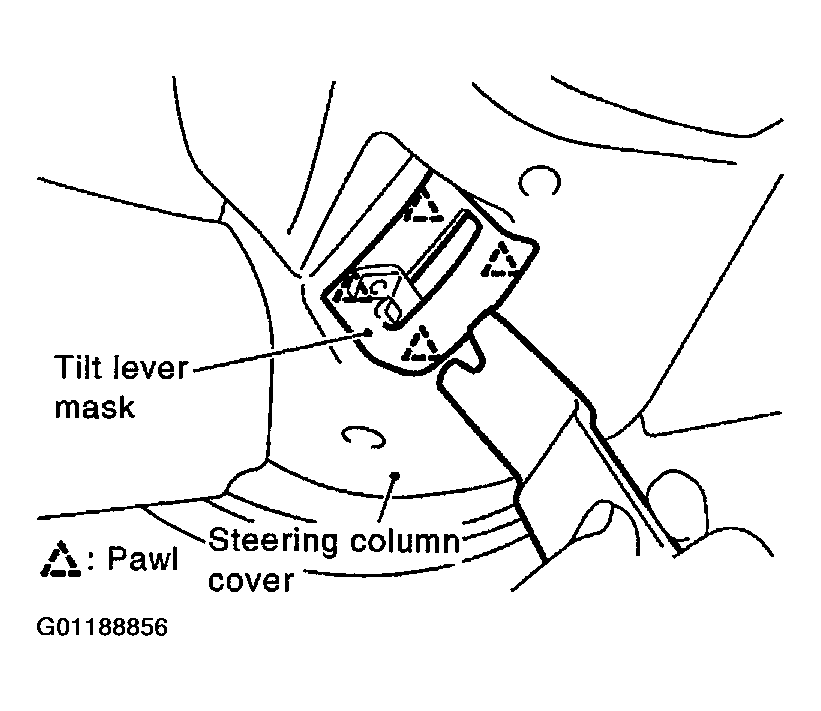

Fig 1: Removing Tilt Lever Mask
G01188856Courtesy of NISSAN MOTOR CO., U.S.A.
