Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

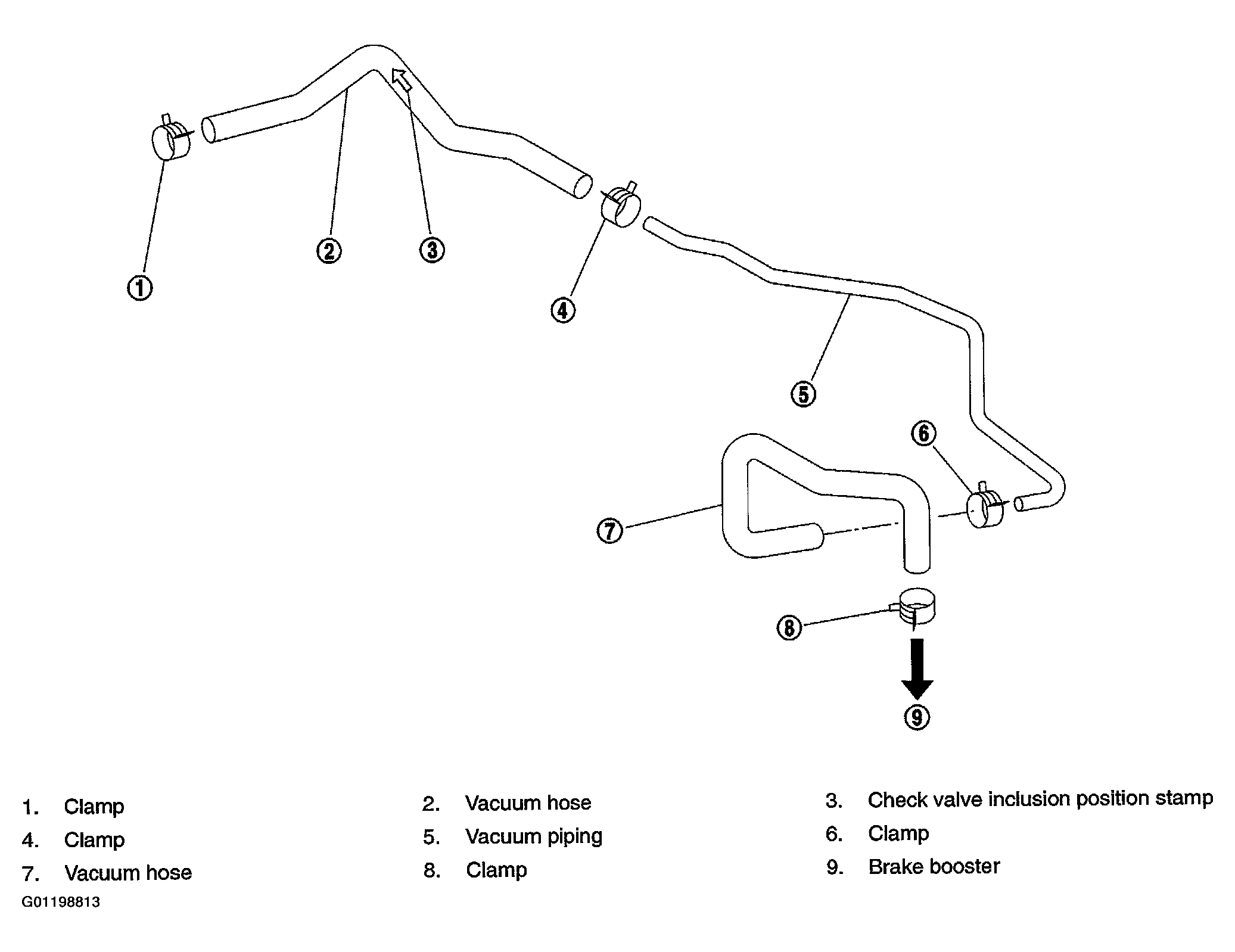

Fig 1: Removing And Installing Vacuum Lines
G01198813Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Because vacuum hose contains a check valve, it must be installed in the correct orientation. Refer to the stamp or label to confirm correct installation. The brake booster will not operate normally if the hose is installed in the wrong direction.
  • Insert the vacuum hose for at least 24 mm (0.94 in).
  • Do not use lubricating oil during assembly.

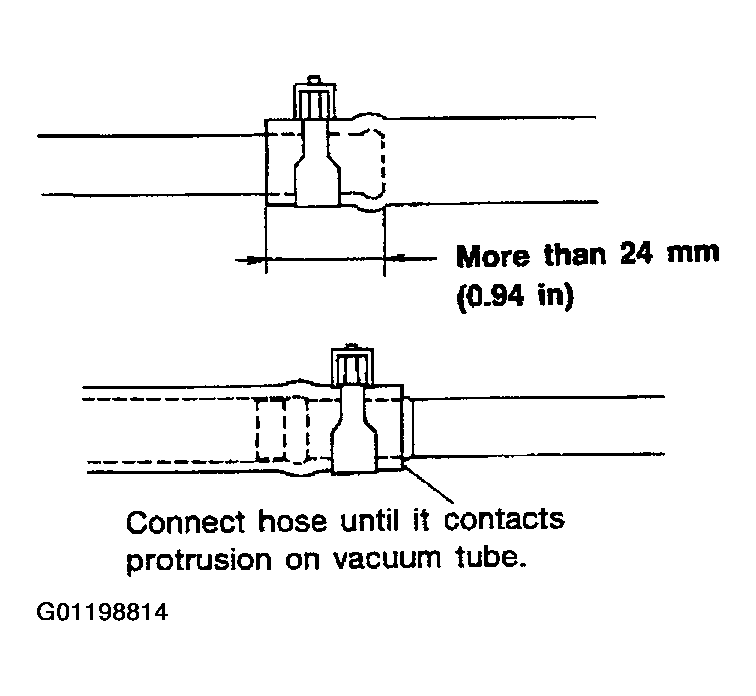

Fig 2: Inserting Vacuum Hose For At Least 24 mm
G01198814Courtesy of NISSAN MOTOR CO., U.S.A.
