Pad Wear Inspection

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Check the thickness of the pad from inspection hole of the cylinder body. Use a scale for inspection if necessary.

Standard thickness: 9.5 mm (0.374 in)

Repair limit thickness: 2.0 mm (0.079 in)

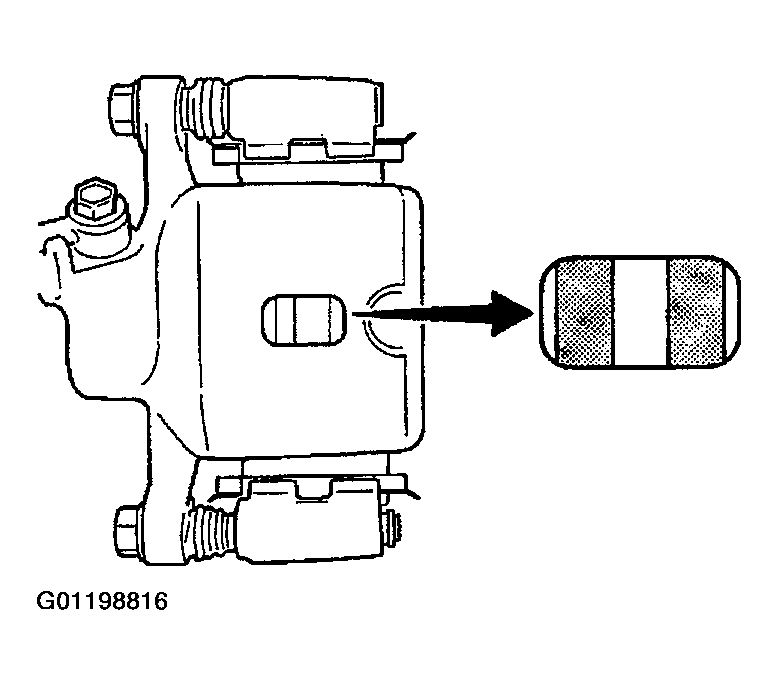

Fig 1: Checking Thickness Of Pad From Inspection Hole Of Cylinder Body

Courtesy of NISSAN MOTOR CO., U.S.A.
