Removal and Installation: Removal
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Adjusting mechanism, (Drive wire, Drive motor) cannot be disassembled.
- Before pedal drive cable removal, Pedals must be in the front most position. This keeps the proper position between accelerator and brake pedal.
- Remove front kick plate (driver side).
- Remove front body side welt (driver side).
- Remove instrument driver lower panel. Refer to INSTRUMENT PANEL ASSEMBLY .
- Remove dash side finisher (driver side).
- Remove parking brake pedal assembly. Refer to REMOVAL AND INSTALLATION .
- Disconnect accelerator pedal drive cable, drive motor harness connector (With adjustable pedal).
- Remove stop lamp switch and ASCD cancel switch from the pedal assembly.

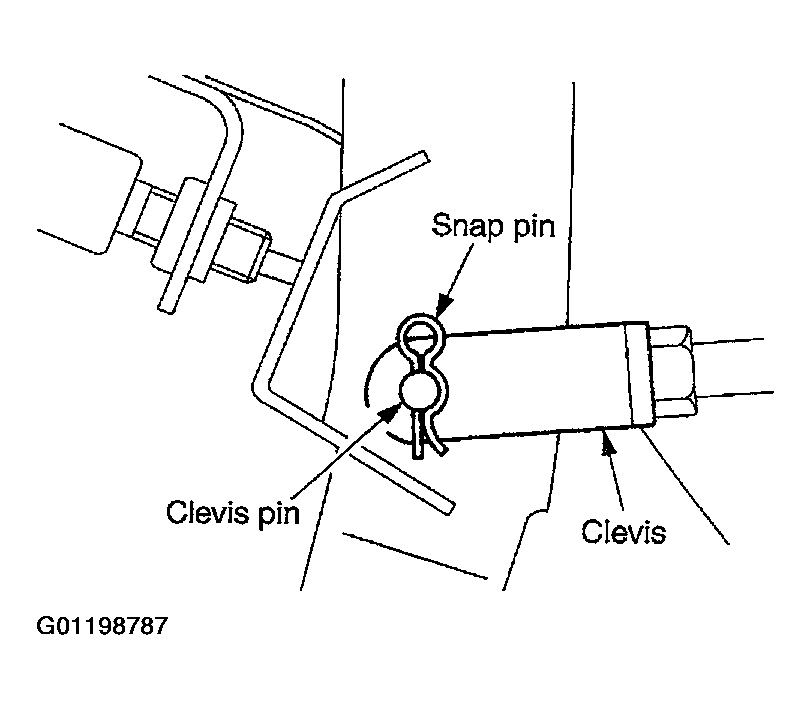

- Remove snap pin and clevis pin from input rod clevis.
- Remove mounting nuts from pedal bracket, and remove pedal assembly from vehicle.
