Removal and Installation: Installation

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the lock nut to adjust the input rod length so that the length B (in the figure) satisfies the specified value.

    Length "B": 125 mm (4.92 in)

  2. After adjusting "B", temporarily tighten the lock nut to install the booster assembly to the vehicle. At this time, make sure to install a gasket between the booster assembly and the dash panel.
  3. Connect the brake pedal with the clevis of the input rod.
  4. Install the pedal bracket mounting nuts and tighten them to the specified torque.

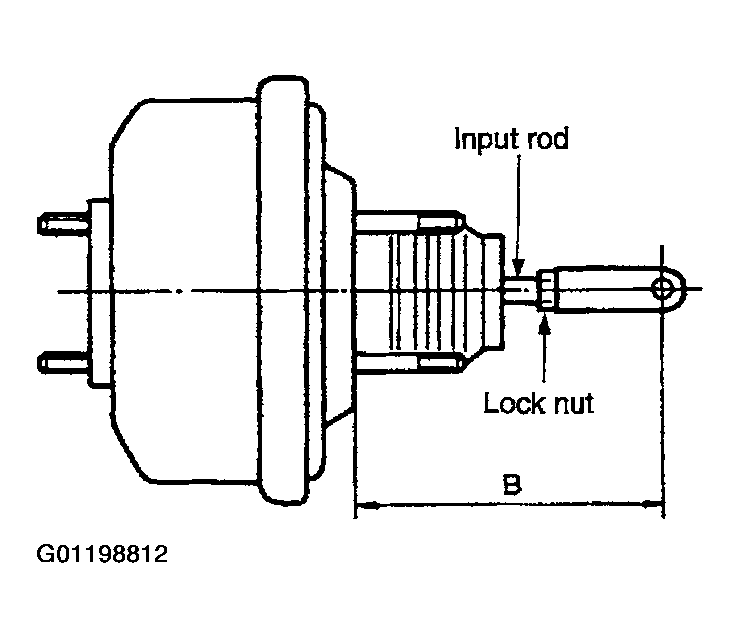

    Fig 1: Loosening Lock Nut To Adjust Input Rod Length
    G01198812Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install the master cylinder to the booster assembly. Refer to REMOVAL AND INSTALLATION .
  6. Adjust the height and play of the brake pedal.
  7. Tighten the lock nut of the input rod to the specified torque.
  8. Install vacuum hose to brake booster. Refer to VACUUM LINES .
  9. Install brake tube bracket to dash panel.
  10. Install cowl top cover.
  11. Refill new brake fluid and bleed air. Refer to BLEEDING BRAKE SYSTEM .
