DTC Confirmation Procedure

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If DTC Confirmation Procedure has been previously performed, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.

After the repair, touch ERASE on SELF-DIAG RESULTS and then perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-II

  1. Turn ignition switch ON. (Do not start engine.)
  2. Select DATA MONITOR mode for ENGINE with CONSULT-II

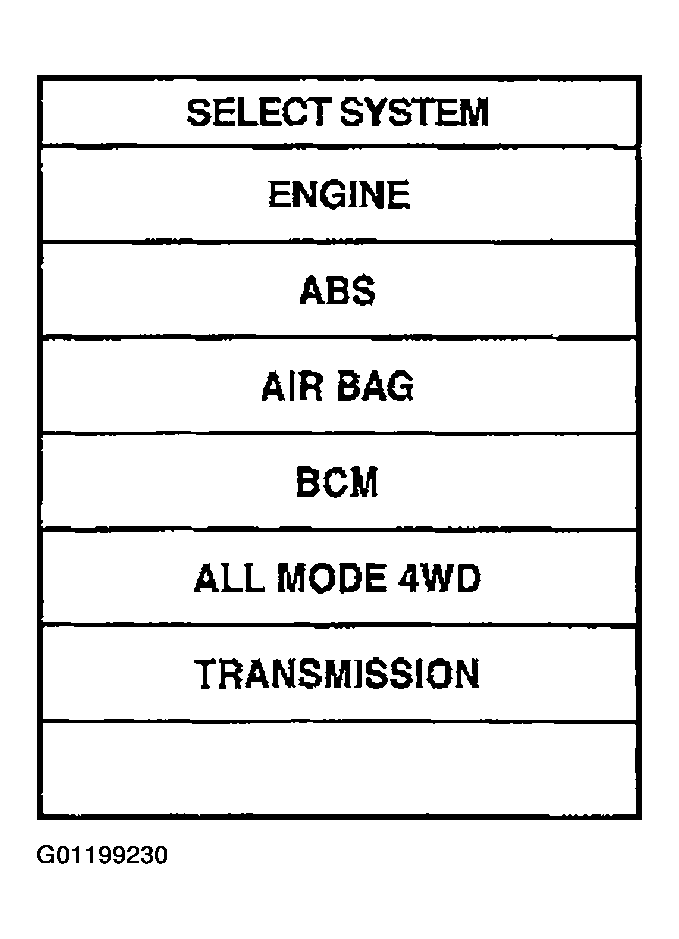

    Fig 1: CONSULT-II SELECT SYSTEM Display
    G01199230Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Start engine and wait for at least 6 seconds.
  4. If DTC is detected, go to DIAGNOSTIC PROCEDURE .

WITH GST

Follow the procedure, WITH CONSULT-II.
