DTC Confirmation Procedure

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC Confirmation Procedure has been previously performed, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.

After the repair, touch ERASE on SELF-DIAG RESULTS and then perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

Turn ignition switch ON. (Do not start engine.)
Select DATA MONITOR mode for TRANSMISSION with CONSULT-II.

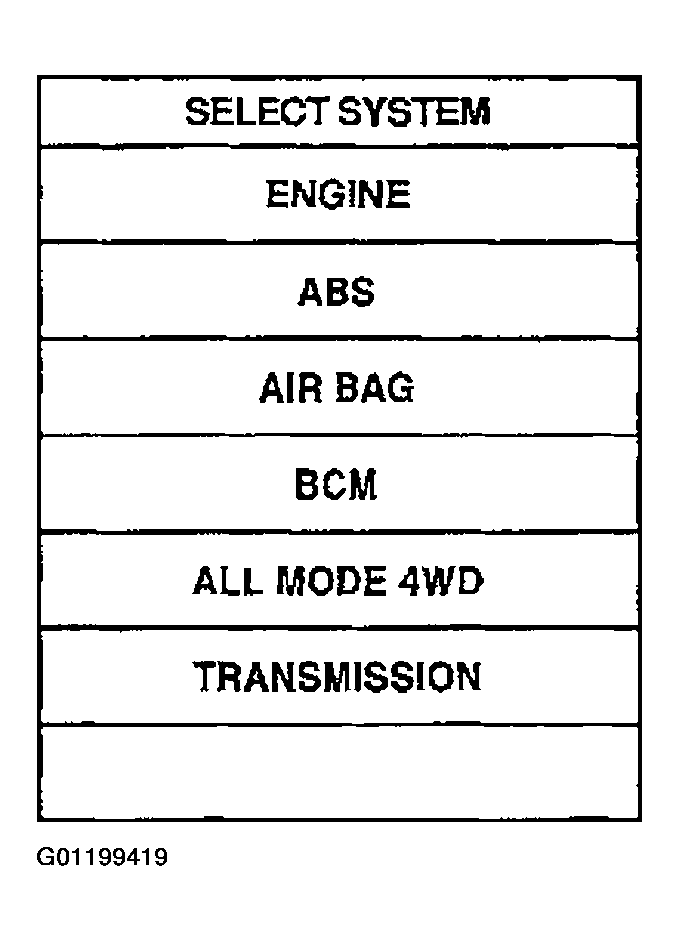

Fig 1: CONSULT-II TRANSMISSION Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and let it idle for 5 seconds.
If DTC is detected, go to DIAGNOSTIC PROCEDURE .
