DTC Confirmation Procedure

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Always drive vehicle at a safe speed.

NOTE: If DTC Confirmation Procedure has been previously performed, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.

After the repair, touch ERASE on SELF-DIAG RESULTS and then perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-II

Turn ignition switch ON. (Do not start engine.)
Select DATA MONITOR mode for ENGINE with CONSULT-II.

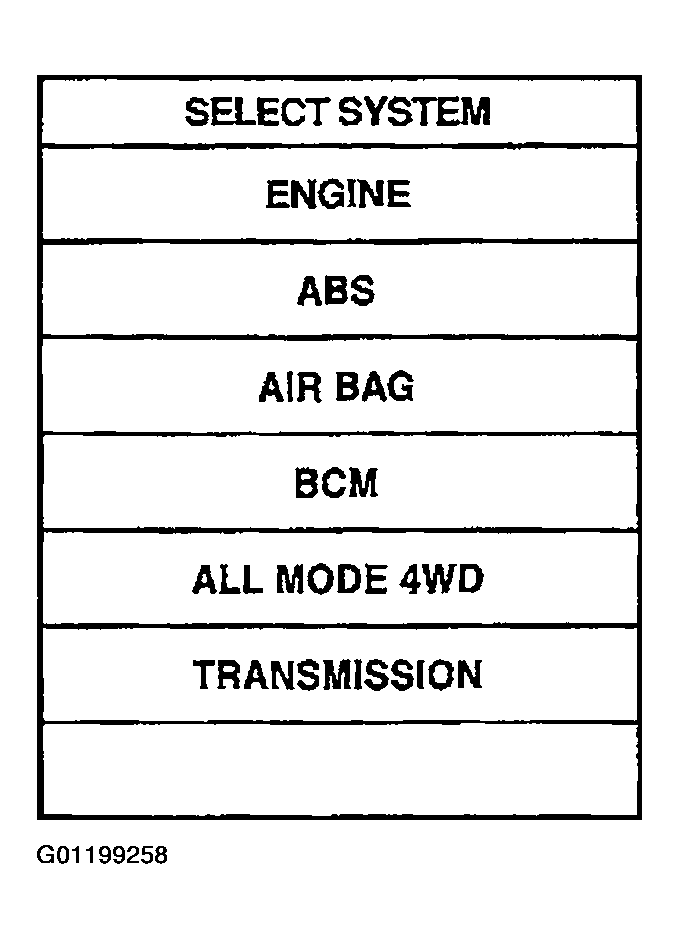

Fig 1: CONSULT-II ENGINE Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and maintain the following conditions for at least 10 minutes (Total). (It is not necessary to maintain continuously.)
VHCL SPEED SE: 10 km/h (6 MPH) or more

ENG SPEED: 450 rpm more than

ACC PEDAL OPEN: More than 1/8

Selector lever: D position
If DTC is detected, go to DIAGNOSTIC PROCEDURE .

WITH GST

Follow the procedure, With CONSULT-II.
