CVT Fluid Temperature Sensor

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Disconnect CVT unit harness connector.
  3. Check resistance between terminals 17 and 19.

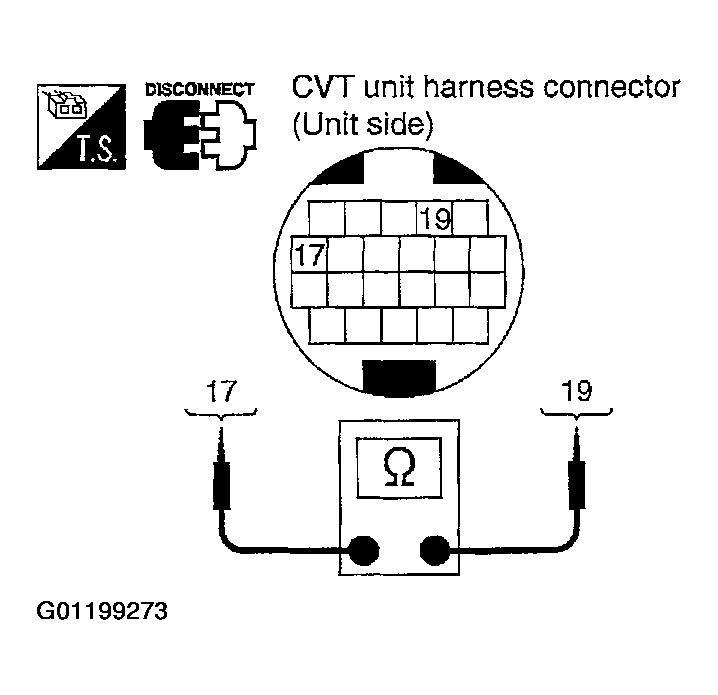

    Fig 1: Checking Resistance Between Terminals
    G01199273Courtesy of NISSAN MOTOR CO., U.S.A.

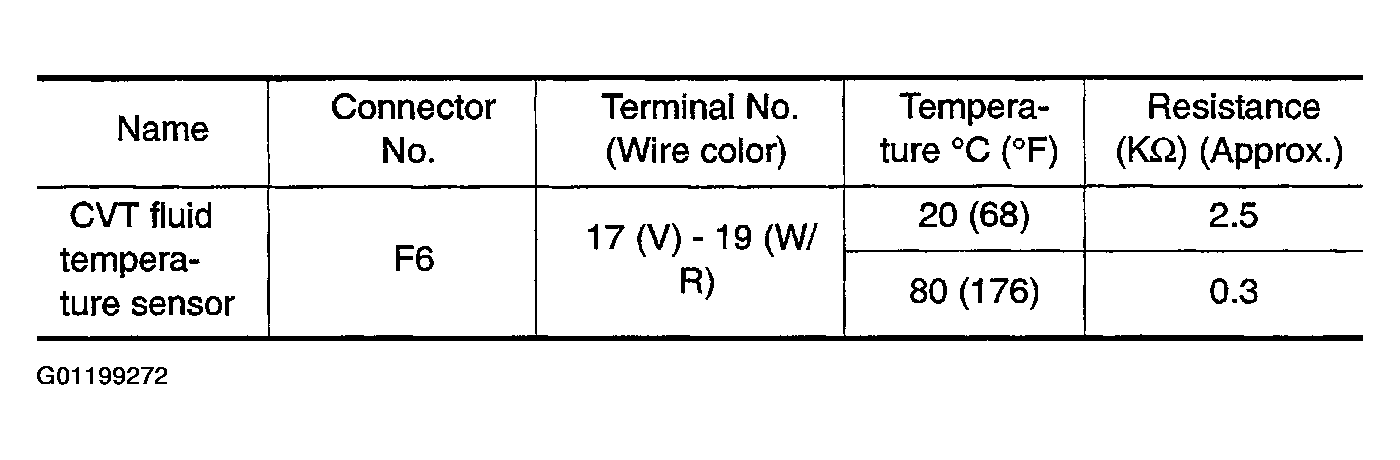

    Fig 2: CVT Fluid Temperature Sensor Check Table
    G01199272Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If NG, replace transaxle assembly. Refer to REMOVAL AND INSTALLATION .
