Removal And Installation: Installation
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal paying attention to the following.

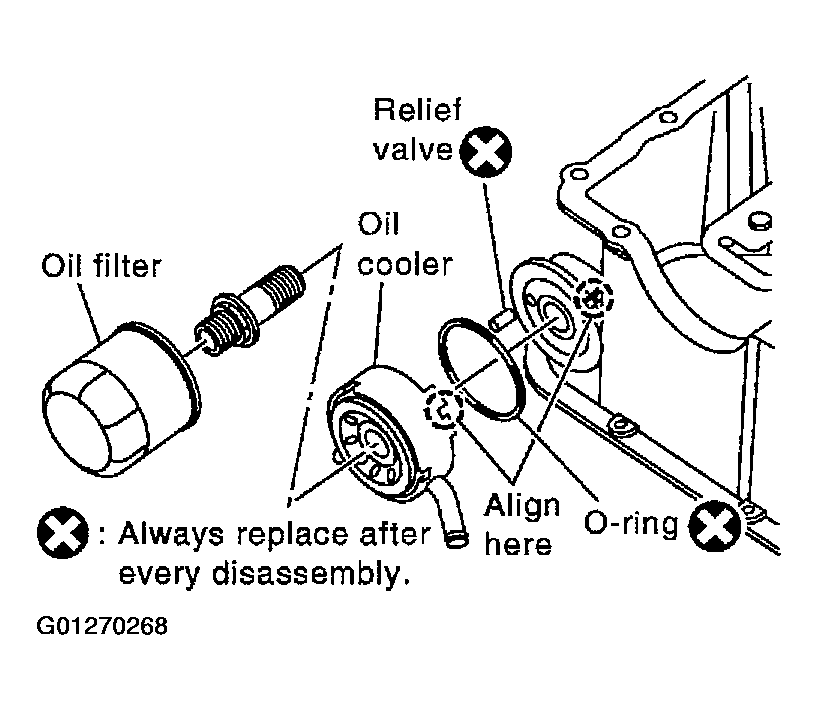

- Align cutout on oil cooler with protrusion on the upper oil pan side, and tighten connector bolt.
Courtesy of NISSAN MOTOR CO., U.S.A.
