Main Oil Pump

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install inner gear and outer gear in the main oil pump housing with their identification marks facing toward center case mounting surface side. Then, measure the side clearance. Refer to "Main Oil Pump", "CENTER CASE ".

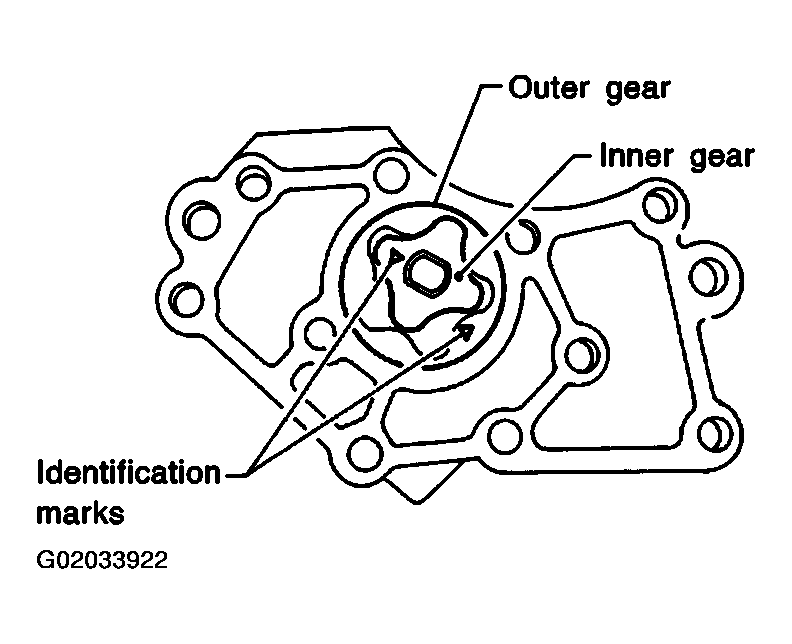

    Fig 1: Install Inner And Outer Gear In Main Oil Pump Housing
    G02033922Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install main oil pump assembly to center case assembly, and tighten bolts.

    : 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

  3. Install oil pump shaft to main oil pump, then install rear case assembly to center case.

    Refer to "FINAL ASSEMBLY ".

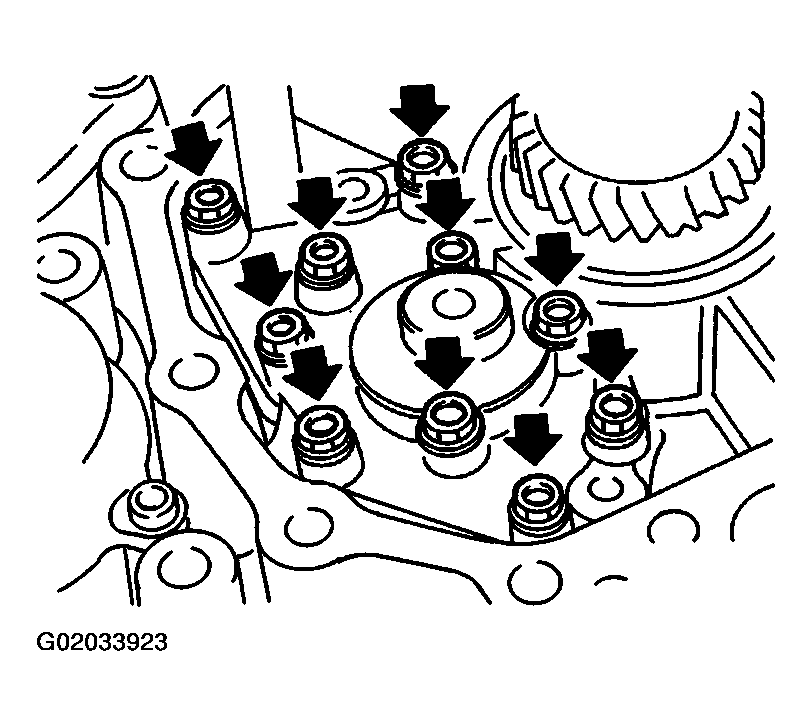

    Fig 2: Installing Main Oil Pump
    G02033923Courtesy of NISSAN MOTOR CO., U.S.A.
