Checking Steering Wheel Turning Torque

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Park vehicle on a level in the dry surface, set parking brake.
  2. Remove driver air bag module from the steering wheel. Refer to "AIR BAG RESTRAINT SYSTEMS " article.
  3. Start the engine at idle, make steering fluid reach to normal operating temperature, then check steering wheel turning torque with the pre-load gauge (special service tool).
    1. Turning torque: Less than 7.45 N.m (0.76 kg-m, 66 in-lb)

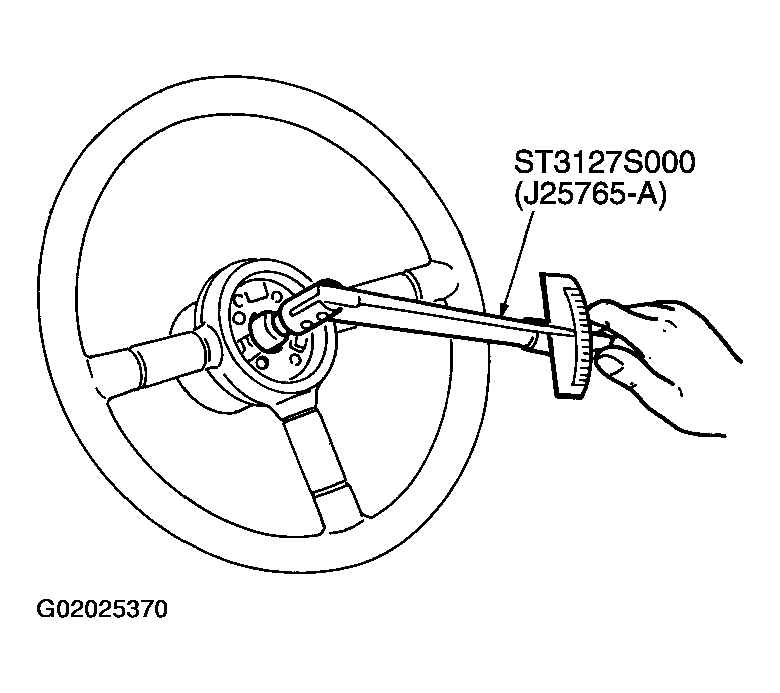

    Fig 1: Measuring Steering Wheel Turning Torque
    G02025370Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If steering wheel turning force is out of specification, check relief hydraulic pressure of the oil pump. Refer to "ON-VEHICLE SERVICE  ".
