Cluster Lid C

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

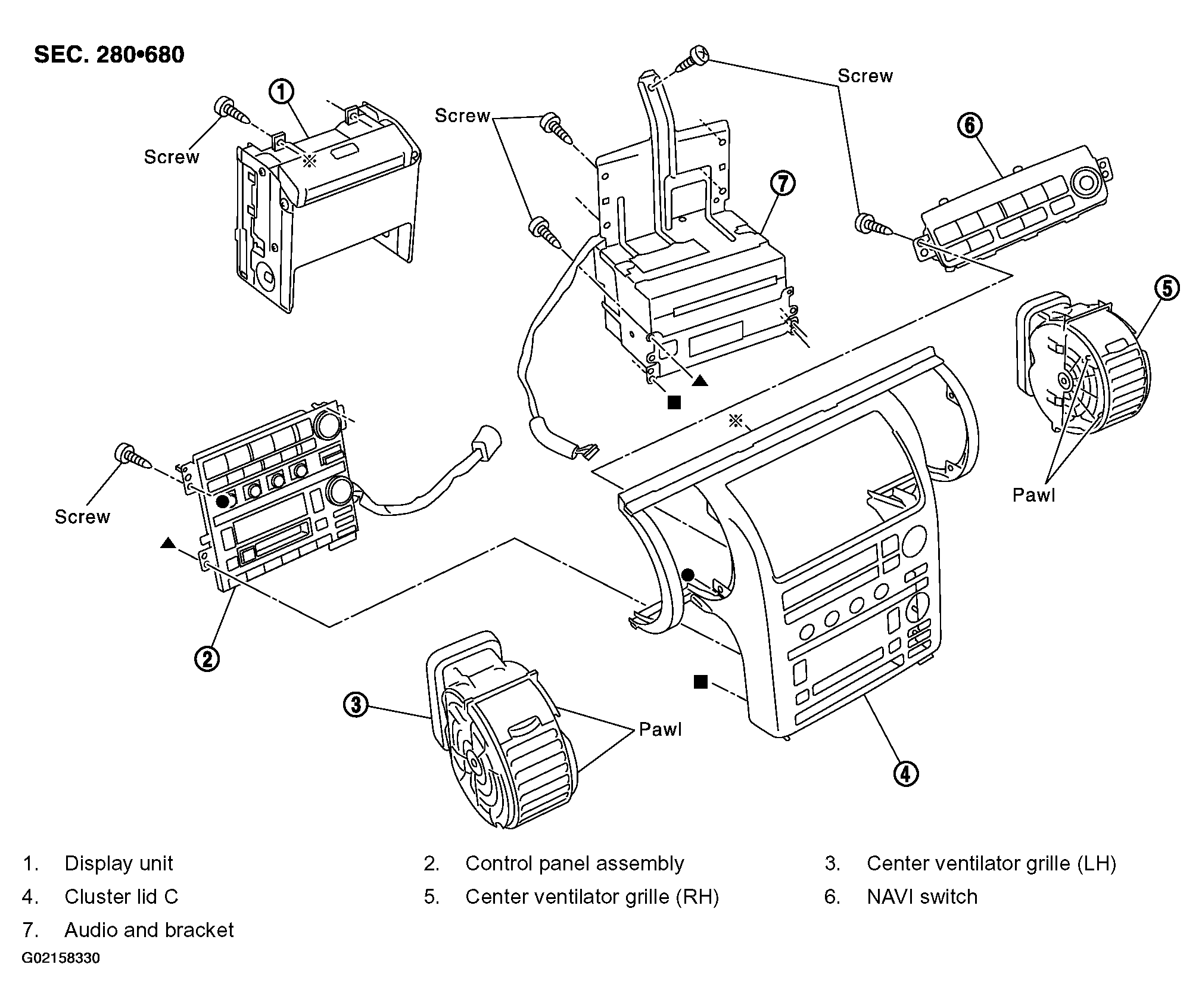

Fig 1: Disassembling CLUSTER LID C
G02158330Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Disconnect pawl and remove center ventilator grille (RH side only).
  2. Remove display unit assembly and audio unit, NAVI switch and control panel assembly.

    Refer to REMOVAL AND INSTALLATION OF AUDIO UNIT and REMOVAL AND INSTALLATION FOR A/C AND AUDIO CONTROLLER .
