Trouble Diagnosis Chart by Symptom

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Always check the "Work Flow" before troubleshooting. Refer to "WORK FLOW ".
Always check key fob battery before replacing key fob.

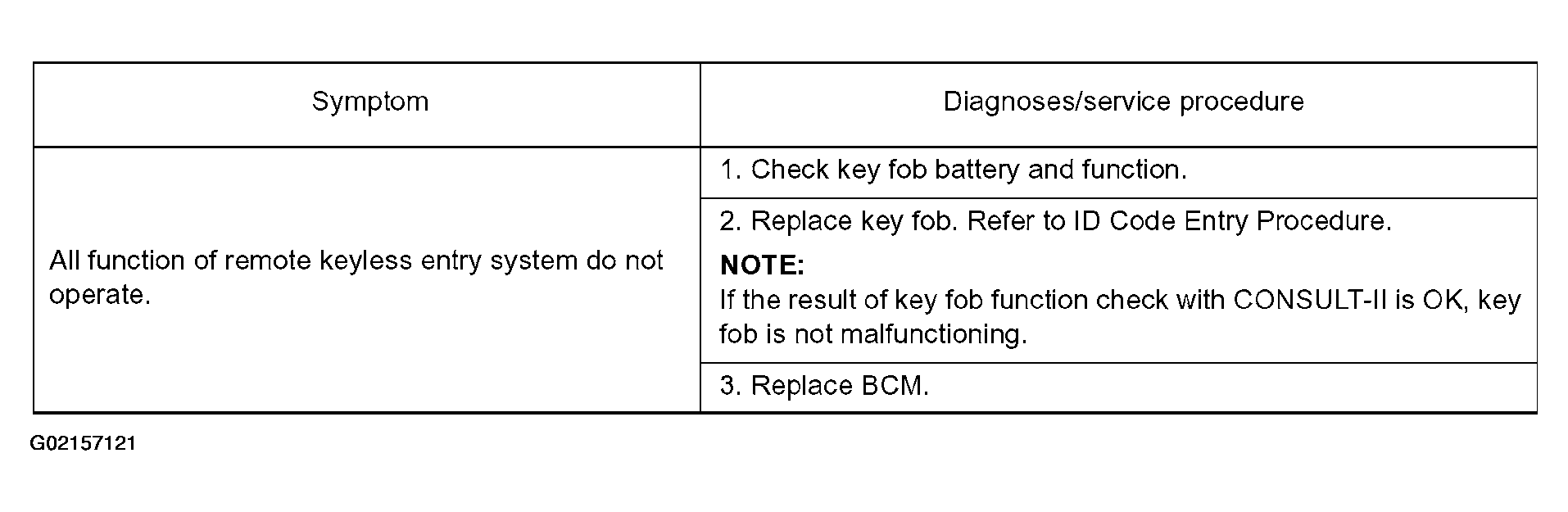

Fig 1: Trouble Diagnosis Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

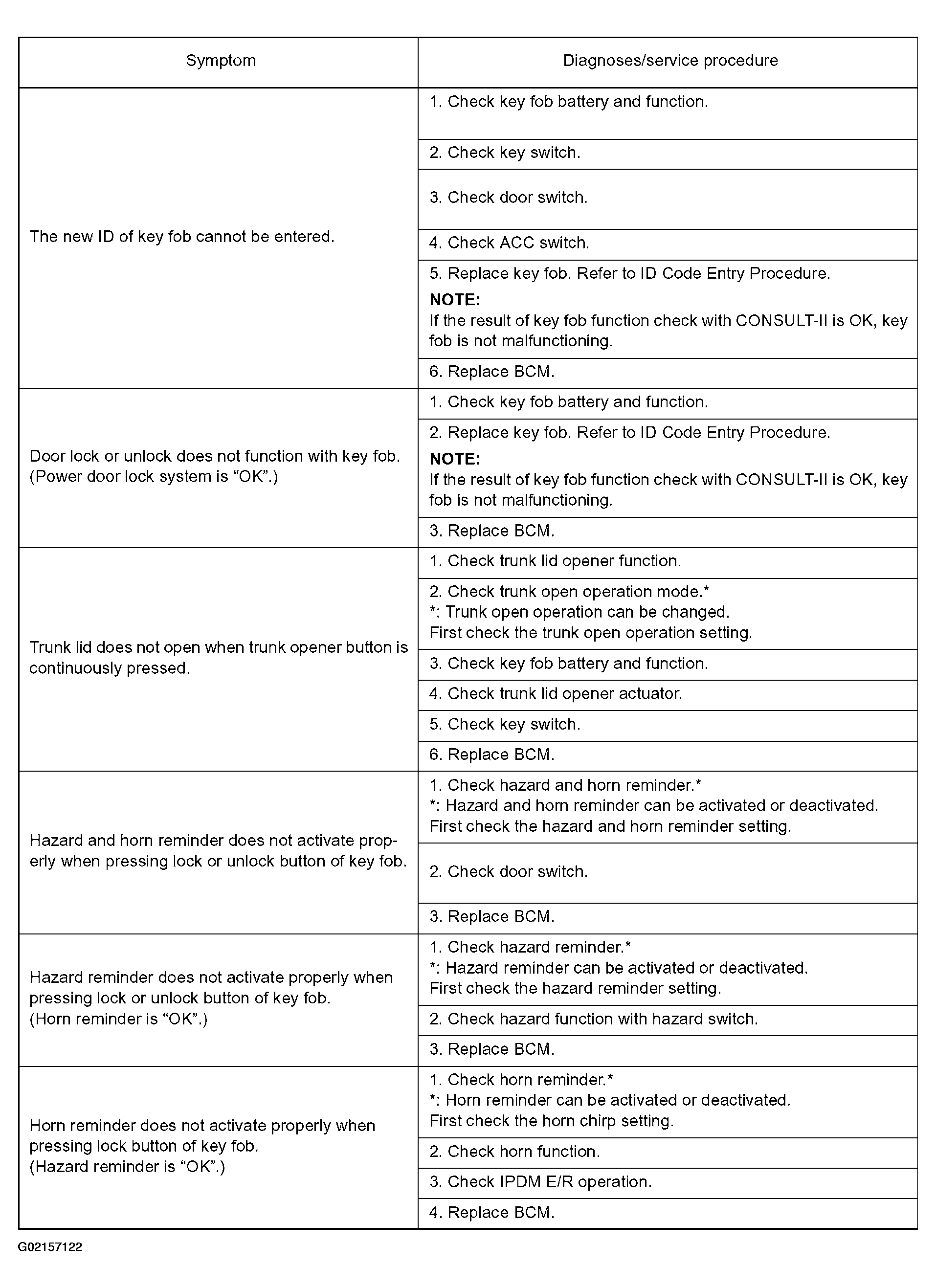

Fig 2: Trouble Diagnosis Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

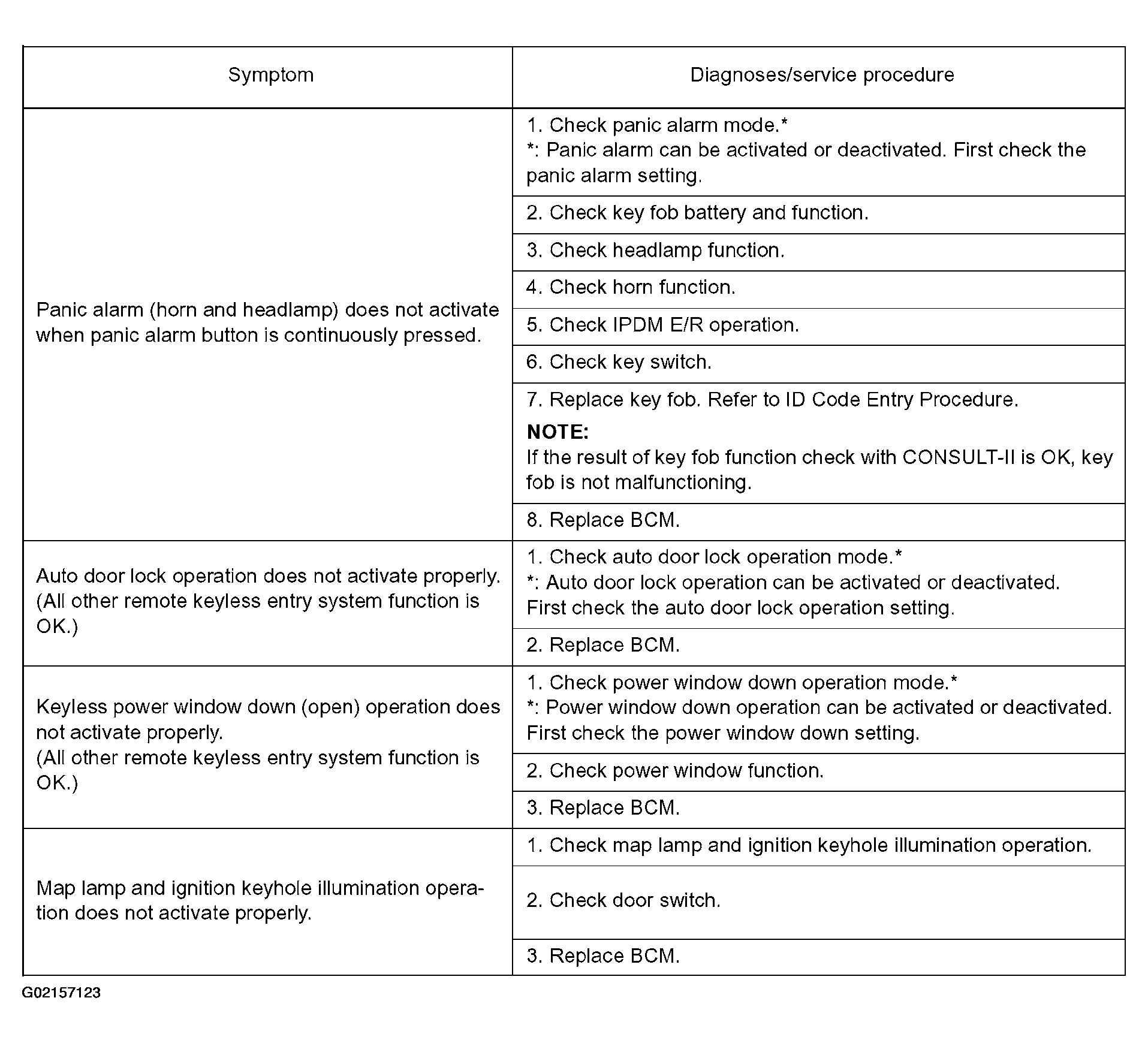

Fig 3: Trouble Diagnosis Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
