Rear Propeller Shaft: Components

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

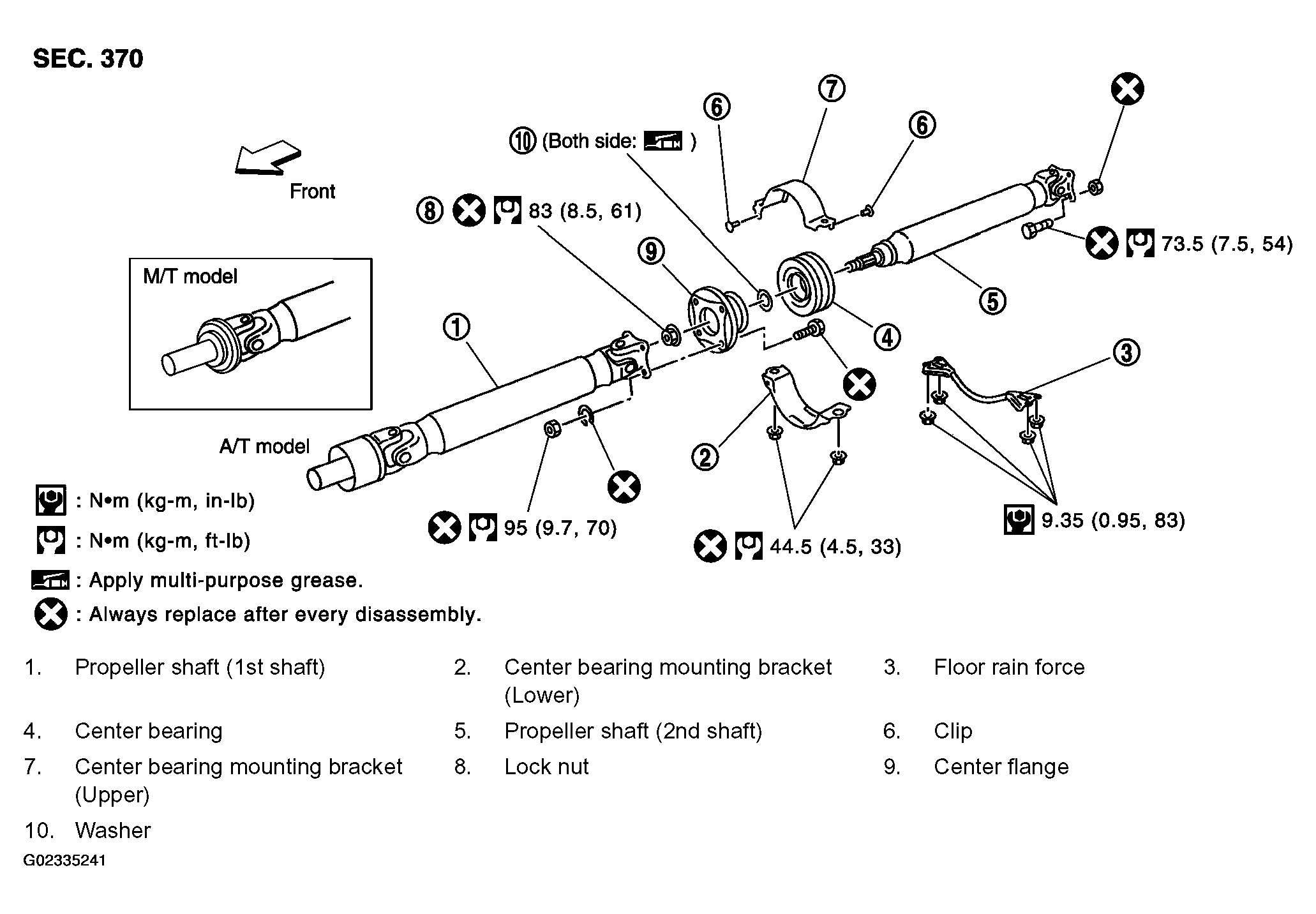

Fig 1: Removing/Installing Propeller Shaft Components - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

The joint cannot be disassembled.
The center bearing can be disassembled. Refer to "DISASSEMBLY AND ASSEMBLY OF CENTER BEARING "
