Removal and Installation of NAVI Switch: Removal

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove audio unit and display unit assembly. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  3. Remove screws (2) and remove NAVI switch from cluster lid C.

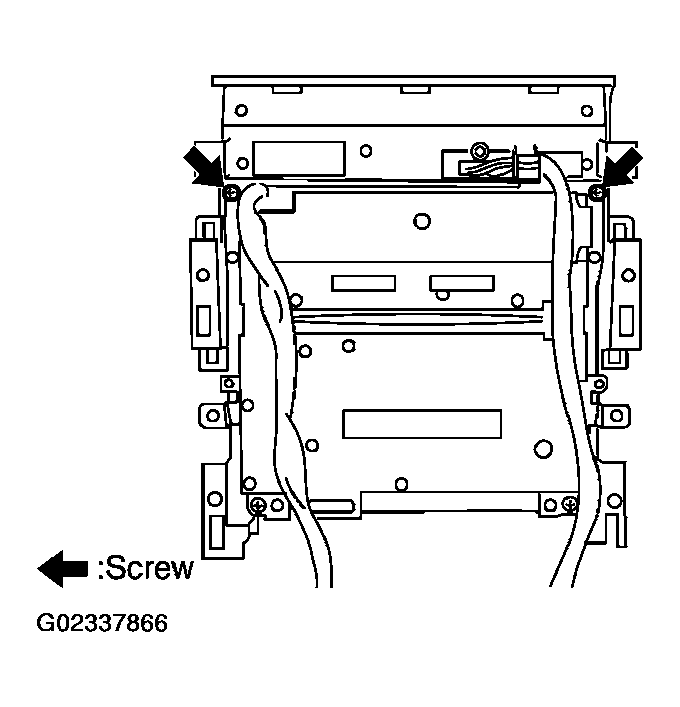

    Fig 1: Locating Screws Of NAVI Switch Removal From Cluster Lid
    G02337866Courtesy of NISSAN MOTOR CO., U.S.A.
