Trouble Diagnosis Chart By Symptom

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Always check the "Work Flow" before troubleshooting. Refer to "Work Flow "
Always check keyfob battery before replacing keyfob.

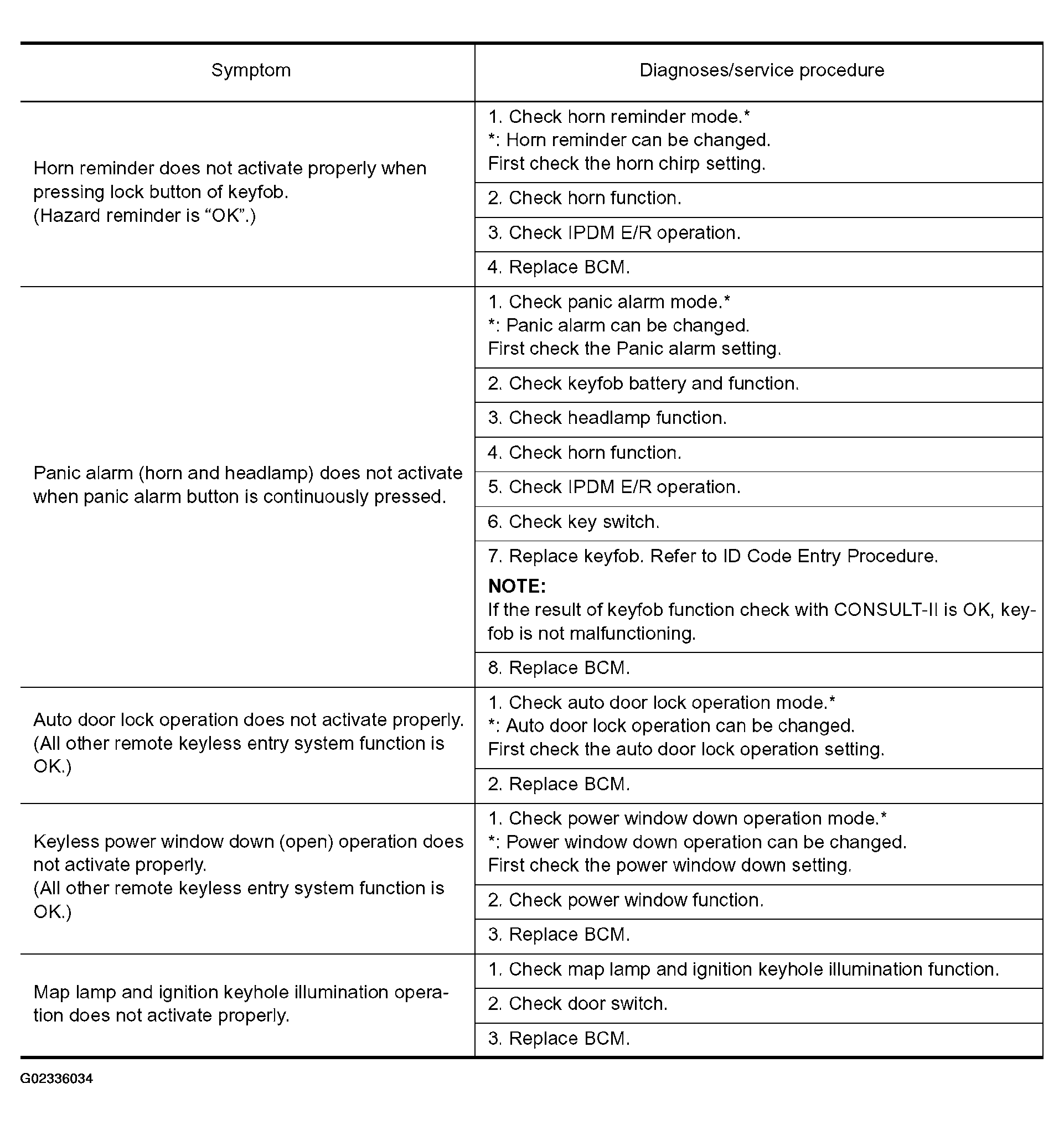

Fig 1: Symptom And Diagnosis Procedure Chart (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

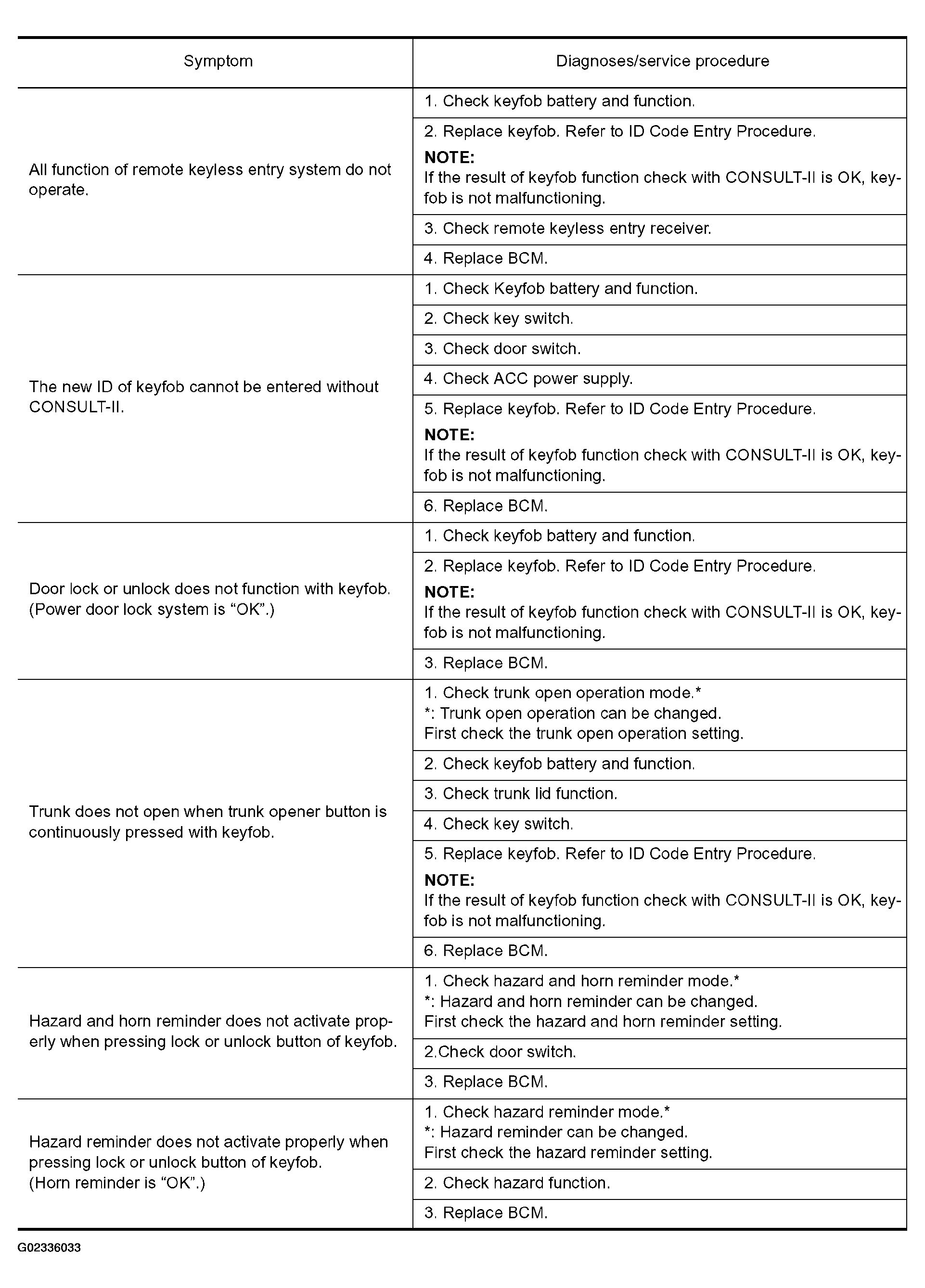

Fig 2: Symptom And Diagnosis Procedure Chart (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
