Solenoid Valve Operation Chart

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

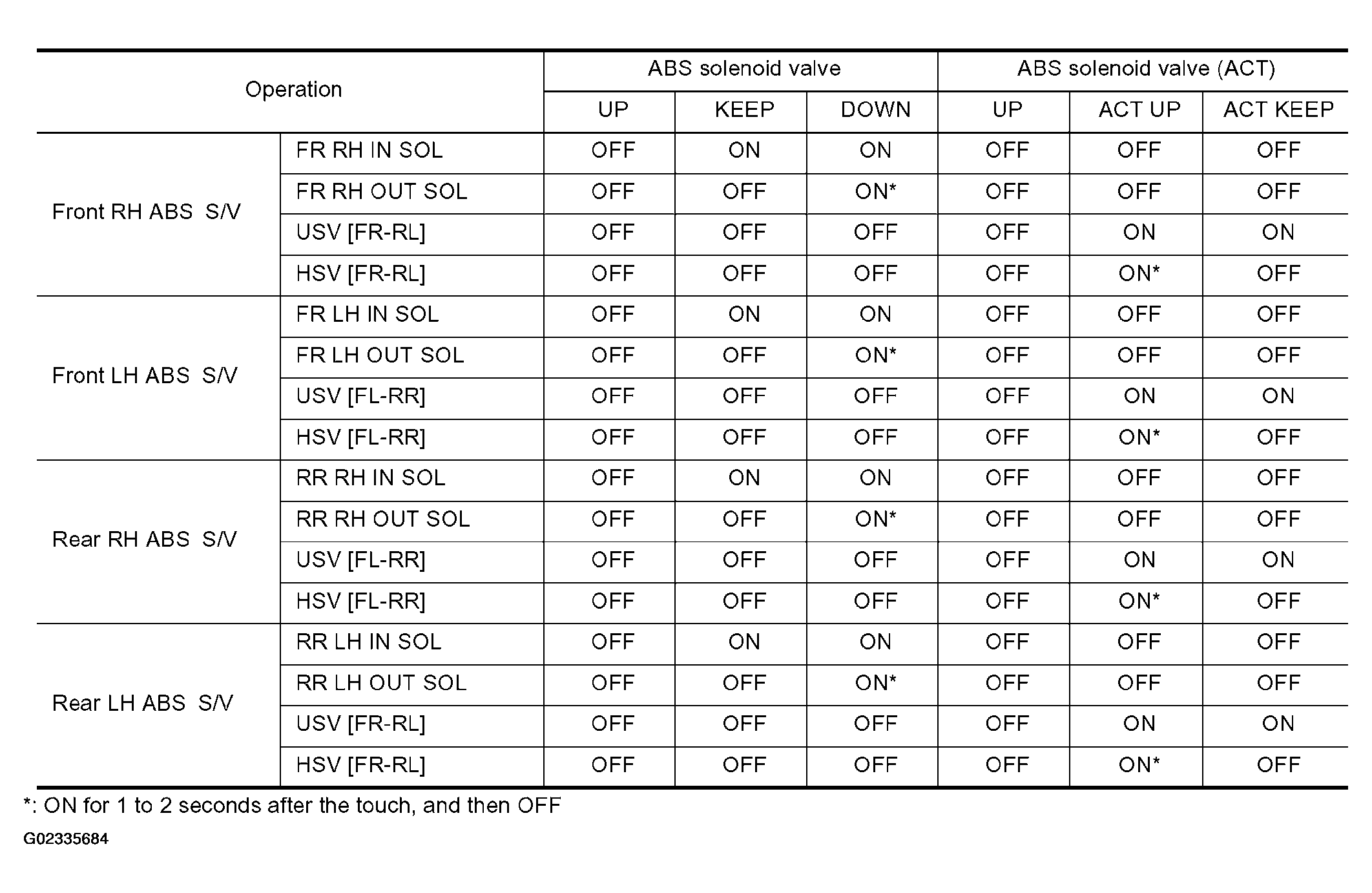

Fig 1: Solenoid Valve Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST STOP" is displayed approximately 10 seconds after operation starts.
After "TEST STOP" is displayed, touch "BACK" and perform the test from the step 6.
