Triple-Cone Synchronizer

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

The 2nd gear is equipped with a triple-cone synchronizer to reduce the operating force of the shift lever as shown.

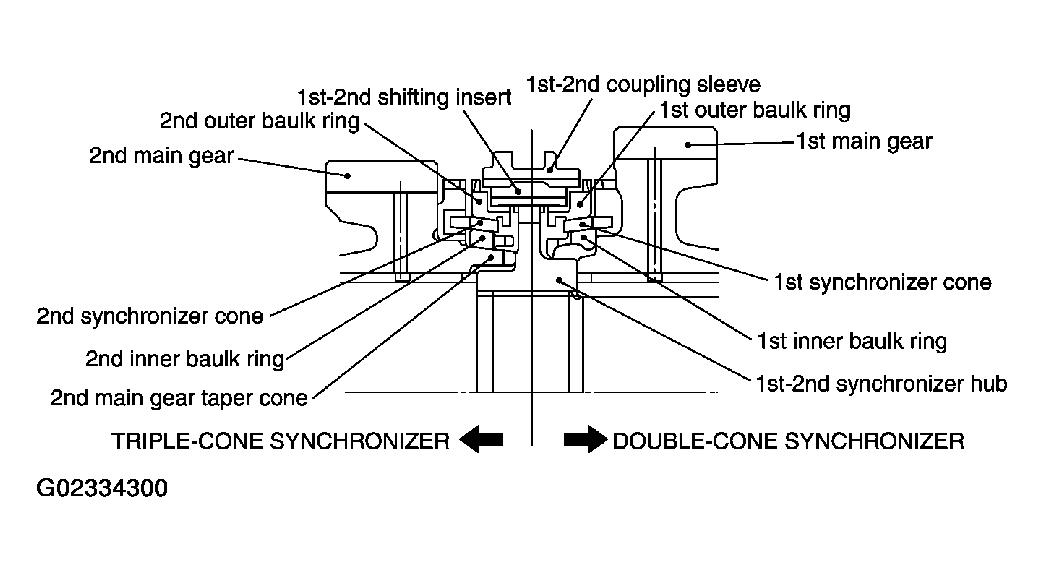

Fig 1: Identifying Double And Triple Cone Synchronizer
G02334300Courtesy of NISSAN MOTOR CO., U.S.A.
