Wiring Diagram - MIL/DL

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRUCIT ELEMENTS - G35 COUPE .

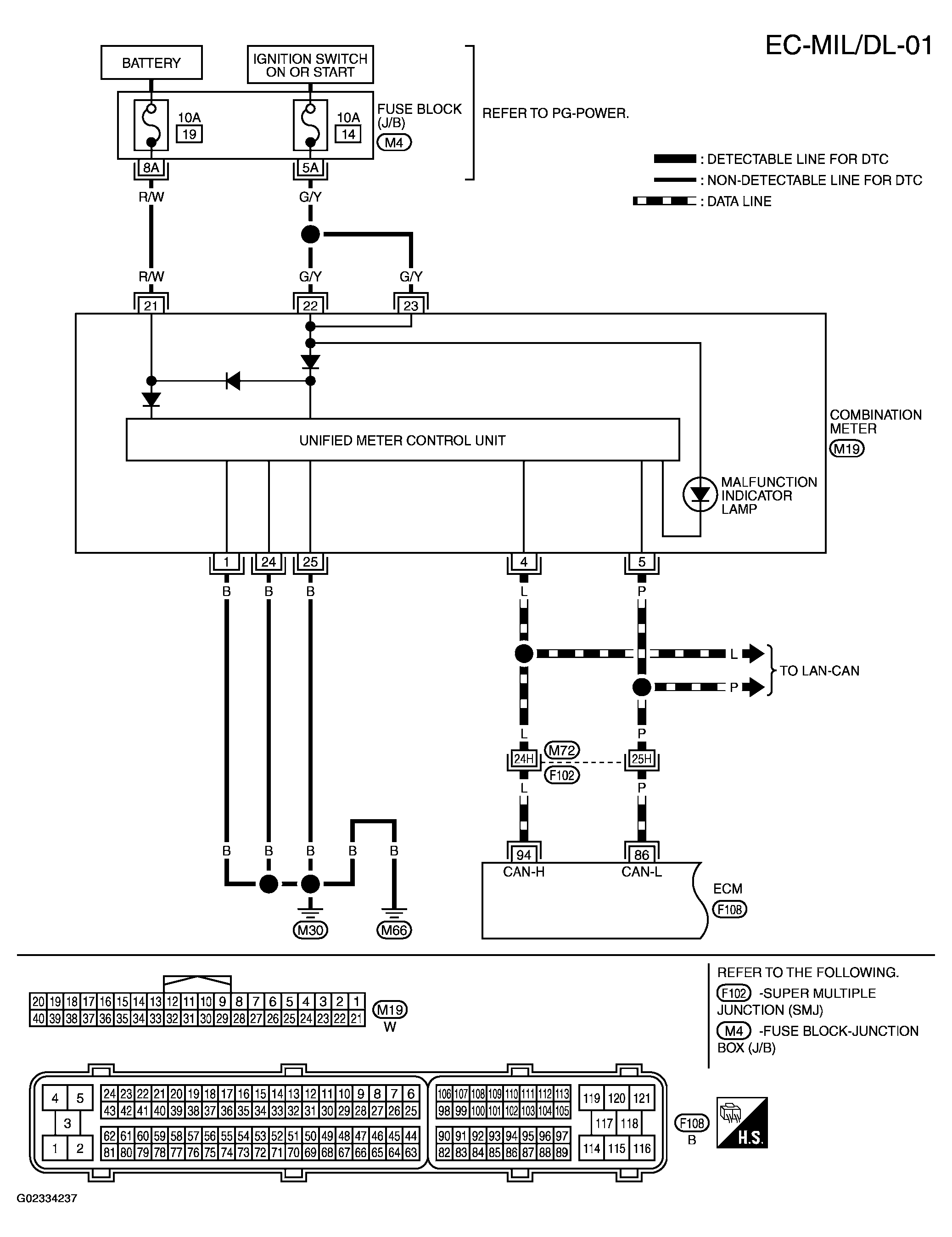

Fig 1: Wiring Diagram - (EC-MIL/DL-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

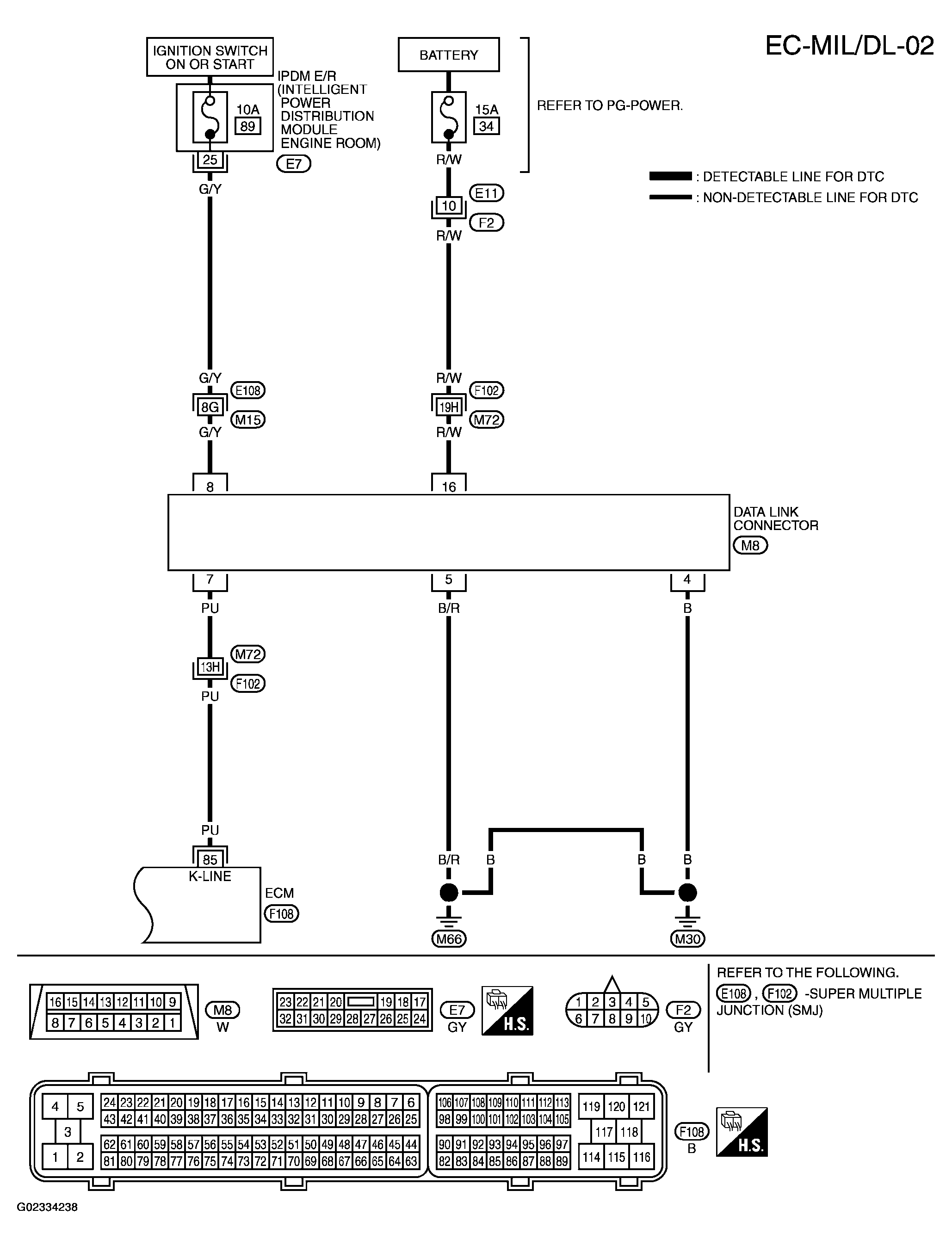

Fig 2: Wiring Diagram - (EC-MIL/DL-02)

Courtesy of NISSAN MOTOR CO., U.S.A.
