Wiring Diagram - ASC/BS

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRUCIT ELEMENTS - G35 COUPE .

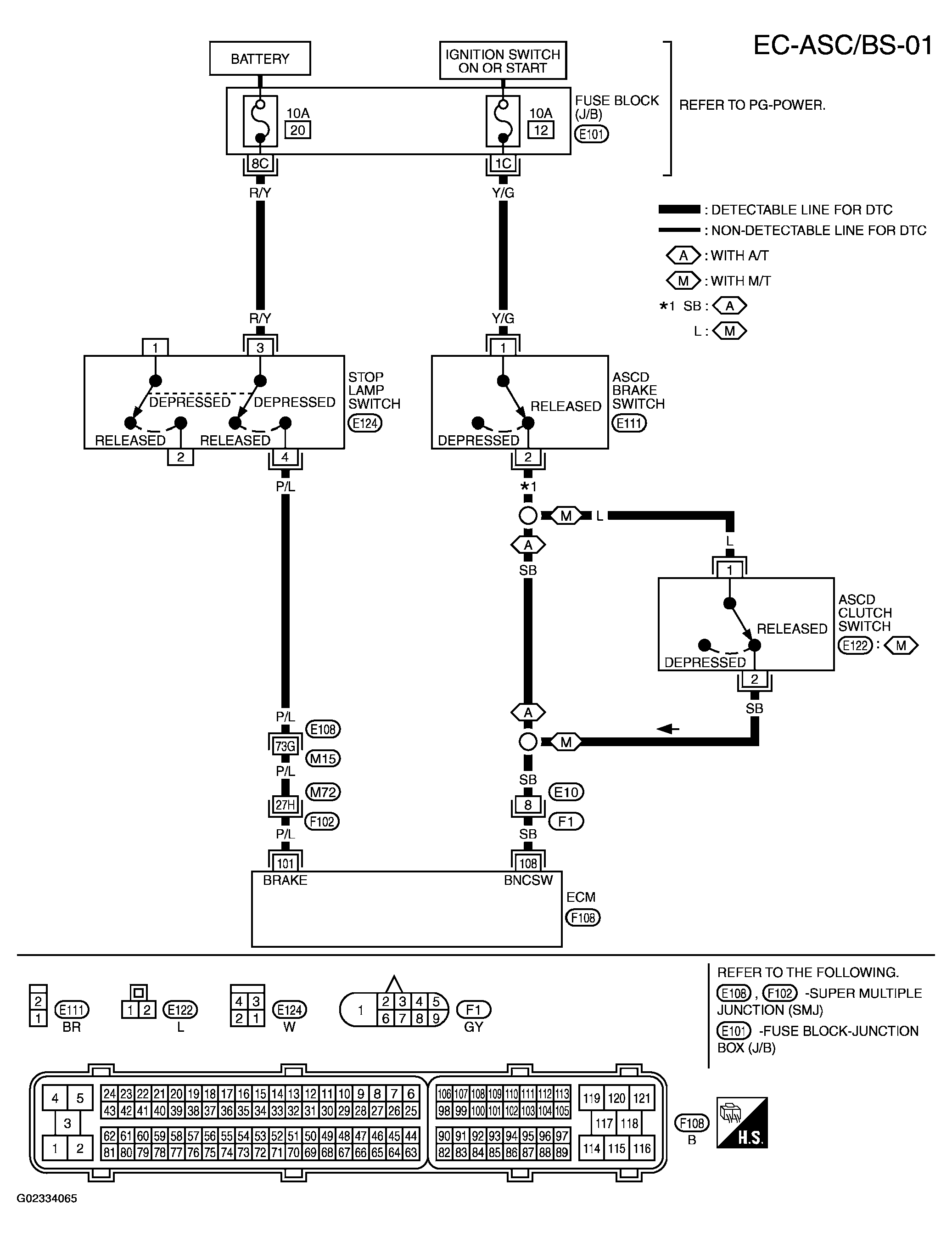

Fig 1: Wiring Diagram (EC-ASC/BS-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

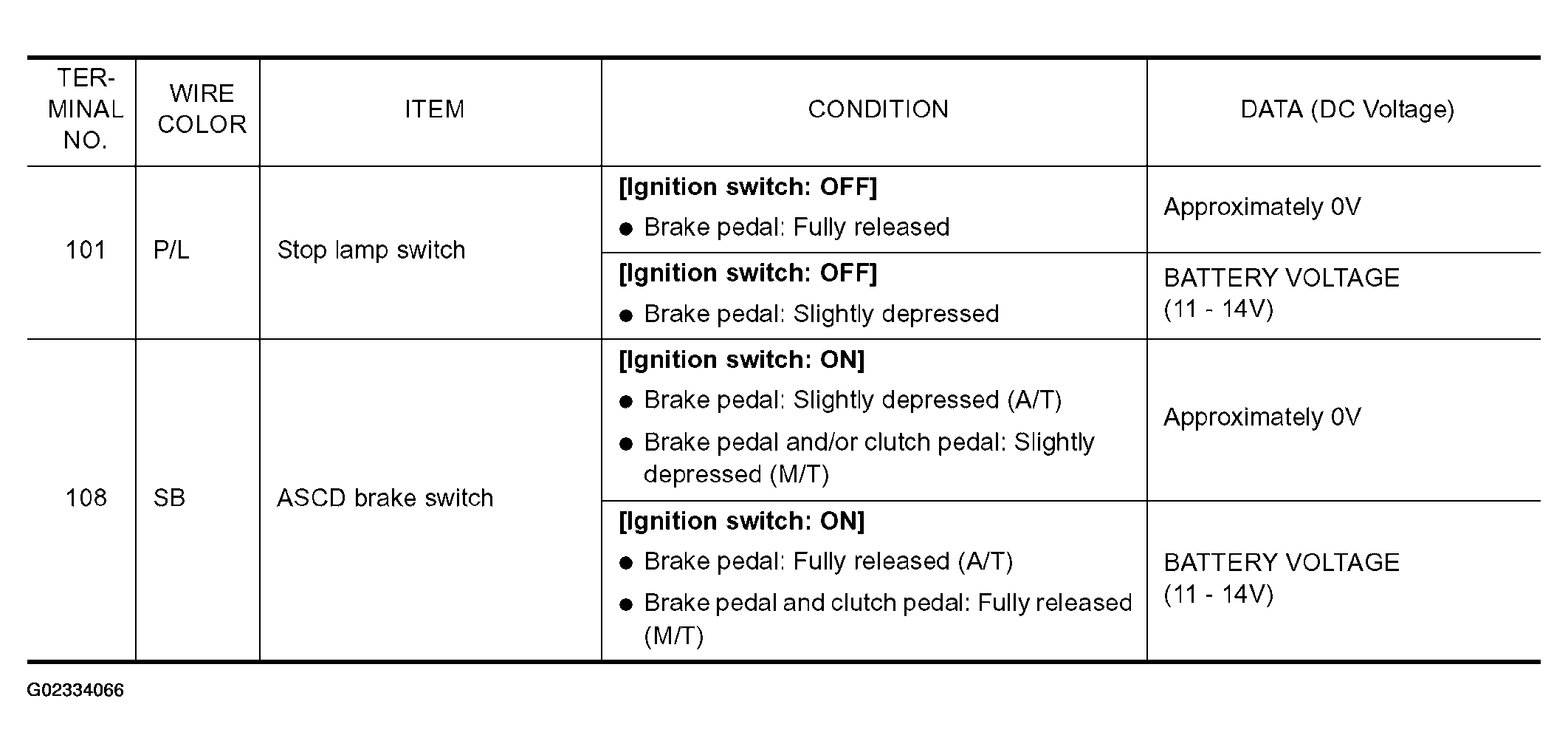

Fig 2: ECM Terminals Voltage Reference Value Chart - DTC P1572

Courtesy of NISSAN MOTOR CO., U.S.A.
