With Consult-II

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine and warm it up to normal operating temperature.
  2. Select "A/F SEN1 (B1)" or "A/F SEN1 (B2)" in "DATA MONITOR" mode with CONSULT-II.
  3. Check "A/F SEN1 (B1)" or "A/F SEN1 (B2)" indication.

    If the indication is constantly approx. 0V, go to Diagnostic Procedure .

    If the indication is not constantly approx. 0V, go to next step.

  4. Turn ignition switch OFF, wait at least 10 seconds and then restart engine.
  5. Drive and accelerate vehicle to more than 40 km/h (25 MPH) within 20 seconds after restarting engine.
  6. Maintain the following conditions for about 20 consecutive seconds.

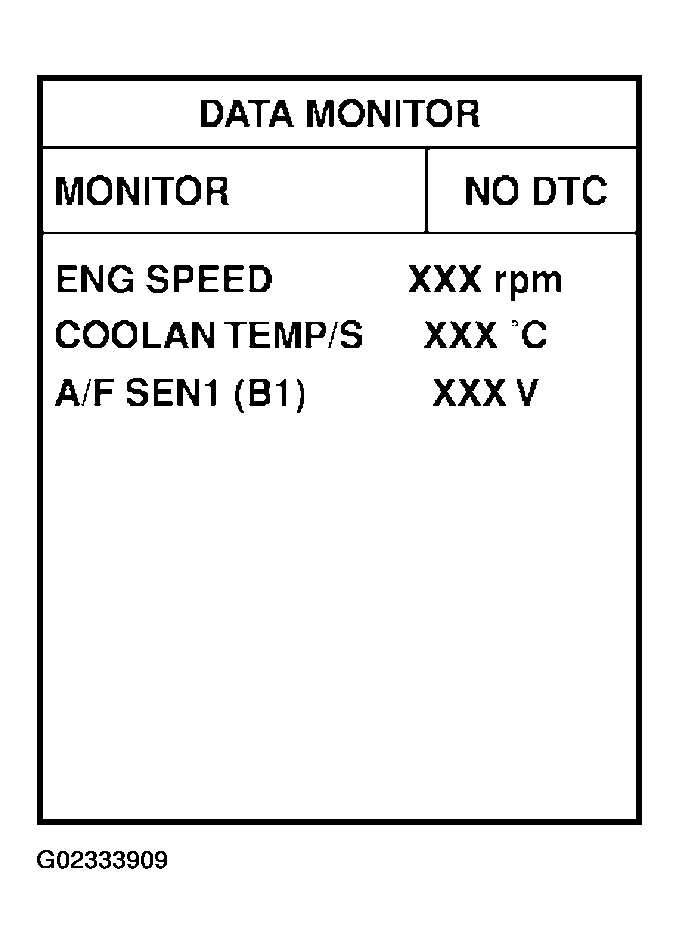

    Fig 1: Identifying Air Fuel Ratio Sensor 1 Display On Data Monitor Mode
    G02333909Courtesy of NISSAN MOTOR CO., U.S.A.
    CONDITION

    ENG SPEED 1,000 - 3,200 RPM
    VHCL SPEED SE More than 40 km/h (25 MPH)
    B/FUEL SCHDL 1.5 - 9.0 msec
    Shift lever Suitable position
    NOTE:
    • Keep the accelerator pedal as steady as possible during the cruising.
    • If this procedure is not completed within 1 minute after restarting engine at step  4, return to step  4.
  7. If 1st trip DTC is displayed, go to Diagnostic Procedure  .
