DTC P1124, P1126: Throttle Control Motor Relay: Wiring Diagram

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRUCIT ELEMENTS - G35 COUPE .

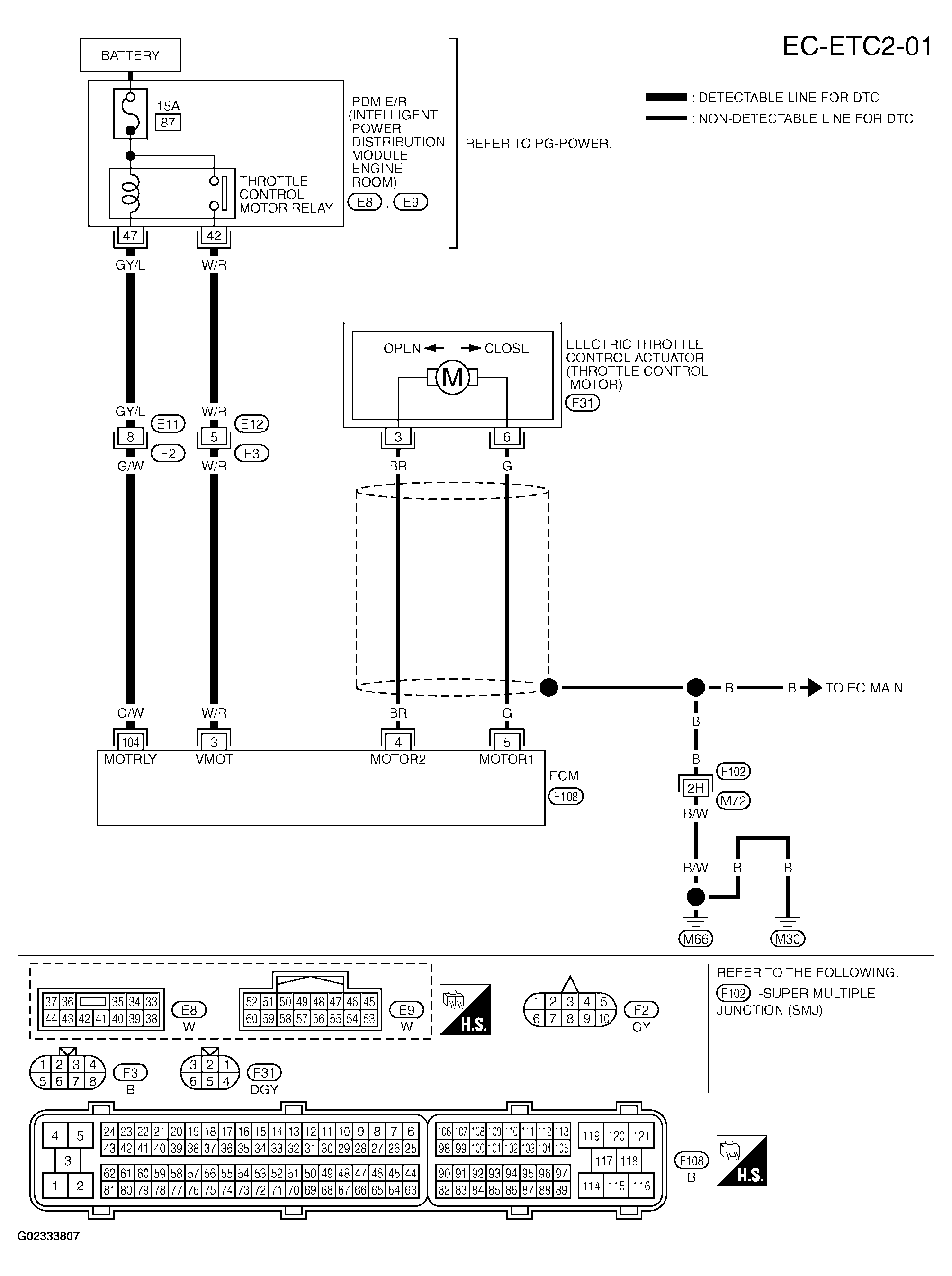

Fig 1: Wiring Diagram (DTC P01124, P01126)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

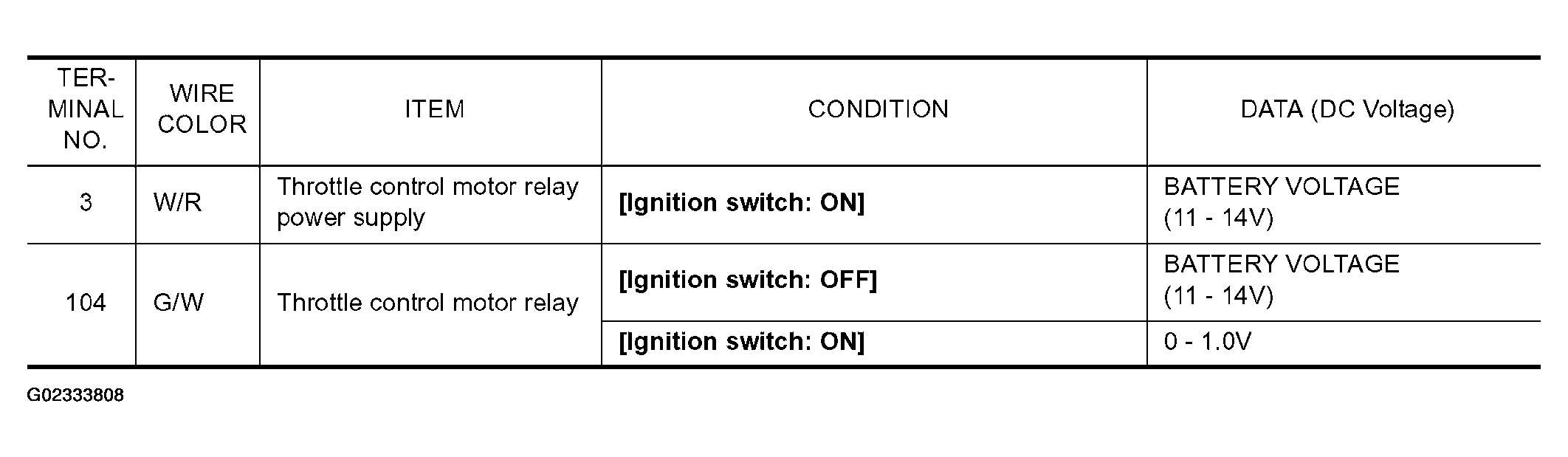

Fig 2: Terminal 3 & 104 Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
